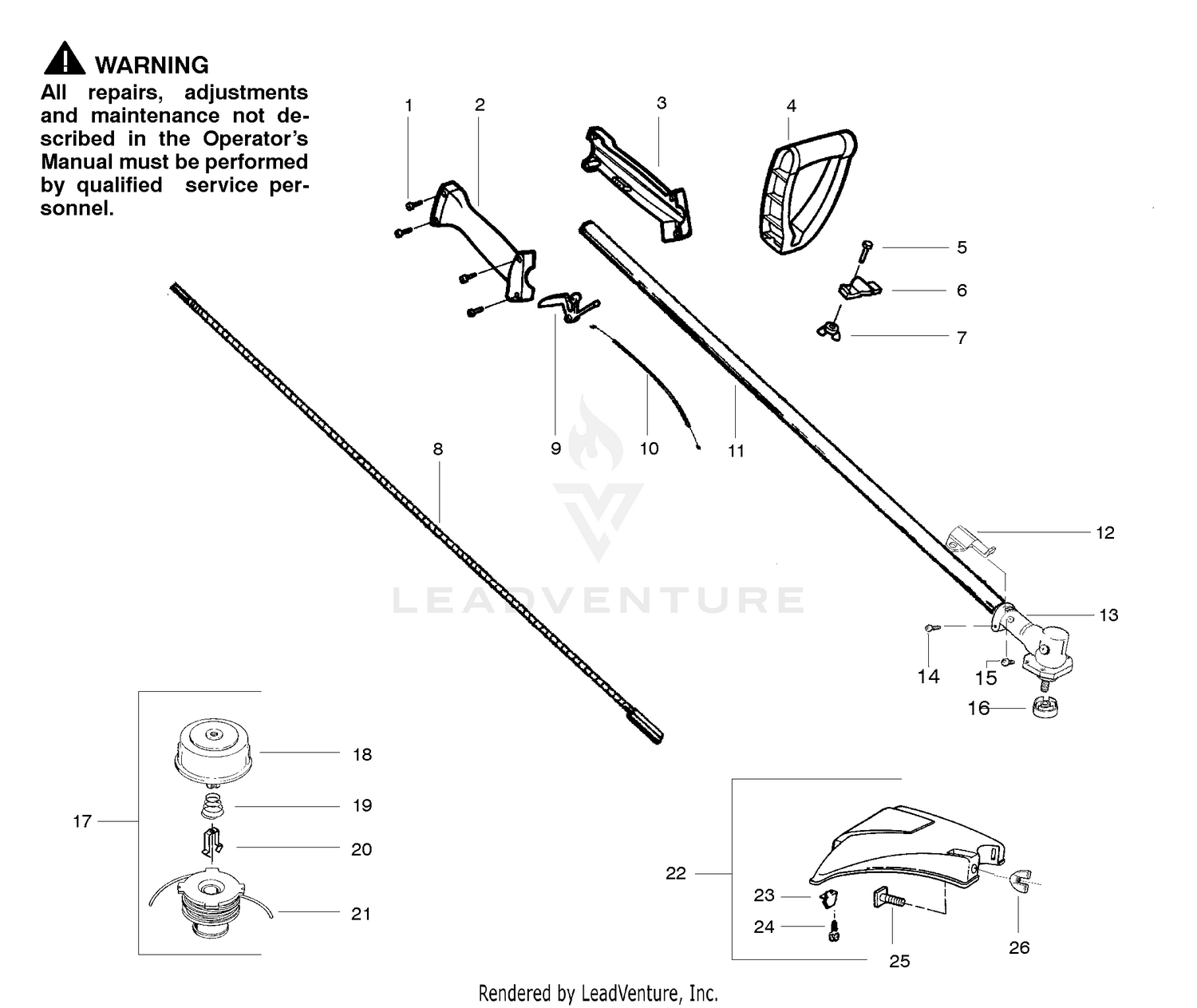

Handle, Chassis & Bar Assembly Type 6
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530016179 | Screw-Throttle Hsg. Price: $1.99 |
| 2 | 530054990 | Throttle Hsg. (Right) Price: $19.99 |
| 3 | 530054989 | Throttle Hsg. (Left) Price: $7.99 |
| 4 | 530055699 | Assy-Assist Handle This part replaces 530094673. Price: $11.99 |
| 5 | 530015820 | Bolt Price: $1.99 |
| 6 | 530094742 | Clamp-Handle Price: $2.99 |
| 7 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 8 | 530095982 | Shaft- Flex-52" Price: $11.99 |
| 9 | 530038682 | Trigger Price: $1.99 |
| 10 | 530055546 | Throttle Cable Ass'y. Price: $8.99 |
| 11 | 530071575 | Assy-Drive Shaft Price: $37.99 |
| 12 | 530095812 | Bracket Price: $1.99 |
| 13 | 530071584 | Kit-Gear Box Assy. Price: $49.99 |
| 14 | 530016014 | Screw Price: $1.99 |
| 15 | 530016301 | Screw Price: $1.99 |
| 16 | 530095814 | Dust Cup Price: $4.99 |
| 18 | 530095772 | Hub Ass'y. Price: $5.42 |
| 19 | 530053241 | Spring-Return Price: $1.99 |
| 20 | 530401957 | Retainer-Spool Price: $1.99 |
| 21 | 952711551 | Spool w/Line Price: $8.95 |
| 23 | 530052285 | Line Limiter Price: $1.99 |
| 24 | 530015805 | Screw-Line Limiter Price: $1.99 |
| 25 | 530015820 | Bolt Price: $1.99 |
| 26 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
