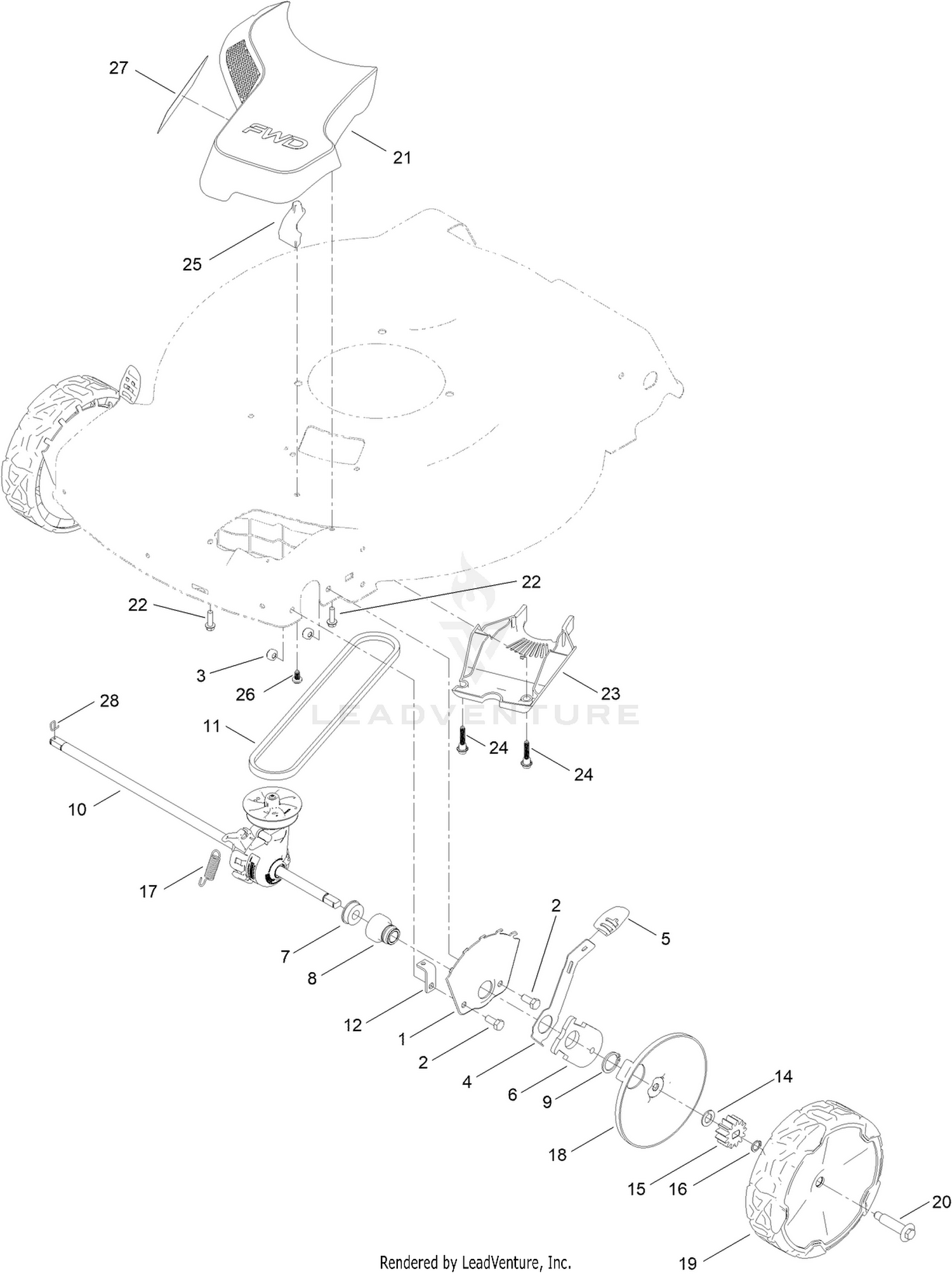

| Ref | Part Number | Description |
|---|
| 1 |
115-1956-05 |
PLATE-HOC,FRONT FSVQ WEDNESDAY Price: $9.99 |
| 2 |
322-3 |
SCREW-HH Price: $0.79 |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 4 |
105-1809 |
ARM-SPRING Price: $10.99 |
| 5 |
105-3042 |
KNOB-LEVER, HOC Price: $4.09 |
| 6 |
137-9128 |
ARM-PIVOT, FRONT Price: $6.79 |
| 7 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 8 |
131-0836 |
RETAINER-BEARING, HOC Price: $13.99 |
| 9 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 10 |
139-6562 |
TRANSMISSION-FWD Price: $97.99 |
| 11 |
117-1018 |
V-BELT Price: $16.99 |
| 12 |
144-6392 |
TAB-MOUNT, CABLE Price: $1.89 |
| 14 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 15 |
131-0896 |
GEAR-PINION, 13T Price: $6.49 |
| 16 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 17 |
145-3863 |
SPRING-EXTENSION Price: $1.29 |
| 18 |
140-2364 |
ASM-COVER, WHEEL (DK GRAY) Price: $6.49 |
| 19 |
140-2358 |
ASM-8" WHEEL, FWD (BUSHINGS) Price: $21.99 |
| 20 |
145-3899 |
WHEEL BOLT Price: $1.59 |
| 21 |
144-0215 |
ASM-INTAKE, FWD Price: $12.99 |
| 22 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 23 |
140-2389 |
COVER-BELT, LOWER (AWD) Price: $5.29 |
| 24 |
131-0837 |
SCREW-SHOULDER, HHF Price: $1.69 |
| 25 |
144-6371 |
PAD-STOP Price: $1.19 |
| 26 |
139-1679 |
SCREW-PLASTIC,PH Price: $0.89 |
| 27 |
140-4186 |
DECAL Price: $3.79 |
