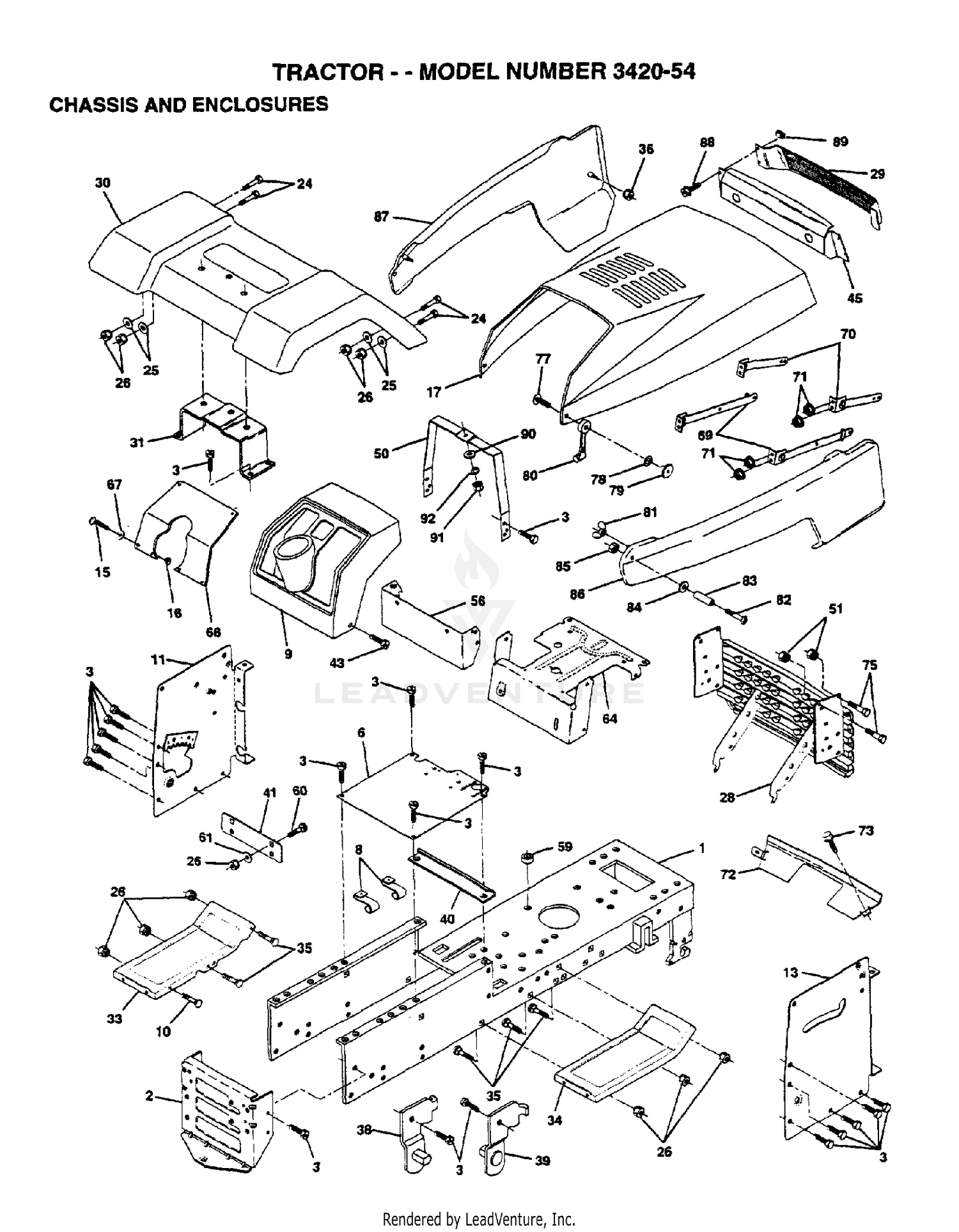

| Ref | Part Number | Description |
|---|
| 1 |
532135034 |
Chassis Wldmt 12 Ga 38/42 W/pvt (AYP part number) Price: $134.44 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 5 |
243035 |
Grommet Price: Call Us |
| 6 |
277058 |
Baffle, Bl. Hsg. Support Price: Call Us |
| 6 |
532145206 |
Saddle LT Fender Shift (AYP part number) Price: $15.92 |
| 7 |
4802704 |
Housing-Blower Price: Call Us |
| 8 |
4806308 |
Baffle-Side Cylinder #1 Price: Call Us |
| 8 |
532126471 |
CLIP,INSULATOR Price: $2.99 |
| 9 |
4806309 |
Baffle-Side Cylinder #2 Price: Call Us |
| 9 |
532140398 |
Dash Black Yard Pro (AYP part number) Price: $129.99 |
| 10 |
4806310 |
Baffle-Bottom Cylinder #1 Price: Call Us |
| 10 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 11 |
4806312 |
Baffle-Top Cylinder #1 Price: Call Us |
| 11 |
TBD |
Price: Call Us |
| 12 |
4806302 |
Baffle-Top Cylinder #2 Price: Call Us |
| 13 |
TBD |
Price: Call Us |
| 15 |
874180512 |
SCREW Price: $3.99 |
| 16 |
873310500 |
NUT Price: $3.99 |
| 24 |
874780616 |
BOLT Price: $3.99 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 28 |
532131716 |
Assembly, Grill Price: $98.01 |
| 29 |
532106395 |
Lens Headlight Bar Clear (AYP part number) Price: $55.81 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $7.99 |
| 35 |
872110606 |
BOLT Price: $2.99 |
| 36 |
532108067 |
PAL NUT LT Price: $3.10 |
| 38 |
532139886 |
BRACKET LH PIVOT Price: $5.99 |
| 39 |
532139887 |
BRACKET RH PIVOT Price: $5.99 |
| 40 |
532139977 |
Price: $5.46 |
| 41 |
532139978 |
PLATE Price: $3.99 |
| 45 |
532124392 |
Bezel, Assembly (AYP part number) Price: $109.99 |
| 50 |
532145205 |
Bracket, Support Dash (AYP part number) Price: $7.99 |
| 51 |
873680400 |
NUT.CROWNLOCK.1/4 Price: $2.99 |
| 59 |
532009151 |
Grommet (AYP part number) This part replaces 532110436. Price: $2.99 |
| 60 |
872140606 |
BOLT Price: $3.99 |
| 61 |
819171416 |
WASHER Price: $2.99 |
| 64 |
532150272 |
DASH LOWER LT This part replaces 532145095. Price: $17.99 |
| 67 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 69 |
532106784 |
Strap Asm Pnt Hinge Rear (blk) (AYP part number) Price: $82.19 |
| 70 |
532104618 |
Assembly, Strap, Hinge, Front (AYP part number) Price: $82.19 |
| 71 |
873640400 |
NUT.HEX.KEPS.1/4-20 Price: $2.99 |
| 73 |
817580408 |
Screw Tap Tite 1/4-20 x 1/2 (AYP part number) Price: $5.99 |
| 75 |
532007605 |
BOLT This part replaces 532123481. Price: $3.99 |
| 77 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $3.99 |
| 78 |
810071000 |
LOCKWASHER This part replaces 532001863. Price: $2.99 |
| 79 |
532002029 |
NUT.WELD.#10-24 (2 2) This part replaces 532124005. Price: $2.99 |
| 80 |
532109808 |
LATCH.HOOD. Price: $2.99 |
| 81 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 82 |
874981024 |
SCREW.PAN.HEAD This part replaces 532087175. Price: $5.99 |
| 84 |
819070816 |
Washer 7/32 x 1/2 x 16 Ga. (AYP part number) This part replaces 819070818. Price: $5.99 |
| 85 |
873271000 |
NUT This part replaces 532054509. Price: $2.99 |
| 88 |
817211010 |
Screw, Hex Washer Head Tapping #10-16 x 5/8 (AYP part number) Price: Call Us |
| 89 |
532104755 |
Fastener "j" (Use #10 Screw) (AYP part number) Price: $2.38 |
| 90 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 91 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 92 |
810040400 |
LOCKWASHER Price: $3.99 |
