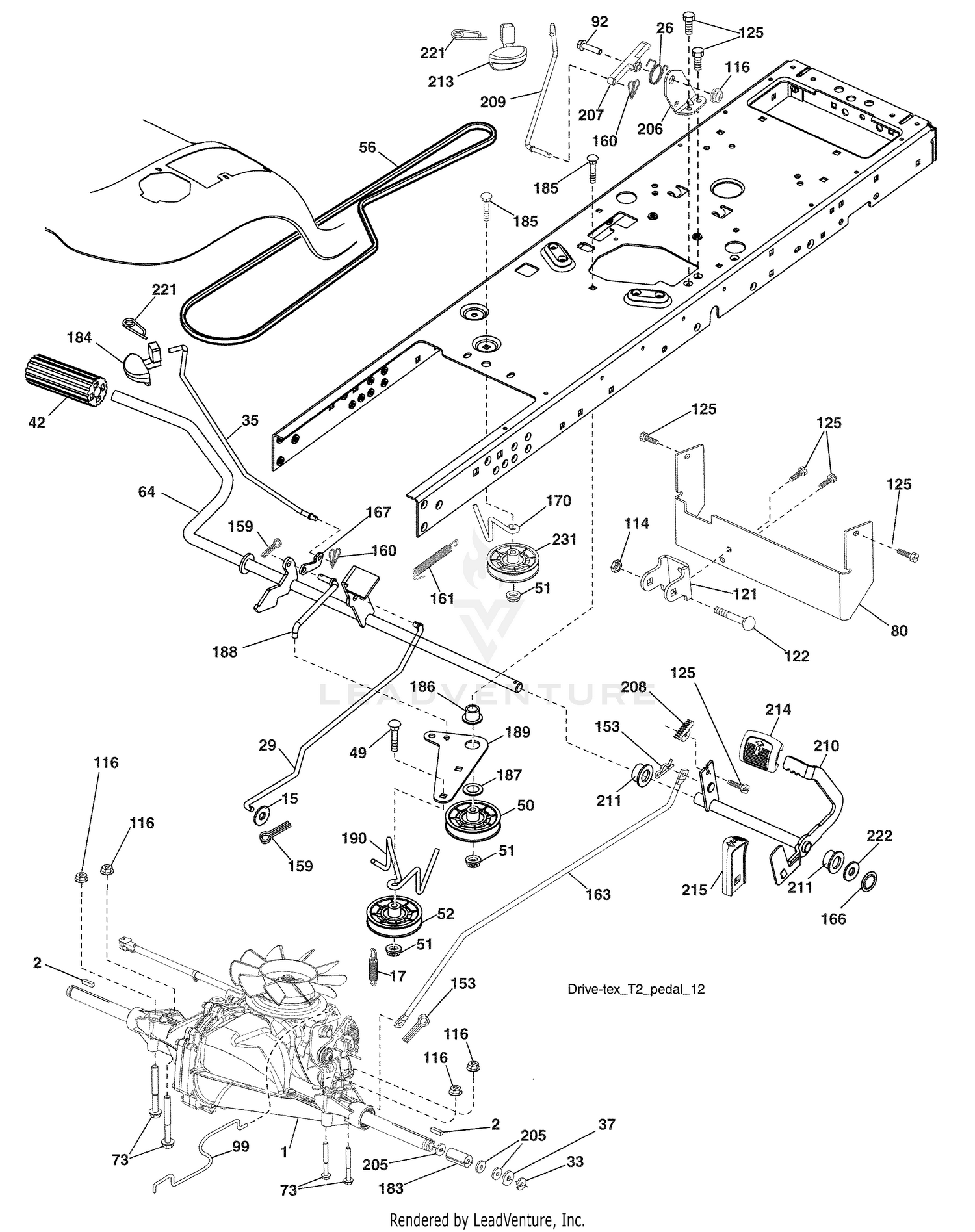

| Ref | Part Number | Description |
|---|
| 1 |
100-6571 |
HOOD ASM This part replaces 63-6950. Price: $1,342.17 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 3 |
63-7030-03 |
SCREEN-HOOD REAR This part replaces 63-7030. Price: $141.98 |
| 4 |
321-39 |
SCREW-HH Price: $0.42 |
| 5 |
63-7670 |
DISCONTINUED Price: Call Us |
| 6 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 7 |
66-8680 |
DISCONTINUED Price: Call Us |
| 8 |
66-8110 |
TRIM-HOOD Price: $4.91 |
| 9 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 10 |
63-6900-01 |
LH HOOD HINGE PLATE ASM This part replaces 63-6900. Price: $23.15 |
| 11 |
76-4790 |
PAD-RUBBER Price: $17.89 |
| 12 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 13 |
3274-32 |
SCREW-HSBH Price: $4.79 |
| 14 |
66-3040-03 |
COVER-BOX, TOOL This part replaces 66-3040. Price: $26.24 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
66-3050 |
DISCONTINUED Price: Call Us |
| 16 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 17 |
66-8880 |
DECAL - CAUTION (INSTR) Price: $23.35 |
| 18 |
72-4330 |
DISCONTINUED Price: Call Us |
| 19 |
66-2830 |
DISCONTINUED Price: Call Us |
| 20 |
63-7310 |
DISCONTINUED Price: Call Us |
| 21 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 22 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 23 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 24 |
321-4 |
SCREW-HH Price: $0.99 |
| 25 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 26 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 28 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 29 |
532423239 |
ROD.BRAKE.T2.TEX This part replaces 532408391. Price: $39.99 |
| 29 |
66-3200 |
TREAD-FOOTREST, LH Price: $7.38 |
| 30 |
66-3210 |
TREAD-FOOTREST, LH Price: $30.94 |
| 31 |
92-5540 |
TREAD-FOOTREST, RH This part replaces 66-3220. Price: $23.53 |
| 32 |
63-7320 |
DISCONTINUED Price: Call Us |
| 33 |
66-8760 |
DISCONTINUED Price: Call Us |
| 33 |
66-8770 |
DECAL-TOWER, RH Price: $40.20 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
53-4430 |
DECAL-OIL Price: $8.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 35 |
71-3110 |
FRAME ASM Price: $2,129.59 |
| 36 |
63-7330 |
DISCONTINUED Price: Call Us |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 37 |
62-5550 |
DECAL Price: $9.32 |
| 38 |
66-8890 |
DISCONTINUED Price: Call Us |
| 39 |
63-7300 |
DISCONTINUED Price: Call Us |
| 40 |
63-8050 |
BOX-CONTROL Price: $106.29 |
| 41 |
106-8095 |
DECAL-TOWER This part replaces 66-2470. Price: $48.49 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 42 |
63-6890-01 |
RH HOOD HINGE PLATE ASM This part replaces 63-6890. Price: $12.36 |
| 43 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 44 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 45 |
66-2870 |
CABLE-HOOD STOP Price: $27.51 |
| 46 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 47 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 48 |
3290-271 |
RIVET-POP Price: $0.25 |
| 49 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532125907 |
BELT Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 80 |
581550701 |
STRAP.TORQUE.T2 This part replaces 532408393. Price: $22.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532408418 |
ROD.ASM.BYPASS.SPRING.T2.FS Price: $7.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
594007201 |
Rods This part replaces 532413322. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 183 |
532156972 |
SPACER, AXLE PVST Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
