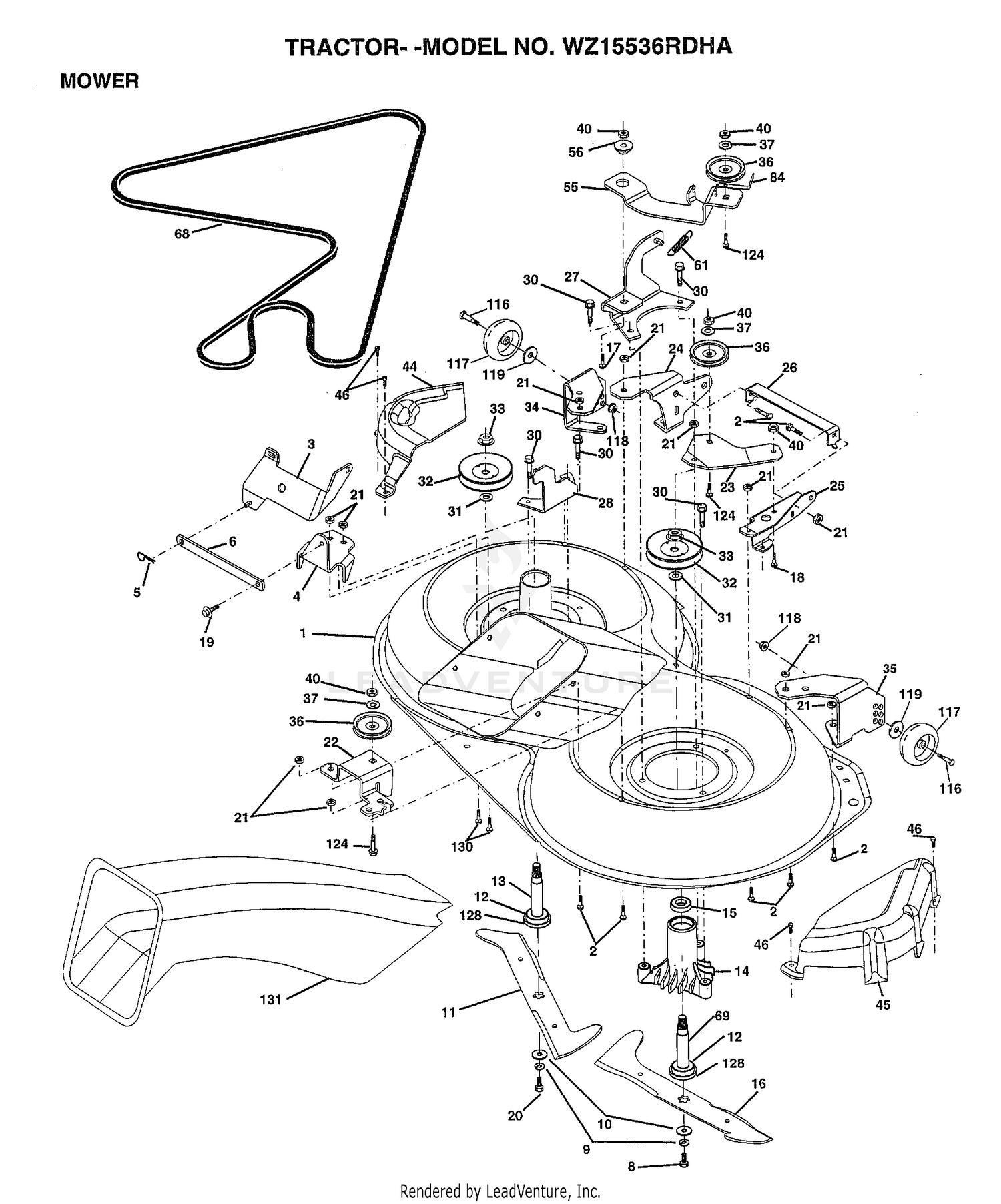

| Ref | Part Number | Description |
|---|
| 1 |
165552 |
HOUSING.ASM.MOWER Price: Call Us |
| 1 |
E9JL-8005-AA |
Radiator ASM Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
E2NN-8100-AA |
Cap-Radiator, 7 PSI Price: Call Us |
| 3 |
165569 |
BRKT.ASM.S-BAR.CHASSIS Price: Call Us |
| 3 |
8A-8115 |
Draincock Price: Call Us |
| 4 |
165558 |
BRKT.BAR.SWAY.DECK Price: Call Us |
| 4 |
383465-S101 |
Bolt-Radiator to Front Support Price: Call Us |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 5 |
7C-8125-A |
Insulator Price: Call Us |
| 6 |
165557 |
BAR.SWAY.92.CRD Price: Call Us |
| 6 |
3828367-S100 |
Washer-7/16 Flat Price: Call Us |
| 7 |
382400-S2 |
Nut-7/16-14 Price: Call Us |
| 8 |
588111-S2 |
Bolt-Carriage, 5/16-18 x 1.5 Price: Call Us |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
E9JL-10A370-AA |
Spacer-Brace to Radiator Price: Call Us |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
E9JL-8046-AA |
Brace-RH Price: Call Us |
| 11 |
165560 |
BLADE.3-1.LH.92.CRD Price: Call Us |
| 11 |
33770-S2 |
Nut-5/16-18 Price: Call Us |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
E8JL-5019-BA |
Support Price: Call Us |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
B7AZ-8287-C |
Clamp-Hose, 1.75 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
E9JL-8286-AA |
Hose-Water Pump, Inlet Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
E9JL-8286-AA |
Hose-Water Pump, Inlet Price: Call Us |
| 16 |
165561 |
BLADE.3-1.RH.CRD.92 Price: Call Us |
| 16 |
E5JL-8260-AA |
Hose-Radiator, Upper Price: Call Us |
| 17 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 17 |
D9AZ-8287-F |
Clamp-Hose, 2.25 Price: Call Us |
| 18 |
72110608 |
BOLT D Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 20 |
165484 |
BOLT.3/8-24X1.25 Price: Call Us |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
165243 |
BRKT.IDLER.SPRT.CRD Price: Call Us |
| 24 |
165242 |
BRKT.SUSP.LF.92.CRD Price: Call Us |
| 25 |
165244 |
BRKT.SUSP.RF.92.CRD Price: Call Us |
| 26 |
165237 |
BRACE.SUPT.SUSP.FRT.CRD Price: Call Us |
| 27 |
165568 |
BRKT.ASM.SUSP.RR.92.CRD Price: Call Us |
| 28 |
165567 |
BRKT.ASM.SUSP.LR.92.CRD Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
165239 |
BRKT.GUAGE.WHL.LF.92.CRD Price: Call Us |
| 35 |
165238 |
BRKT.GUAGE.WHL.RF.92.CRD Price: Call Us |
| 36 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 44 |
165724 |
COVER.MANDREL.LH.92.CRD Price: Call Us |
| 45 |
165556 |
COVER.MANDREL.RH.92.CRD Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 55 |
165445 |
ARM.IDLER.92.CRD Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 61 |
165945 |
SPRING.TENSION.BELT Price: Call Us |
| 68 |
165555 |
HEX-BELT.92.MWR.105AA Price: Call Us |
| 69 |
165482 |
SHAFT.ASM.W/LWR.BRG.RH.THD Price: Call Us |
| 116 |
137644 |
BOLT.SHOULDER Price: Call Us |
| 117 |
133957 |
WHEEL GAGE DONUT Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 124 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130 |
72110506 |
SUB= 72270506 Price: Call Us |
| 131 |
165661 |
CHUTE.BAGGER.CRD Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
| 165579 |
MANDREL.ASM.CRD.LH.THREADS |
Price: Call Us 165579 |
