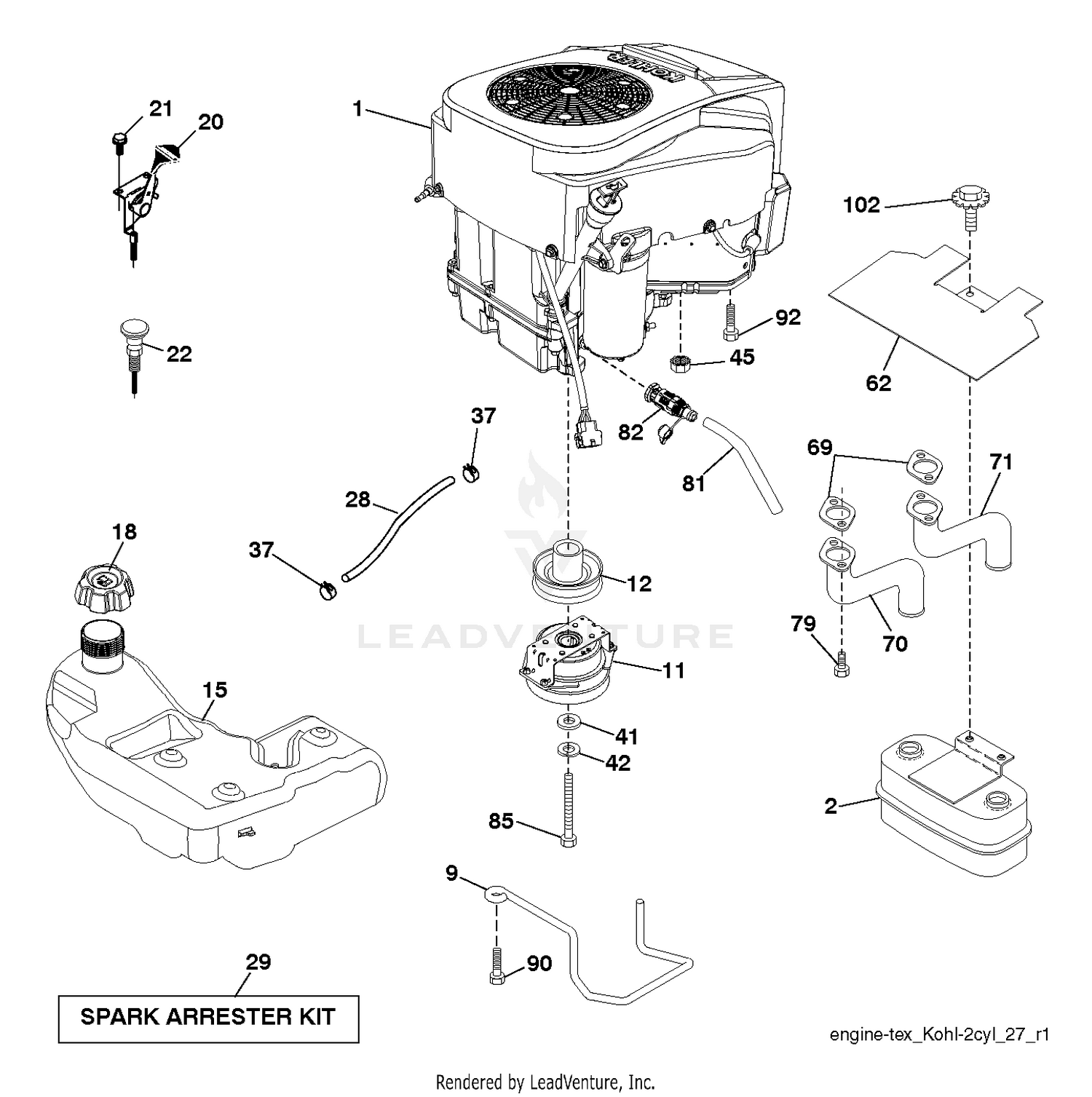

| Ref | Part Number | Description |
|---|
| 1 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 3 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 4 |
325-32 |
SCREW-HH Price: $5.77 |
| 5 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 8 |
71-2760 |
DECAL - HEIGHT-OF-CUT Price: $16.56 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
40-9520 |
SPACER Price: $0.33 |
| 11 |
40-0330 |
CUSHION-RUBBER Price: $8.08 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
68-8900-01 |
FRONT CASTOR FORK ASM This part replaces 68-8900. Price: $108.04 |
| 13 |
68-8960 |
TIRE Price: $63.99 |
| 14 |
325-19 |
SCREW-HH Price: $2.57 |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 15 |
68-8940 |
HUB-CENTER Price: $29.99 |
| 16 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 17 |
62-5580 |
BEARING-OUTSIDE Price: $6.58 |
| 18 |
302-61 |
FITTING-GREASE Price: $10.99 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 19 |
68-8950 |
TUBE-INNER (W/VALVE) Price: $26.99 |
| 20 |
68-8920 |
FEMALE WHEEL HALF Price: $14.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
68-8930 |
MALE WHEEL HALF Price: $14.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
62-5570 |
BEARING-ROLLER Price: $18.63 |
| 23 |
68-8980 |
SPANNER-TIRE Price: $8.72 |
| 24 |
3217-6 |
NUT-HEX Price: $1.19 |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
32153-5 |
NUT-HEX Price: $1.59 |
| 27 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 31 |
42-6200 |
SHIM-CUSHION Price: $9.09 |
| 32 |
32122-28 |
SCREW Price: $5.02 |
| 33 |
83-4520-01 |
REAR CRADLE ASM This part replaces 83-4520. Price: $83.82 |
| 34 |
32128-40 |
NUT-FLANGE Price: $0.88 |
| 35 |
66-9302 |
SCREW-HHF, WHIZ Price: $4.49 |
| 36 |
83-4580-01 |
SPACER-CRADLE This part replaces 83-4580. Price: $11.94 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
