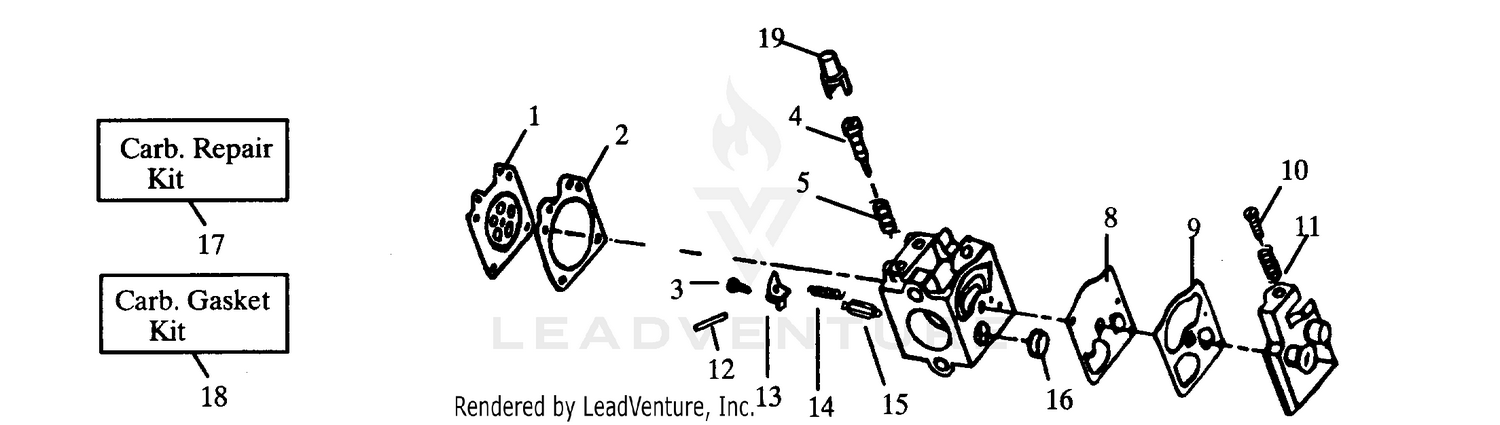

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 2 |
530035378 |
WT-141A - T 2 Price: $3.33 |
| 3 |
112-8942 |
FRONT GRASS SHIELD ASM Price: $44.08 |
| 3 |
530035016 |
Metering Lever Pin Screw Price: $2.99 |
| 4 |
125-1997 |
SHIELD-GRASS, REAR This part replaces 112-8944-01. Price: $68.52 |
| 4 |
530035268 |
WT-141 - T 1 Price: $7.99 |
| 4 |
530035375 |
WT-141A - T 2 Price: $2.60 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 5 |
530035293 |
Needle Spring-Low Speed This part replaces 530035214. Price: $1.99 |
| 5 |
530035376 |
WT-141A - T 2 Price: Call Us |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 7 |
110-1706 |
DEFLECTOR Price: $4.76 |
| 8 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 9 |
504130906 |
GASKET This part replaces 530035164. Price: $1.99 |
| 10 |
530035203 |
Idle Speed Screw Price: $5.99 |
| 11 |
501667801 |
Spring This part replaces 530035208. Price: $1.99 |
| 15 |
503117001 |
Needle This part replaces 530035106. Price: $7.99 |
| 16 |
530035178 |
Fuel Inlet Screen Price: $1.99 |
| 17 |
530035264 |
Carb. Kwik Repair Kit Price: $22.99 |
| 18 |
530069844 |
Gasket Diaphragm Kit This part replaces 530035219. Price: $11.99 |
