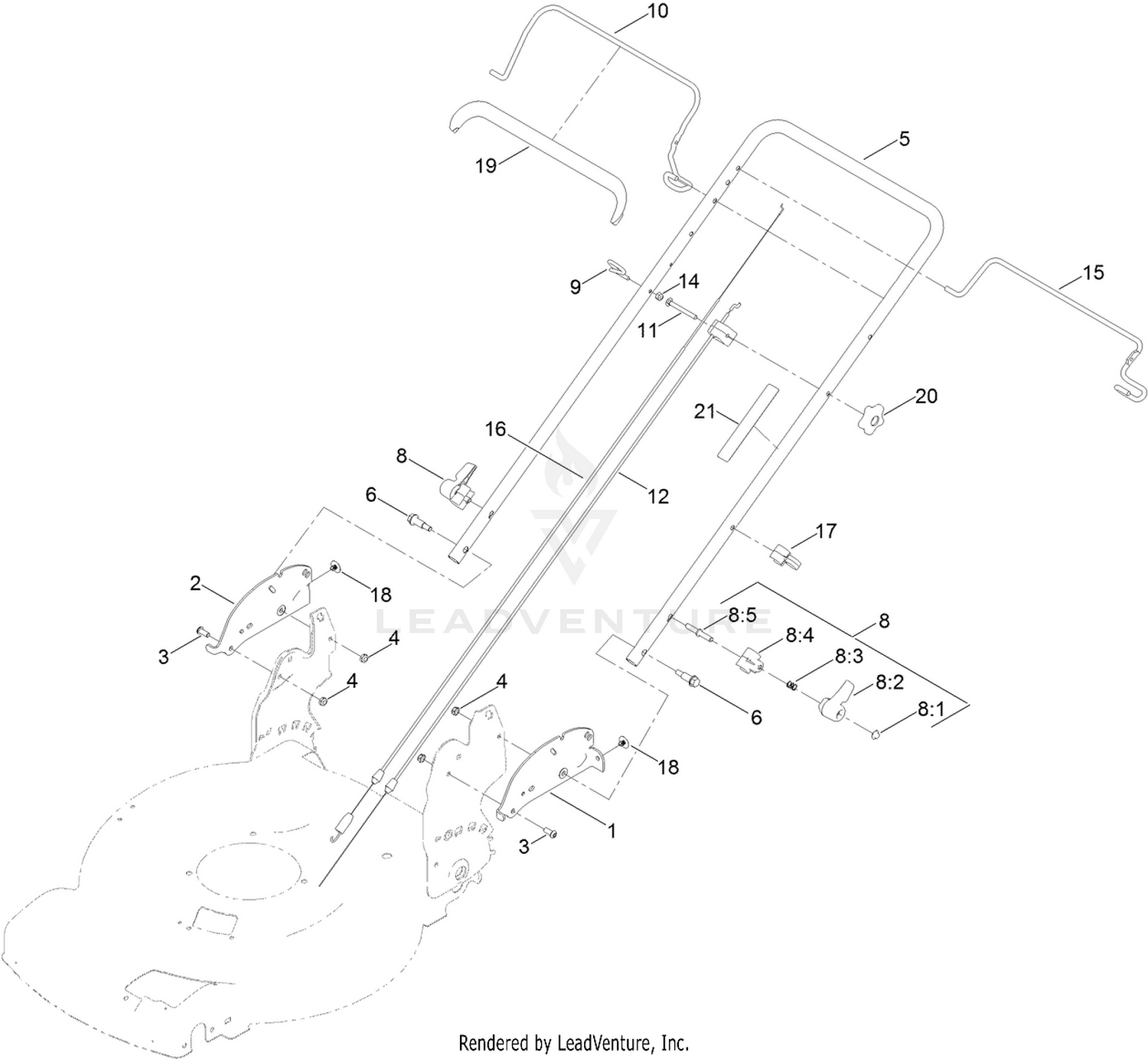

Handle Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-4492-03 | PLATE-HANDLE, LH Price: $11.38 |
| 2 | 132-4493-03 | PLATE-HANDLE, RH Price: $11.38 |
| 3 | 3274-55 | SCREW-HSBH Price: $3.19 |
| 4 | 3296-47 | NUT-LOCK, NI Price: $3.59 |
| 5 | 131-4569-05 | HANDLE Price: $33.01 |
| 6 | 130-2344 | BOLT-SHOULDER Price: $1.88 |
| 8 | 138-3249 | QUICK RELEASE ASM This part replaces 115-2860. Price: $7.22 |
| 9 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 10 | 138-3269-03 | BAIL-BRAKE Price: $9.61 |
| 11 | 136-7082 | SCREW-CARR Price: $0.64 |
| 12 | 133-8109 | CABLE-BRAKE, HP Price: $17.76 |
| 14 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 15 | 131-0835-03 | BAIL-TRACTION Price: $10.21 |
| 16 | 119-2379 | CABLE-TRACTION Price: $22.32 |
| 17 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 18 | 130-6721 | CLIP-TREE Price: $0.43 |
| 19 | 127-6847 | COVER-BAIL Price: $2.75 |
| 20 | 131-0897 | KNOB-HANDLE, LOCKING Price: $2.75 |
