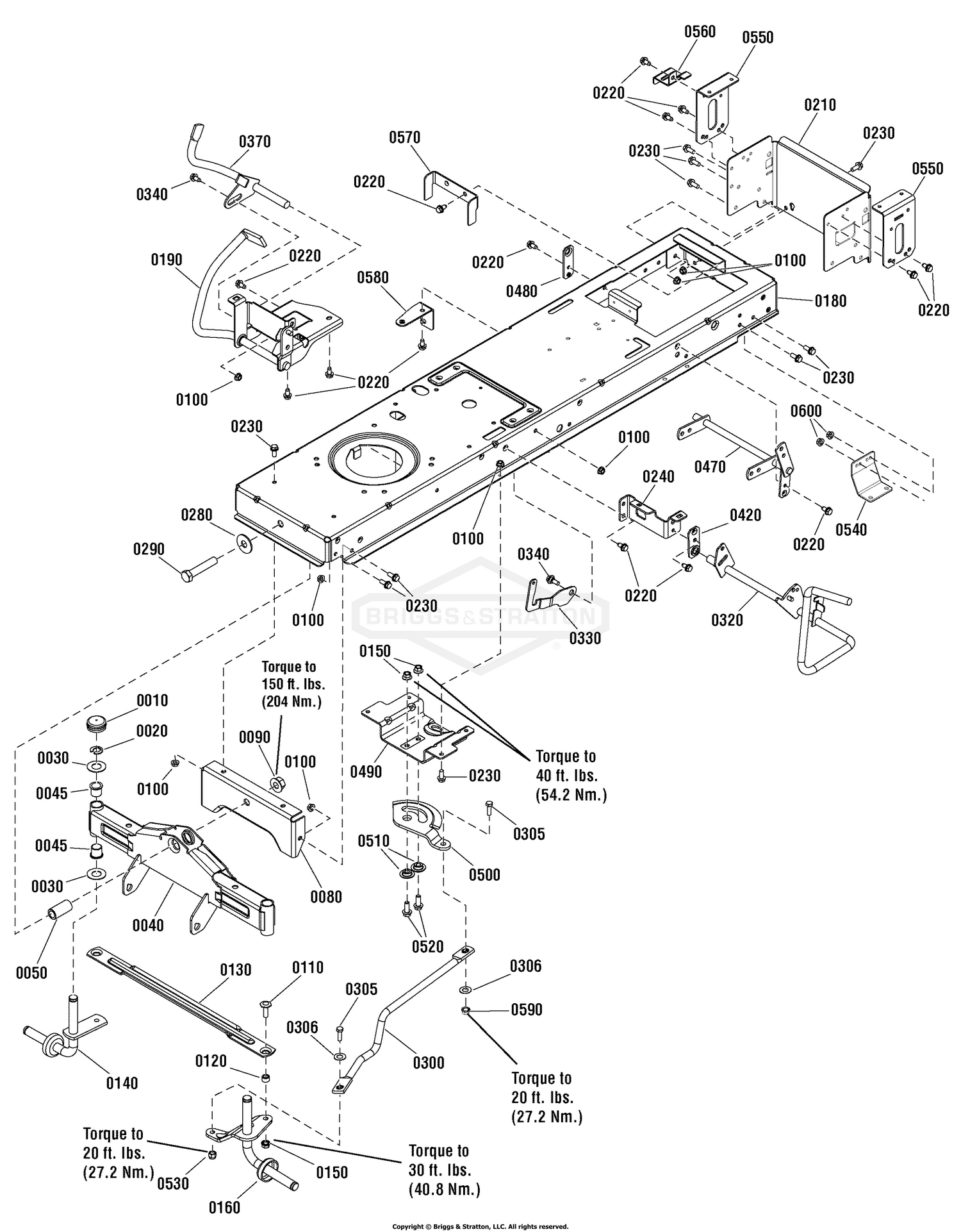

| Ref | Part Number | Description |
|---|
| 0010 |
094618MA |
HUB CAP This part replaces 721318. Price: $5.00 |
| 0020 |
0011X3MA |
RING, E .750D .050T This part replaces 720010. Price: $4.92 |
| 0030 |
17X195MA |
WASHER, .765 ID, 1.8 OD, .0598 Thk, Flat ZP This part replaces 722620. Price: $4.26 |
| 0040 |
1751899YP |
AXLE ASSEMBLY This part replaces 1751899. Price: $99.99 |
| 0045 |
2176440SM |
BUSHING-0.765IDX This part replaces 2176440. Price: $4.36 |
| 0050 |
1738193YP |
SPACER, .641 ID X.980 0D X 2.0 Long This part replaces 1738193. Price: $5.82 |
| 0080 |
1727902SM |
PLATE, Axle Support This part replaces 1727902. Price: $39.47 |
| 0090 |
2860646SM |
NUT, Hex Flange, 5/8-11 This part replaces 2860646. Price: $9.09 |
| 0100 |
703409 |
NUT, 5/16-18, GR5 This part replaces 1931277. Price: $4.92 |
| 0110 |
1960032SM |
SCREW, Hex Head, 3/8-16 x 1 1/4 This part replaces 1960032. Price: $4.70 |
| 0120 |
1611705SM |
SPACER-0.385IDX0 This part replaces 1611705. Price: $3.85 |
| 0130 |
1751964BMYP |
ROD, Tie This part replaces 1751964. Price: $30.61 |
| 0140 |
1727872ASM |
SPINDLE & CUP ASSEMBLY, R.H. This part replaces 1727872A. Price: $91.15 |
| 0150 |
1930645 |
NUT, Hex Flange, Two Way Lock, 3/8-16 Price: Call Us |
| 0160 |
1751922YP |
WHEEL SPINDLE ASSEMBLY, LH This part replaces 1751922. Price: $89.94 |
| 0180 |
1750275YP |
FRAME This part replaces 1750275. Price: $194.99 |
| 0190 |
1750606YP |
PEDAL, Forward This part replaces 1750606. Price: $47.99 |
| 0210 |
1750989YP |
SUPPORT, Frame, Rear This part replaces 1750989. Price: $31.02 |
| 0220 |
703949 |
SCREW, 5/16-18.625 This part replaces 1930601. Price: $3.40 |
| 0230 |
703354 |
SCREW, 5/16-18 This part replaces 1930591. Price: $4.70 |
| 0240 |
1750795YP |
SUPPORT, Foot Rest, LH This part replaces 1750795. Price: $18.29 |
| 0280 |
1960035SM |
WASHER-0.625(0.64IDX1 This part replaces 1960035. Price: $3.72 |
| 0290 |
2860744SM |
CAPSCREW, Hex Head, 5/8-11 x 3 1/4 This part replaces 2860744. Price: $7.55 |
| 0300 |
1738051YP |
LINK, Drag This part replaces 1738051. Price: $56.13 |
| 0305 |
1921977 |
CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5 Price: Call Us |
| 0306 |
703302 |
WASHER, 5/16 This part replaces 1924874. Price: $3.82 |
| 0320 |
1750608YP |
BRAKE PEDAL This part replaces 1750608. Price: $54.99 |
| 0330 |
1735595ASM |
LATCH, Brake Lock This part replaces 1735595. Price: $9.30 |
| 0340 |
1752802YP |
BOLT, SHLDR, 5/16-18 Price: $5.00 |
| 0370 |
1751551YP |
PEDAL ASSEMBLY, Reverse This part replaces 1751551. Price: $20.49 |
| 0420 |
1727911ASM |
PLATE, Bearing This part replaces 1727911A. Price: $11.40 |
| 0470 |
1750767YP |
LIFT SHAFT ASSEMBLY This part replaces 1750767. Price: $34.99 |
| 0480 |
1750798YP |
PLATE, Bearing This part replaces 1750798. Price: $5.89 |
| 0490 |
1727940SM |
BRACKET, Sector Support This part replaces 1727940. Price: $30.99 |
| 0500 |
1751110YP |
GEAR, Steering This part replaces 1751110. Price: $31.79 |
| 0510 |
1728122SM |
SPACER, Sector Gear This part replaces 1728122. Price: $5.09 |
| 0520 |
704038 |
SCREW This part replaces 1934654. Price: $5.26 |
| 0530 |
1930645 |
NUT, Hex Flange, Two Way Lock, 3/8-16 Price: Call Us |
| 0540 |
1739792YP |
SUPPORT, Transmission This part replaces 1739792. Price: $17.39 |
| 0550 |
1752218YP |
SUPPORT, Seat Deck This part replaces 1752218. Price: $18.99 |
| 0560 |
1751160YP |
SUPPORT, MPTO Switch This part replaces 1751160. Price: $16.19 |
| 0570 |
1750169YP |
GUIDE, Belt This part replaces 1750169. Price: $14.79 |
| 0580 |
1750784YP |
BRACKET, Cable This part replaces 1750784. Price: $7.39 |
| 0590 |
704067 |
NUT, HEX FLNG,5/16-18 This part replaces 1935048. Price: $3.17 |
