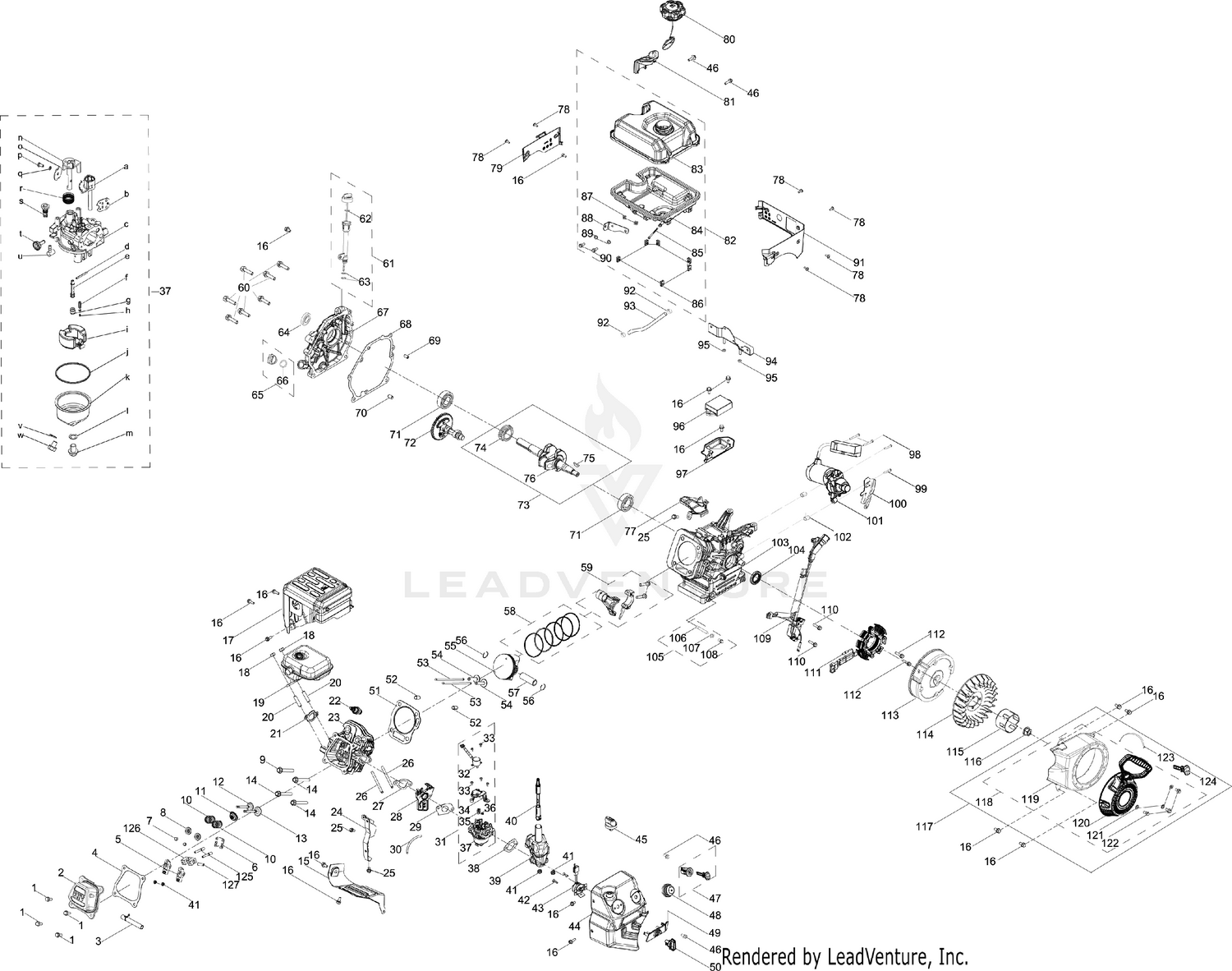

875-WU General Assembly
Parts (150)
| Ref | Part Number | Description |
|---|---|---|
| a | None | Choke Shaft |
| b | None | Choke Plate |
| c | None | Carburetor Body |
| d | 711P06053A | FLOAT PIN Price: $2.45 |
| e | None | Nozzle Tube |
| f | None | Needle Valve |
| g | 993-00117 | ORIFICE SCREW M7-.75 Not Available Price: |
| h | 732P05138A | NEEDLE VALVE SPRING Price: $2.63 |
| i | 731P09861A | FLOAT Price: $3.68 |
| j | 951-11589A | FUEL BOWL O-RING Price: $6.04 |
| k | 608P05002 | FUEL BOWL Price: $4.92 |
| l | 951-11348A | FUEL BOWL GASKET Price: $5.07 |
| m | 710-04945 | BOLT M8-1 x 10 Price: $3.66 |
| n | 711P06814 | THROTTLE SHAFT Price: $2.45 |
| o | 708P05018 | THROTTLE PLATE Price: $2.45 |
| p | 710-09494A | SCREW M3 X 6 Price: $2.63 |
| q | 736-04638A | LOCK WASHER Price: $2.88 |
| r | None | Throttle Shaft Spring |
| s | None | Idle Jet |
| t | None | Idle Adjusting Screw |
| u | 951-12019A | PRIMER HOSE Price: $6.17 |
| v | 951-11349A | FUEL DRAIN PLUG GASKET Price: $3.66 |
| w | 710-04938 | FUEL DRAIN PLUG Price: $3.66 |
| 1 | 710-04968 | BOLT M6 x 16 Price: $5.77 |
| 2 | 908-05028 | VALVE COVER Price: $29.26 |
| 3 | 951-15045 | BREATHER HOSE Price: $5.68 |
| 4 | 921-04673 | VALVE COVER GASKET Price: $7.81 |
| 5 | 951-15533 | ROCKER ARM ASSEMBLY Price: $11.42 |
| 6 | 908-05066 | PUSH ROD GUIDE Price: $7.04 |
| 7 | 751P12002A | EXHAUST VALVE ADJUSTER Price: $2.36 |
| 8 | 751P12003A | EXHAUST VALVE SPRING RETAINER Price: $2.15 |
| 9 | 710-06291 | BOLT M10-1.25 x 70 Price: $4.31 |
| 10 | 751P12004A | VALVE SPRING Price: $1.74 |
| 11 | 751P11894A | INTAKE VALVE SEAL Price: $2.40 |
| 12 | 751P14100A | EXHAUST VALVE Price: $3.43 |
| 13 | 751P14099A | INTAKE VALVE Price: $3.53 |
| 14 | 710-06065 | SCREW M10-1.25 x 65 x GR10.9 Price: $5.53 |
| 15 | 951-11113 | AIR SHIELD Price: $8.11 |
| 16 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 17 | 951-15155A | MUFFLER GUARD Price: $49.25 |
| 18 | 712-04214 | NUT Price: $3.86 |
| 19 | 751P22645 | MUFFLER Price: $13.66 |
| 20 | 910-06299 | STUD Price: $4.09 |
| 21 | 751P11289A | MUFFLER GASKET Price: $1.96 |
| 22 | 951-10292A | SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35 |
| 23 | 919-05073 | CYLINDER HEAD (Bare) Price: $87.81 |
| 24 | 951-15185 | SNOW GUARD Price: $10.96 |
| 25 | 710-05103 | BOLT M6-1 x 12 GR8.8 Price: $3.52 |
| 26 | 951-15580 | STUD M6 x 90 Price: $5.25 |
| 27 | 751P11567B | CARBURETOR INSULATOR GASKET Price: $1.73 |
| 28 | 951-15160 | INSULATOR Price: $6.37 |
| 29 | 751P12005B | CARBURETOR GASKET This part replaces 751P12005A. Price: $4.89 |
| 30 | 935-05038 | PRIMER HOSE Price: $11.24 |
| 31 | 751P22647 | CARBURETOR Assembly Price: $48.98 |
| 32 | 725P12065 | THROTTLE MOTOR Price: $21.62 |
| 33 | 751-22625 | SCREW M4x8 Price: $1.70 |
| 34 | 751P22627 | MOTOR BASE Price: $4.55 |
| 35 | 731P19432 | CARBURETOR DAMPER Price: $5.29 |
| 36 | 732P06906 | DAMPER SPRING Price: $3.95 |
| 37 | 751P22648 | CARBURETOR Price: $52.98 |
| 38 | 751P11897B | CARBURETOR GASKET Price: $1.61 |
| 39 | 951-15186A | AIR/HEATER INTAKE BOX Price: $9.53 |
| 40 | 751P18086 | CHOKE LEVER Price: $5.06 |
| 41 | 712-05015 | HEX NUT Price: $5.78 |
| 42 | 751-20216 | SCREW Price: $2.45 |
| 43 | 751P22653 | SPEED CONTROL SWITCH Price: $11.96 |
| 44 | 951-15164A | CONTROL PANEL Price: $22.36 |
| 45 | 951-15450A | CHOKE KNOB Price: $6.35 |
| 46 | 710-05003A | BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11 |
| 47 | 951-15022A | ENGINE KEY SWITCH ASSEMBLY Price: $9.61 |
| 48 | 951-10639B | PRIMER Price: $13.84 |
| 49 | 751P22659 | SPEED KNOB COVER Price: $3.40 |
| 50 | 751P22629 | SPEED CONTROL KNOB Price: $2.27 |
| 51 | 921-04674 | CYLINDER HEAD GASKET Price: $11.64 |
| 52 | NOT | SERVICEABLE Not Serviceable Price: Call Us NOT SERVICEABLE |
| 53 | 951-14370 | PUSH ROD (SINGLE) Price: $6.50 |
| 54 | 951-14470 | TAPPET Price: $9.35 |
| 55 | 919-05074 | PISTON Price: $33.37 |
| 56 | 951-11632A | PISTON PIN SNAP RING Price: $3.53 |
| 57 | 751P11633A | PISTON PIN Price: $1.53 |
| 58 | 951-14471A | PISTON RING SET 75MM Price: $20.34 |
| 59 | 751P11573A | CONNECTING ROD Price: $8.87 |
| 60 | 751-22660 | BOLT M8x32 Price: $1.70 |
| 61 | 951-05020C | DIPSTICK ASSEMBLY This part replaces 951-05020B. Price: $13.22 |
| 62 | 921-04663A | O-RING Price: $5.05 |
| 63 | 951-12397 | OIL FILL TUBE O-RING Price: $4.39 |
| 64 | 751P11368A | OIL SEAL Price: $2.70 |
| 65 | 931-09966A | OIL PLUG Price: $4.81 |
| 66 | 951-11577A | O-RING 15.8 x 2.5 Price: $2.86 |
| 67 | 751P17706 | CRANKCASE COVER This part replaces 751-17706. Price: $29.04 |
| 68 | 751P11371B | CRANKCASE GASKET Price: $3.07 |
| 69 | 715-04092A | DOWEL PIN 7 X 14 Price: $2.97 |
| 70 | 715-04096A | DOWEL PIN 9 X 14 Price: $3.66 |
| 71 | 951-15055 | BALL BEARING Price: $15.43 |
| 72 | 951-05058 | CAMSHAFT Price: $59.12 |
| 73 | 651P08766 | CRANKSHAFT Price: $50.13 |
| 74 | 751P22699 | TIMING GEAR Price: $5.68 |
| 75 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 76 | 751-22701 | Crankshaft Price: Call Us |
| 77 | 751P22702 | SHROUD Price: $4.55 |
| 78 | 751-22263 | Bolt, M5X14 Price: $1.70 |
| 79 | 951-15191A | FUEL TANK SHROUD (REAR) Price: $5.16 |
| 80 | 951-15172A | FUEL CAP This part replaces 951-15172. Price: $15.87 |
| 81 | 951-15170A | COVER Price: $5.16 |
| 82 | 951-15173A | FUEL TANK Price: $119.15 |
| 83 | NSOCA | Not Serviceable/ Order Complete Assembly Price: Call Us |
| 84 | NSOCA | Not Serviceable/ Order Complete Assembly Price: Call Us |
| 85 | 951-12296A | FUEL FILTER Price: $8.68 |
| 86 | 951-15578A | FUEL TANK MOUNT Price: $3.46 |
| 87 | 712-05186 | NUT M6 Price: $3.96 |
| 88 | 951-15577 | FUEL TANK MOUNT TAB Price: $4.09 |
| 89 | 736-05197 | WASHER 6.5 x 1.5 x 12 Price: $3.96 |
| 90 | 710-06567 | BOLT M6 x 20 Price: $3.56 |
| 91 | 951-15231A | FUEL TANK SHROUD (LH) Price: $5.16 |
| 92 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 93 | 951-15169A | FUEL HOSE Price: $19.46 |
| 94 | 951-15174 | FUEL TANK BRACKET Price: $10.04 |
| 95 | 712-05015 | HEX NUT Price: $5.78 |
| 96 | 751P22876 | E-GOV ECM This part replaces 751P22623. Price: $45.57 |
| 97 | 751P22705 | SWITCH BOX BASE Price: $5.12 |
| 98 | 751-15472 | SCREW Price: $4.29 |
| 99 | 710-05182 | BOLT M6-1 x 32 GR8.8 Price: $3.61 |
| 100 | 751P16487 | LOWER HOUSING Price: $2.40 |
| 101 | 951-15229 | ELECTRIC STARTER Price: $322.76 |
| 102 | 715-04088A | DOWEL PIN Price: $2.97 |
| 103 | 751P22707 | CRANKCASE Price: $107.10 |
| 104 | 751P11370A | OIL SEAL Price: $2.23 |
| 105 | 751P19228A | OIL DRAIN PIPE Price: $12.19 |
| 106 | 951-11350A | OIL DRAIN PIPE Price: $7.05 |
| 107 | 736-04440A | FLAT WASHER Price: $6.01 |
| 108 | 710-04906 | OIL DRAIN PLUG Price: $5.86 |
| 109 | 751P22708 | IGNITION MODULE Price: $19.93 |
| 110 | 710-04919 | BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 111 | 751P22636 | CHARGING COIL Price: $37.59 |
| 112 | 710-04943 | BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 113 | 751P22709 | FLYWHEEL Price: $70.64 |
| 114 | 951-15025 | COOLING FAN Price: $21.69 |
| 115 | 951-14887 | STARTER CUP Price: $12.71 |
| 116 | 712-04287A | FLYWHEEL NUT M14-1.5 Price: $5.33 |
| 117 | NSCO | Not Serviceable/ Components Only Price: Call Us |
| 118 | 951-05442A | RECOIL STARTER Price: $57.94 |
| 119 | 951-15228 | BLOWER HOUSING Price: $39.39 |
| 120 | 951-15538A | RECOIL STARTER Price: $62.29 |
| 121 | 736-04455B | FLAT WASHER Price: $5.94 |
| 122 | 710-06354 | BOLT M6 x 10 Price: $5.73 |
| 123 | 725-06031A | CABLE TIE 3x150 Price: $2.04 |
| 124 | 951-10630 | IGNITION KEY Price: $6.07 |
| 125 | 910-06092 | PIVOT BOLT Price: $5.38 |
| 126 | 951-14373 | ROCKER ARM PIVOT BLOCK Price: $20.65 |
| 127 | 911-06214 | ROCKER ARM SHAFT Price: $4.34 |
