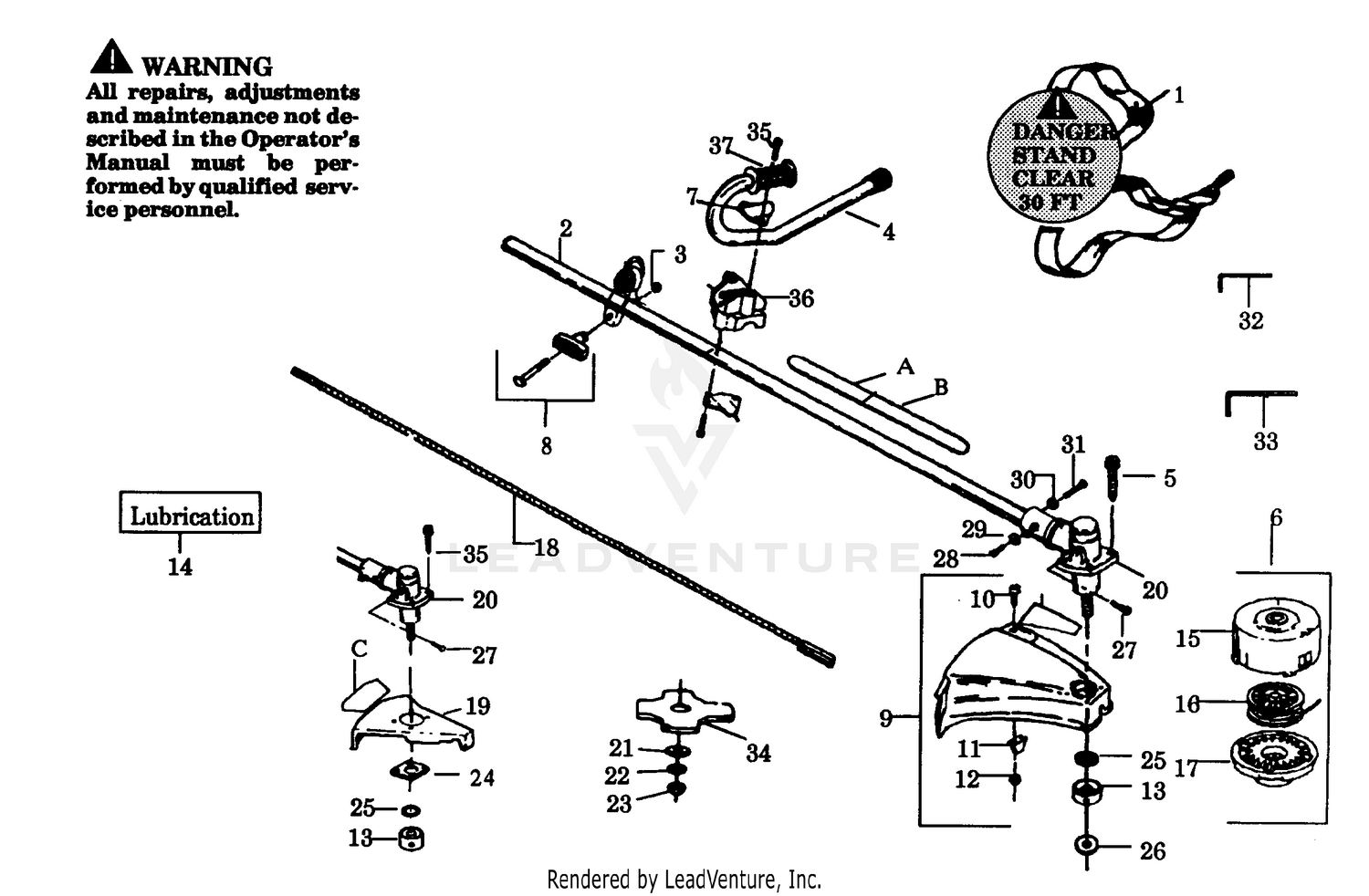

| Ref | Part Number | Description |
|---|
| A |
530027432 |
Safety Label (Upper) Price: $3.33 |
| B |
530027433 |
Safety Label (Lower) Price: $3.33 |
| 1 |
23-9960 |
DISCONTINUED-MODEL 30750 Price: Call Us |
| 1 |
530094417 |
Shoulder Strap Price: $20.65 |
| 2 |
530094626 |
Drive Shaft Housing Price: $3.33 |
| 2 |
66-6140 |
DECAL This part replaces 18-2180. Price: $25.48 |
| 3 |
107-3039 |
PIN-LYNCH This part replaces 3290-243. Price: $6.96 |
| 3 |
530015197 |
Nut Price: $1.99 |
| 4 |
20-4370 |
SPACER-TUBULAR Price: $24.90 |
| 4 |
530010723 |
Handlebar Price: $6.68 |
| 5 |
325-6 |
SCREW-HH Price: $1.42 |
| 5 |
530016107 |
Screw This part replaces 530015790. Price: $1.99 |
| 6 |
3218-5 |
NUT-JAM Price: $0.27 |
| 6 |
952701608 |
Cutting Head Ass'y. (Inc.15,16,17) Price: $1.00 |
| 7 |
24-5570-01 |
SCRAPER BLADE This part replaces 24-5570. Price: $242.66 |
| 7 |
530094572 |
Handlebar Bracket Price: $1.99 |
| 8 |
24-5540-01 |
SKID WA This part replaces 24-5540. Price: $257.95 |
| 8 |
530069347 |
HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 9 |
3217-9 |
NUT-HH Price: $0.37 |
| 9 |
530069256 |
Shield Kit Ass'y. (Inc.10,11,12) Price: $9.99 |
| 10 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 10 |
530015037 |
Screw Price: $1.99 |
| 11 |
3233-2 |
SCREW-CARR Price: $1.49 |
| 11 |
530094570 |
Line Limiter Price: $1.99 |
| 12 |
530403094 |
Nut This part replaces 530015217. Price: $1.99 |
| 13 |
530094639 |
Dust Cup Price: $7.99 |
| 14 |
952708514 |
LUBE, FLEX SHAFT NLA This part replaces 530030102. Price: Call Us |
| 15 |
952711550 |
Accy--Cutting Head This part replaces 530094557. Price: $18.95 |
| 16 |
952701589 |
Spool w/Line Price: $5.95 |
| 17 |
530094494 |
Cover Price: $4.99 |
| 18 |
530094585 |
Drive Shaft Price: $19.99 |
| 19 |
530094633 |
SHIELD This part replaces 530094627. Price: $22.99 |
| 20 |
530071781 |
GEAR BOX REPLACEMENT KIT This part replaces 530094568. Price: $74.99 |
| 21 |
530015792 |
Washer Price: $1.99 |
| 22 |
530016240 |
Washer--Belleville This part replaces 530015492. Price: $1.99 |
| 23 |
530093748 |
Nut 3/8 Price: $2.99 |
| 24 |
530027615 |
Shield Retention Plate Price: $3.99 |
| 25 |
530094640 |
Seal Price: $6.94 |
| 26 |
530094571 |
Grass Washer Price: $1.99 |
| 27 |
530094616 |
Screw Price: Call Us |
| 28 |
530094612 |
Screw Price: $0.99 |
| 29 |
530015328 |
Lockwasher Price: $1.99 |
| 30 |
530001677 |
Lockwasher Price: $0.04 |
| 31 |
530001711 |
Screw Price: $1.99 |
| 32 |
530031159 |
Hex Wrench (5/32) This part replaces 530031111. Price: $1.99 |
| 33 |
530031098 |
Hex Wrench (3/16) Price: $0.99 |
| 34 |
952701611 |
Weed Blade Price: $26.19 |
| 35 |
530015791 |
Screw Price: $1.99 |
| 36 |
530012207 |
Handlebar Clamp Price: $8.99 |
| 37 |
530092086 |
Handlebar Grip Price: $4.99 |
