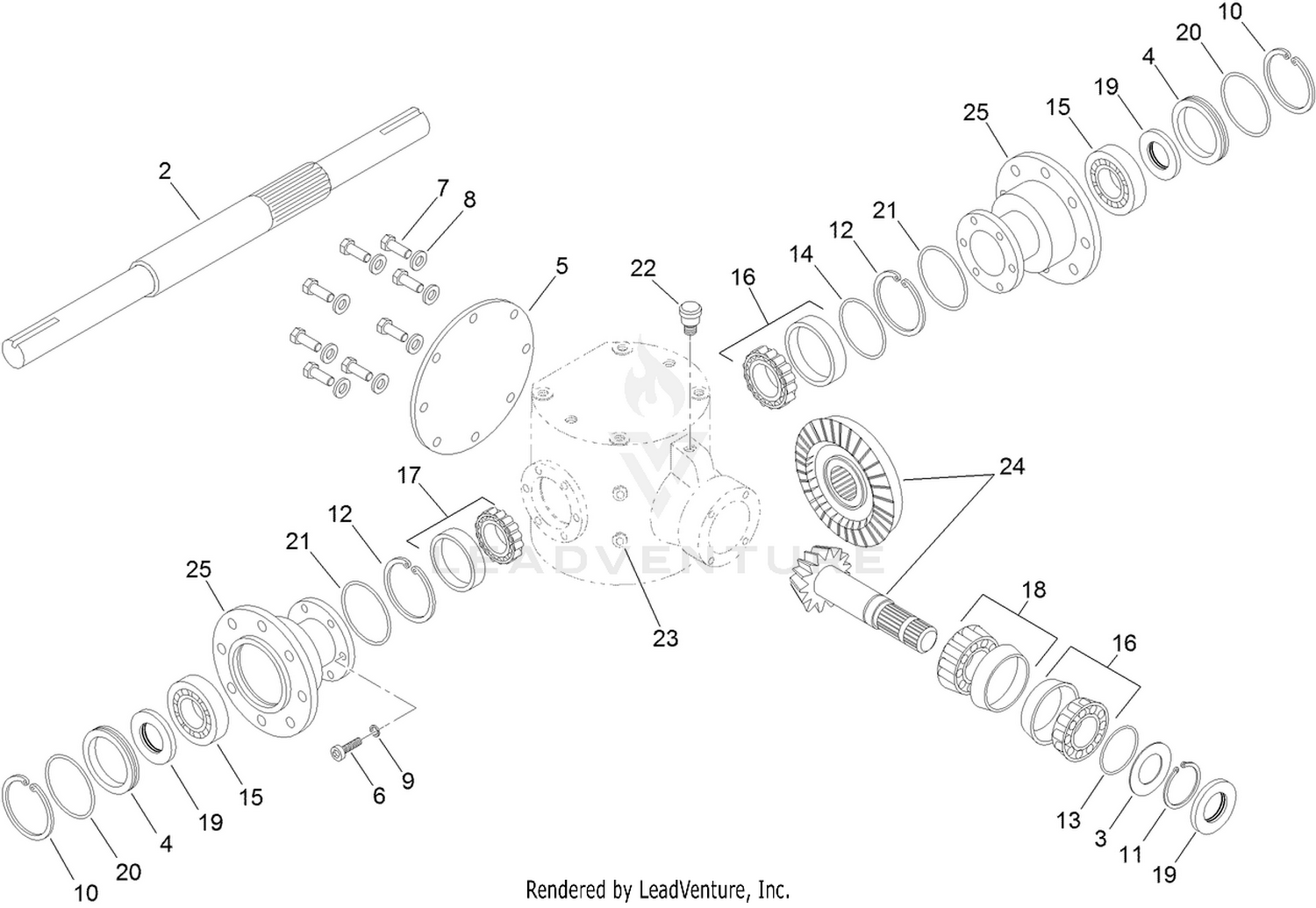

Gearbox Assembly No. SG506000
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 119-3233 | SHAFT-OUTPUT Price: $1,435.43 |
| 3 | 119-3238 | SPACER Price: $42.07 |
| 4 | 119-3203 | SPACER Price: $108.96 |
| 5 | 119-3204 | COVER-HOUSING, GEARBOX Price: $136.66 |
| 6 | 119-3205 | SCREW-HSH Price: $4.48 |
| 7 | 119-3239 | SCREW-HH Price: $1.36 |
| 8 | 119-3206 | WASHER Price: $0.68 |
| 9 | 119-3207 | WASHER Price: $2.04 |
| 10 | 119-3208 | RING-SNAP Price: $25.80 |
| 11 | 119-3209 | RING-SNAP, EXTERNAL Price: $4.95 |
| 12 | 119-3210 | RING-SNAP, INTERNAL Price: $19.24 |
| 13 | 119-3240 | RING Price: $29.17 |
| 14 | 119-3241 | RING Price: $32.90 |
| 15 | 119-3211 | SR60/72/75/80 Price: $306.53 |
| 16 | 119-3212 | BEARING-ROLLER Price: $104.18 |
| 19 | 119-3215 | SEAL-OIL Price: $23.80 |
| 20 | 119-3216 | SEAL-OIL Price: $5.90 |
| 21 | 119-3217 | SEAL-OIL Price: $5.90 |
| 23 | 119-3219 | OIL LEVEL CHECK Price: $5.27 |
| 24 | 119-3242 | BEVEL GEAR ASM Price: $2,040.14 |
