| Ref | Part Number | Description |
|---|
| 1 |
115-8010 |
KIT-KUBOTA ENGINE, V1505-T DSL This part replaces 104-3715. Price: $7,963.50 |
| 1 |
402104 |

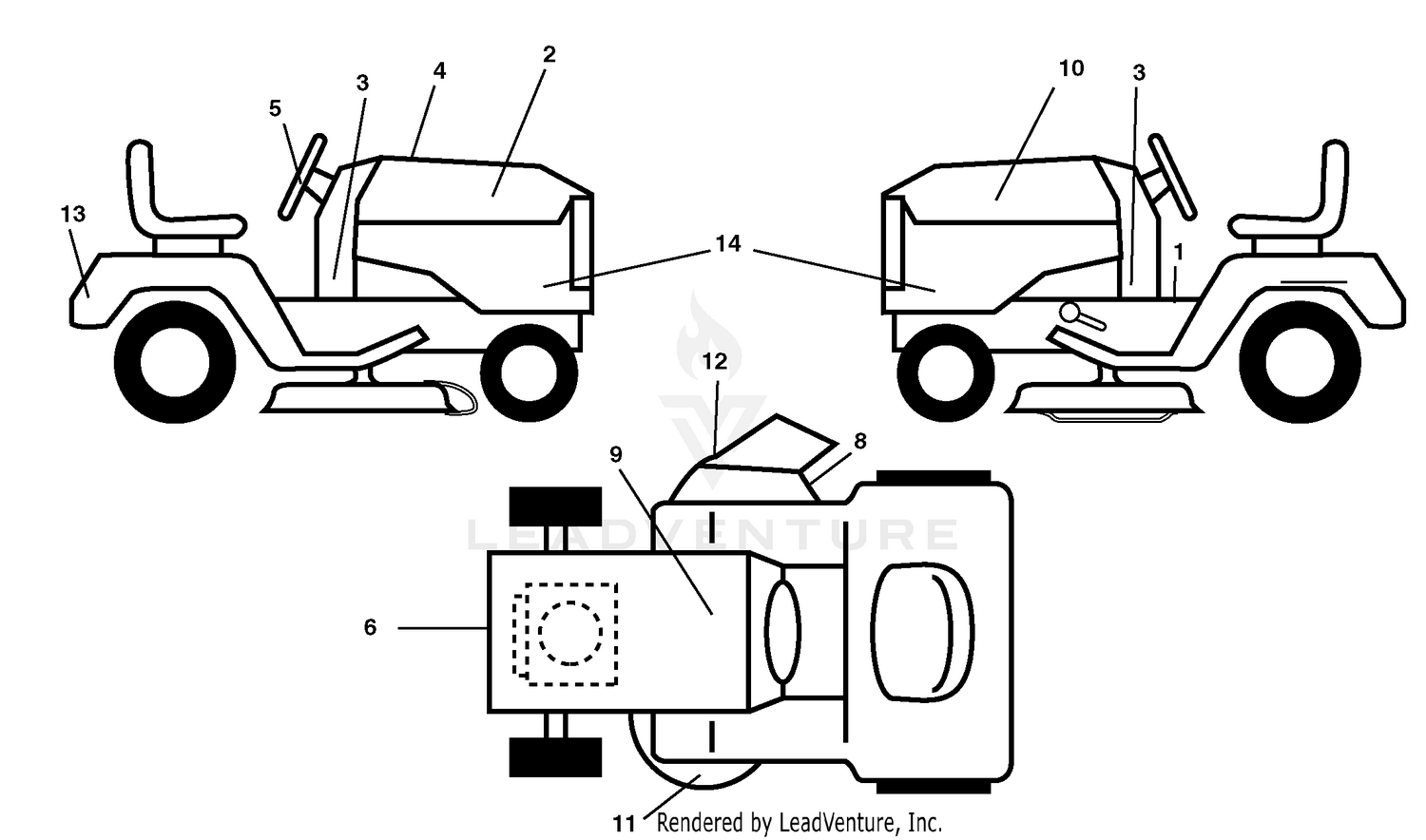

Decal, Operator's Price: Call Us |
| 2 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 2 |
402355 |
Decal, Hood RH Price: Call Us |
| 3 |
402527 |
Decal, Chassis Price: Call Us |
| 3 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 4 |
323-7 |
SCREW-HH Price: $0.65 |
| 4 |
402226 |
Decal, Replacement Price: Call Us |
| 5 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 5 |
172743 |
Decal, Strg Whl Price: Call Us |
| 6 |
189489 |
Decal, Engine HP Price: Call Us |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
104-3760-03 |
BRACKET-ENGINE, FRONT RH Price: $58.99 |
| 8 |
104-3762-03 |
BRACKET-ENGINE, FRONT (LH) Price: $59.24 |
| 8 |
198785 |
Decal, Mower Sch. Price: Call Us |
| 9 |
145005 |
Decal, Battery Dnge/Poi Price: Call Us |
| 9 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 10 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 10 |
402357 |
Decal, Hood LH Price: Call Us |
| 11 |
178502 |
Decal, Mower Caution Price: Call Us |
| 11 |
33114-020 |
SCREW-HH Price: $0.28 |
| 12 |
104-3764-03 |
REAR ENGINE PLATE ASM Price: $72.60 |
| 12 |
170563 |
Decal, Mower Warning Keep Hand Away Price: Call Us |
| 13 |
172740 |
Decal, Fender Price: Call Us |
| 13 |
325-5 |
SCREW-HH Price: $1.20 |
| 14 |
166960 |
Decal, Bypass Price: Call Us |
| 14 |
193101X428 |
Pad, Footrest, RH Price: Call Us |
| 14 |
193279X428 |
Pad, Footrest, LH Price: Call Us |
| 14 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 14 |
401131 |
Decal, Panel SD Price: Call Us |
| 14 |
402495 |
Manual, Operator's (Eng & French) Price: Call Us |
| 15 |
104-3778-03 |
PLATE-THROTTLE Price: $11.89 |
| 16 |
43-0090 |
SCREW-HH Price: $8.05 |
| 17 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 18 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 19 |
48-7890 |
NUT-HEX Price: $0.25 |
| 20 |
136-3817 |
FAN & SPACER ASM This part replaces 105-0129. Price: $277.06 |
| 21 |
74-3650 |
FAN Price: $269.64 |
| 22 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 23 |
105-0100 |
HOUSING-FLYWHEEL Price: $1,070.10 |
| 24 |
110-9729 |
COUPLING-FLYWHEEL This part replaces 105-0101. Price: $505.85 |
| 25 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 26 |
33114-016 |
SCREW-HH Price: $0.27 |
| 27 |
33114-030 |
SCREW-HH Price: $0.50 |
| 28 |
87-3700 |
SCREW-CAP, HH Price: $1.29 |
| 29 |
56-2140 |
SCREW-HH Price: $4.17 |
| 30 |
57-6390 |
NUT-JAM Price: $0.89 |
| 31 |
105-0120 |
HARNESS-WIRE, ENGINE Price: $229.73 |
| 32 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 33 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 34 |
104-5222 |
STUD Price: $7.53 |
| 35 |
33013-00 |
NUT-HEX Price: $0.25 |
| 36 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 38 |
42-9250 |
BOLT Price: $1.63 |
| 39 |
48-8070 |
WASHER-LOCK Price: $0.47 |
| 40 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 41 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 42 |
33114-030 |
SCREW-HH Price: $0.50 |
| 43 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 44 |
25-8640 |
SCREW-HH Price: $1.09 |
| 45 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 46 |
2412-108 |
CLAMP-WORM Price: $1.29 |
