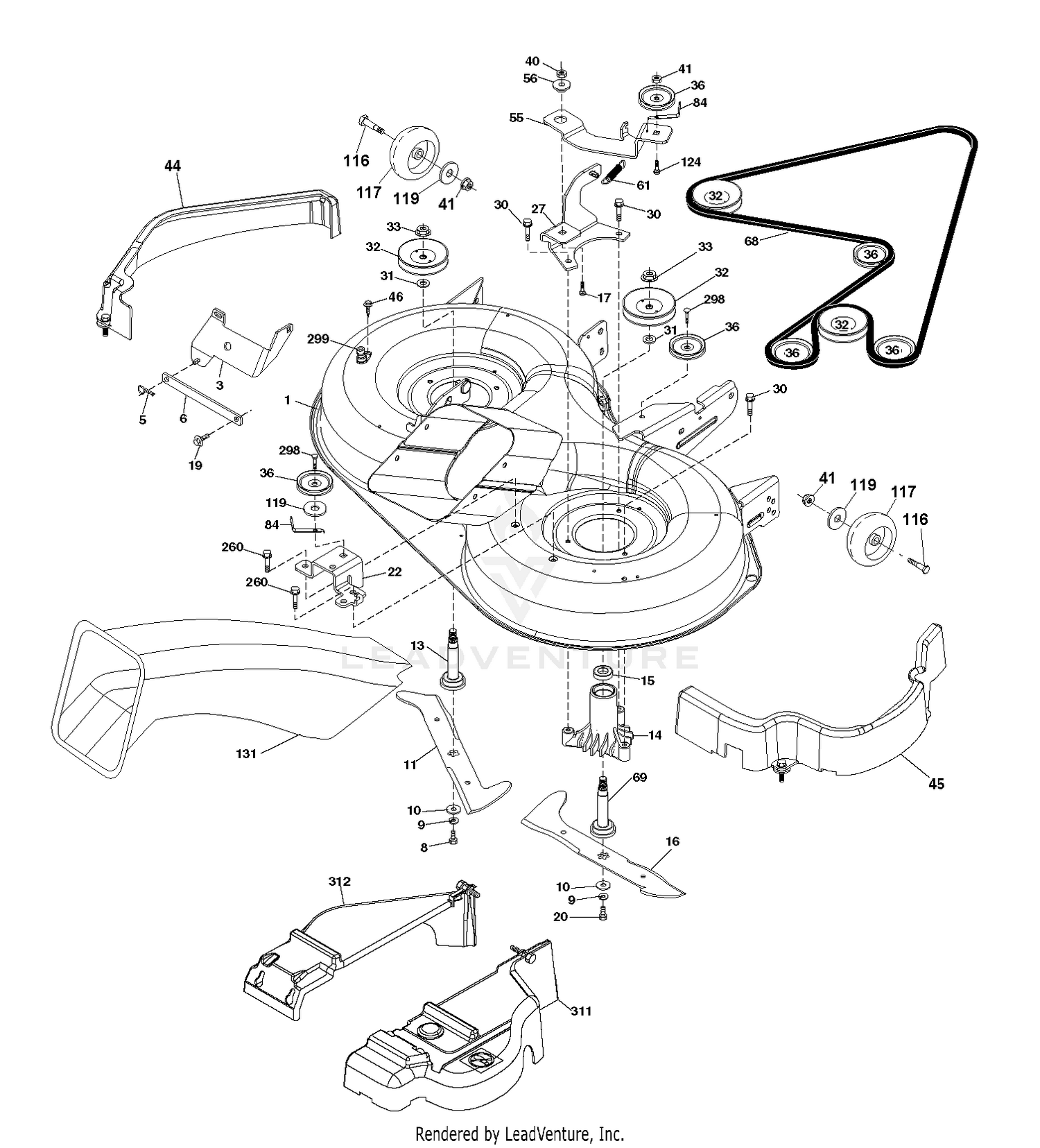

| Ref | Part Number | Description |
|---|
| 1 |
583486301 |
DECK SVCX 97 W/GWB 429121 This part replaces 532429121. Price: $279.99 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $19.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 8 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $5.99 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 10 |
98-9678 |
IDLE APPARATUS ASM Price: $43.48 |
| 11 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $49.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $49.99 |
| 17 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
112-7014 |
ADJUSTING BOLT ASM Price: $14.56 |
| 20 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 22 |
532431169 |
BRACKET.SUPT.IDLER.REAR.RH Price: $5.99 |
| 27 |
532427981 |
BRACKET.ASM.SUSP.REAR.RH. Price: $22.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
98-9439 |
NUT Price: $0.74 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 40 |
112-0181 |
NUT Price: $6.27 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 41 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 44 |
583456401 |
COVER.MANDREL.LH.CRD.97.FR This part replaces 532430210. Price: $12.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 50 |
98-7654 |
GASKET Price: $8.84 |
| 55 |
583252901 |
ARM.IDLER.92.CRD./2006 This part replaces 532199498. Price: $22.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 60 |
98-7656 |
CAP Price: $7.29 |
| 61 |
583252601 |
SPRING.TENSION.92.CRD.2006 This part replaces 532199486. Price: $8.99 |
| 68 |
584454401 |
BELT.DRIVE.CRD.97.2010 This part replaces 532429532. Price: $99.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 70 |
112-7015 |
BOLT-ADJUSTING Price: $6.24 |
| 80 |
100-2175 |
NUT-LOCK Price: $6.78 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 90 |
112-0181 |
NUT Price: $6.27 |
| 100 |
98-7654 |
GASKET Price: $8.84 |
| 110 |
107-9081 |
GASKET Price: $3.94 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 120 |
104-5155 |
SOLENOID-STOP Price: $244.96 |
| 124 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 130 |
130-1155 |
SCREW-HSH Price: $1.22 |
| 131 |
532165661 |
CHUTE BAGGER Price: $79.99 |
| 140 |
112-7016 |
COVER-PUMP Price: $24.52 |
| 150 |
99-3514 |
COVER Price: $11.33 |
| 160 |
117-7562 |
GASKET-PUMP, FUEL Price: $2.98 |
| 260 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 298 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 299 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 311 |
583462001 |
COVER.DECK.RH.CRD.97.FR This part replaces 532430774. Price: $22.99 |
| 312 |
583462101 |
COVER.DECK.LH.CRD.97.FR This part replaces 532430775. Price: $20.99 |
