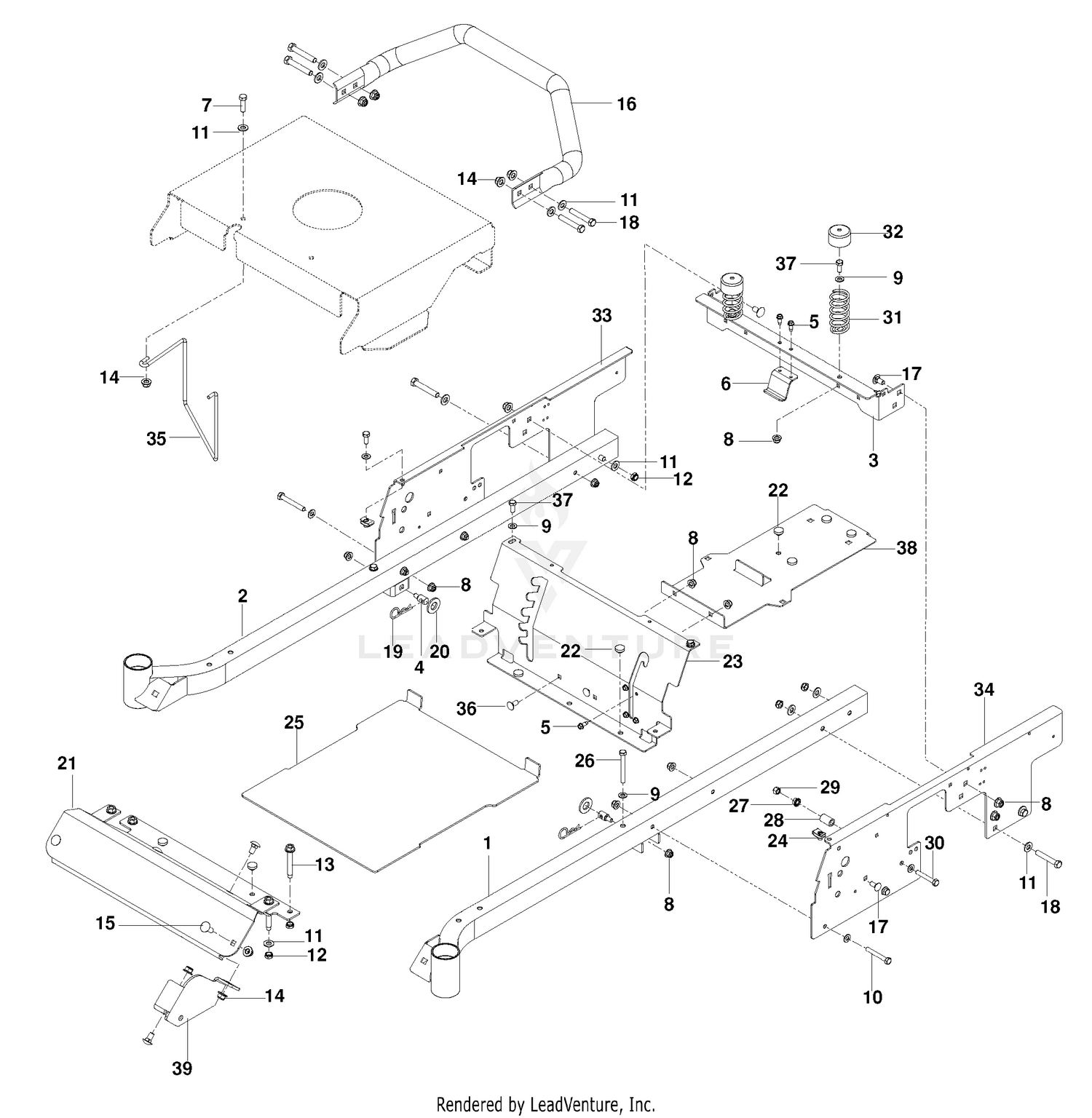

| Ref | Part Number | Description |
|---|
| 1 |
5-1530 |
DISCONTINUED Price: Call Us |
| 1 |
525454702 |
FRAME TUBE, LH, ORG Price: $149.99 |
| 2 |
3211-25 |
Screw Price: Call Us |
| 2 |
525454902 |
FRAME TUBE, RH, ORG Price: $149.99 |
| 3 |
5-1767 |
DISCONTINUED Price: Call Us |
| 3 |
574356402 |
SEAT SUPPORT, REAR ORG Price: $44.99 |
| 4 |
3-3863 |
DISCONTINUED Price: Call Us |
| 4 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 5 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 5 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 6 |
3-8580 |
DISCONTINUED Price: Call Us |
| 6 |
525864502 |
HOLDING DEVICE, FUEL TANK, BLK Price: $9.99 |
| 7 |
5-1932 |
DISCONTINUED Price: Call Us |
| 7 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 8 |
3-5698 |
Clamp Price: Call Us |
| 8 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 9 |
222-1 |
DISCONTINUED Price: Call Us |
| 9 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 10 |
2-8569 |
DISCONTINUED Price: Call Us |
| 10 |
539976938 |
CAPSCREW Price: $3.99 |
| 11 |
5-1830 |
DISCONTINUED Price: Call Us |
| 11 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 12 |
329-8 |
DISCONTINUED Price: $14.39 |
| 12 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 13 |
3-8590 |
DISCONTINUED Price: Call Us |
| 13 |
539111976 |
ENGINE BOLT, SPECIAL Price: $2.99 |
| 14 |
3219-1 |
NUT-HEX Price: $0.47 |
| 14 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 15 |
291-1 |
DISCONTINUED X-REF Price: Call Us |
| 15 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 16 |
224-1 |
DISCONTINUED Price: Call Us |
| 16 |
574354702 |
IMPACT BAR, ORG Price: $54.99 |
| 17 |
289-4 |
DISCONTINUED Price: Call Us |
| 17 |
539111785 |
RHSNB 3/8-16 X 3/4 GR5 ZD Price: $2.99 |
| 18 |
3-6750 |
DISCONTINUED Price: Call Us |
| 18 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 19 |
3219-3 |
NUT-HEX Price: $0.34 |
| 19 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 20 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 20 |
539976982 |
WASHER 5/8 FLAT Price: $3.99 |
| 21 |
3211-4 |
SCREW-HH Price: $1.02 |
| 21 |
574356002 |
FOOT REST, ORG Price: $98.99 |
| 22 |
5-1782 |
DISCONTINUED Price: Call Us |
| 22 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 23 |
5-1784 |
DISCONTINUED Price: Call Us |
| 23 |
575661302 |
PANEL.SEAT.SUPPORT.ORANGE Price: $69.99 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 24 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 25 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 25 |
574356202 |
FOOT PLATE, ORG Price: $68.99 |
| 26 |
3220-6 |
NUT-JAM Price: $1.25 |
| 26 |
539101721 |
HCS 5/16C X 2-3/4 Price: $3.99 |
| 27 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 28 |
5-1791 |
DISCONTINUED Price: Call Us |
| 28 |
539119087 |
BUSHING Price: $7.99 |
| 29 |
3-5198 |
DISCONTINUED Price: Call Us |
| 29 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 30 |
3254-4 |
WASHER-LOCK/INT Price: $0.34 |
| 30 |
539976937 |
HCS 5/16-18X2 Price: $2.99 |
| 31 |
3220-5 |
NUT-JAM Price: $0.65 |
| 31 |
539122632 |
SEAT SPRING Price: $7.99 |
| 32 |
3211-5 |
SCREW-HH Price: $0.88 |
| 32 |
539119884 |
SPRING CAP Price: $4.99 |
| 33 |
5-1781 |
DISCONTINUED Price: Call Us |
| 33 |
575328402 |
PLATE.RH.SIDE.ORANGE Price: $84.99 |
| 34 |
3264-4 |
DISCONTINUED Price: Call Us |
| 34 |
575328302 |
PLATE.LH.SIDE.ORANGE Price: $84.99 |
| 35 |
5-1801 |
DISCONTINUED Price: Call Us |
| 35 |
575952201 |
KEEPER, BELT ENGINE Price: $4.99 |
| 36 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 36 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 37 |
322-6 |
SCREW-HH Price: $0.45 |
| 37 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 38 |
3-7761 |
DISCONTINUED Price: Call Us |
| 38 |
525798402 |
SUPPORT, TANK/BATT, BLK Price: $49.99 |
| 39 |
3-4676 |
DISCONTINUED Price: Call Us |
| 39 |
525605502 |
BRACKET, FRONT DECK, BLK Price: $37.99 |
| 40 |
3-5557 |
DISCONTINUED Price: Call Us |
| 41 |
3229-4 |
SCREW-CARR Price: $0.34 |
| 42 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 43 |
302-14 |
VENT Price: $8.03 |
| 44 |
241-69 |
Wheel Disc Less Valve Hole Price: Call Us |
| 44A |
241-70 |
DISCONTINUED Price: Call Us |
| 45 |
3211-2 |
SCREW-HH Price: $2.17 |
| 46 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 47 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 48 |
254-78 |
BEARING-CONE Price: $12.22 |
| 49 |
214-230 |
DISCONTINUED Price: Call Us |
| 50 |
231-17 |
DISCONTINUED Price: Call Us |
| 51 |
232-8 |
DISCONTINUED Price: Call Us |
| 52 |
217-50 |
DISCONTINUED Price: Call Us |
| 53 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 54 |
3-4685 |
WASHER-TOP THRUST Price: $3.60 |
| 55 |
3210-9 |
SCREW-HH Price: $0.61 |
| 56 |
5-1800 |
DISCONTINUED Price: Call Us |
| 57 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 58 |
3219-2 |
NUT-HEX Price: $0.37 |
| 59 |
302-41 |
DISCONTINUED Price: Call Us |
| 60 |
5-1783 |
DISCONTINUED Price: Call Us |
| 61 |
3-6885 |
DISCONTINUED Price: Call Us |
| 62 |
3-6886 |
DISCONTINUED Price: Call Us |
| 63 |
3-4683 |
DISCONTINUED Price: Call Us |
| 64 |
3-4684 |
DISCONTINUED Price: Call Us |
| 65 |
251-167 |
DISCONTINUED Price: Call Us |
| 66 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 67 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 68 |
242-14 |
DISCONTINUED Price: Call Us |
| 69 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 70 |
351-1 |
DISCONTINUED Price: Call Us |
| 72 |
5-1748 |
DISCONTINUED Price: Call Us |
| 73 |
5-1785 |
DISCONTINUED Price: Call Us |
| 74 |
5-1786 |
DISCONTINUED Price: Call Us |
| 75 |
5-1787 |
DISCONTINUED Price: Call Us |
| 76 |
5-1788 |
DISCONTINUED Price: Call Us |
| 77 |
5-1770 |
DISCONTINUED Price: Call Us |
| 78 |
5-1768 |
DISCONTINUED Price: Call Us |
| 79 |
2213-1 |
DISCONTINUED Price: Call Us |
| 80 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 81 |
5-1738 |
DISCONTINUED Price: Call Us |
| 82 |
5-1828 |
DISCONTINUED Price: Call Us |
| 83 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 84 |
304-8 |
Tube Price: Call Us |
| 85 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 86 |
242-72 |
DUST CAP(DICO 6296) This part replaces 217-51. Price: $15.29 |
| 87 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 88 |
282-4 |
SHACKLE Price: $32.98 |
| 89 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 90 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 91 |
4-9480 |
DISCONTINUED Price: Call Us |
| 92 |
3-5703 |
DISCONTINUED Price: Call Us |
| 93 |
253-111 |
SEAL-OIL Price: $6.87 |
| 94 |
3211-13 |
DISCONTINUED Price: Call Us |
| 95 |
242-32 |
LUG NUT Price: $4.77 |
| 96 |
3-8750 |
DISCONTINUED Price: Call Us |
| 97 |
3272-45 |
Cotter Pin Price: Call Us |
| 98 |
283-16 |
PIN-CLEVIS Price: $2.37 |
| 100 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
