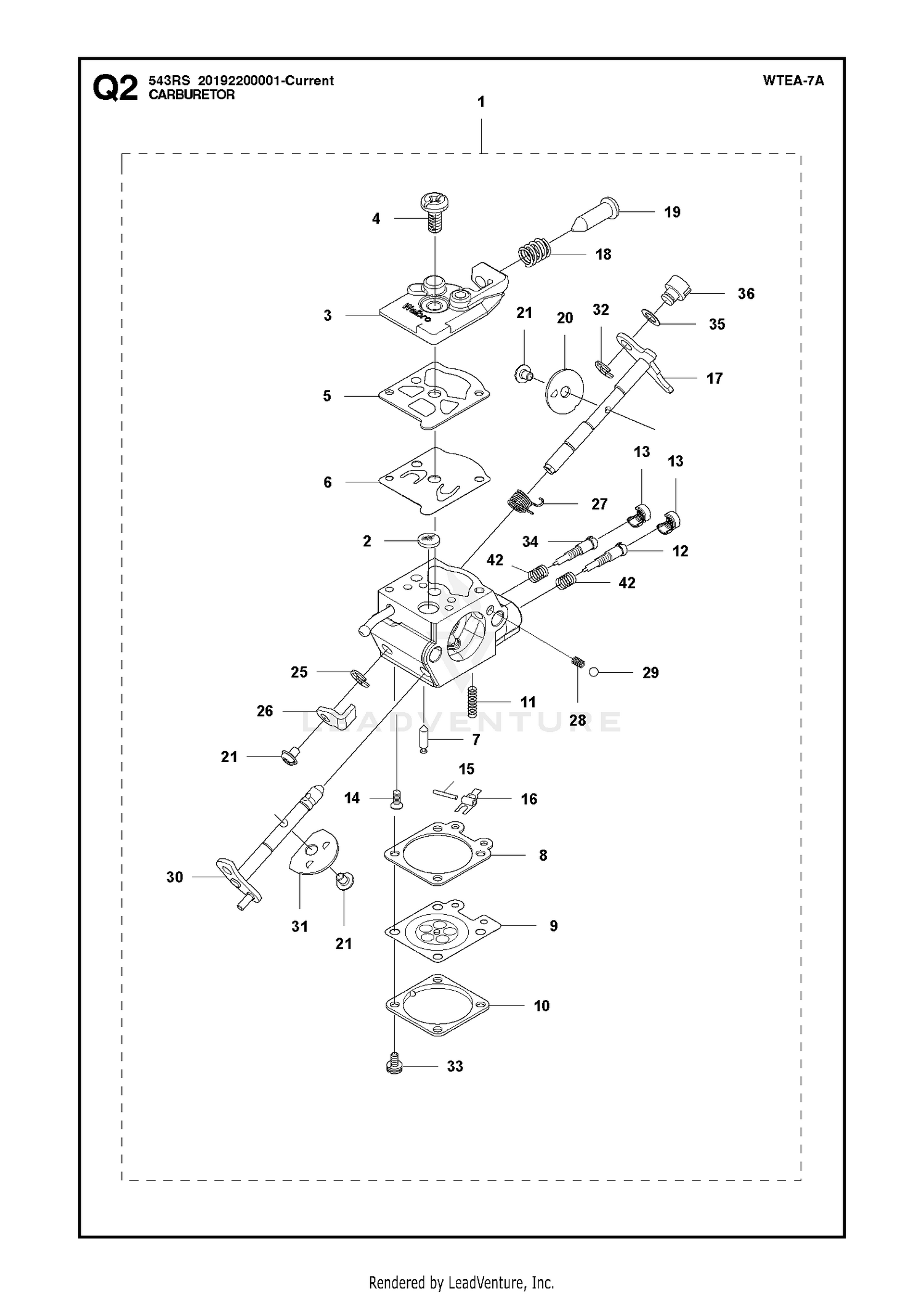

CARBURETOR
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 68-8070 | DISCONTINUED Price: Call Us |
| 2 | 32128-47 | NUT Price: $1.11 |
| 3 | 577806901 | COVER Price: $11.99 |
| 3 | 71-6970 | DISCONTINUED Price: Call Us |
| 4 | 325-9 | SCREW-HH Price: $1.87 |
| 4 | 520976301 | SCREW Price: $2.99 |
| 5 | 327-14 | SCREW-HH Price: $2.44 |
| 5 | 520954801 | GASKET Price: $9.99 |
| 6 | 3217-11 | NUT-HEX Price: $0.95 |
| 6 | 596968101 | PUMPS Price: $8.99 |
| 7 | 325-5 | SCREW-HH Price: $1.20 |
| 7 | 521085401 | VALVE INLET Price: $11.99 |
| 8 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 8 | 516972101 | GASKET Price: $4.99 |
| 9 | 32121-3 | PIN-SPRING Price: $0.25 |
| 9 | 577807001 | DIAPHRAGM Price: $14.99 |
| 10 | 325-6 | SCREW-HH Price: $1.42 |
| 10 | 514189201 | COVER Price: $6.99 |
| 11 | 578895401 | SPRING Price: $3.99 |
| 11 | 71-6820 | DISCONTINUED Price: Call Us |
| 12 | 3212-5 | SCREW-HH Price: $2.46 |
| 12 | 578913101 | NEEDLE H Price: $17.99 |
| 13 | 578913001 | CAP LIMITER Price: $8.99 |
| 14 | 577807101 | SCREW Price: $2.99 |
| 14 | 71-6760 | DISCONTINUED Price: Call Us |
| 15 | 145-7521 | TIRE-RIB, 4PLY (18 X 9.5-8) This part replaces 231-119. Price: $90.49 |
| 15 | 520977401 | PIN Price: $4.99 |
| 16 | 217-60 | RIM Price: $110.16 |
| 16 | 577807201 | LEVER Price: $1.99 |
| 17 | 578895501 | SHAFT ASSY THROTTLE Price: $11.99 |
| 17 | 71-6780 | DISCONTINUED Price: Call Us |
| 18 | 513593201 | SPRING Price: $4.99 |
| 18 | 71-6790 | SEAL-OIL Price: $28.50 |
| 19 | 577815701 | SCREW, IDLE Price: $8.99 |
| 19 | 71-6750 | DISCONTINUED Price: Call Us |
| 20 | 514251901 | VALVE, THROTTLE Price: $7.99 |
| 20 | 71-6830 | WHEEL HUB WA Price: $493.60 |
| 21 | 5108 | VALVE This part replaces 232-35. Price: $6.29 |
| 21 | 520759801 | SCREW Price: $2.99 |
| 22 | 3296-70 | NUT-LOCK NI Price: $15.74 |
| 24 | 71-6730 | DISCONTINUED Price: Call Us |
| 25 | 505056501 | E-RING Price: $3.99 |
| 25 | 71-6800 | DISCONTINUED Price: Call Us |
| 26 | 577815801 | LEVER THROTTLE Price: $3.99 |
| 26 | 71-6810 | PLASTIC DISC Price: $79.57 |
| 27 | 577815501 | SPRING Price: $3.99 |
| 27 | 71-6720 | BALL BEARING Price: $84.86 |
| 28 | 514243301 | CHOKE SPRING Price: $5.99 |
| 28 | 71-6770 | HOUSING - BEARING Price: $616.63 |
| 29 | 514242601 | BALL Price: $5.99 |
| 29 | 71-6710 | DISCONTINUED Price: Call Us |
| 30 | 593172101 | NEEDS DESCRIPTION Price: Call Us |
| 30 | 71-6890 | HITCH WA Price: $1,833.10 |
| 31 | 579367101 | VALVE CHOKE Price: $6.99 |
| 31 | 71-7020-01 | DISCONTINUED This part replaces 71-7020. Price: Call Us |
| 32 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 32 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 33 | 325-17 | SCREW-HH Price: $2.90 |
| 33 | 520978801 | SCREW ASSY Price: $2.99 |
| 34 | 578912901 | NEEDLE L Price: $14.99 |
| 34 | 71-7010 | COUPLER Price: $190.13 |
| 35 | 516524201 | WASHER Price: $2.99 |
| 35 | 71-7070 | DISCONTINUED Price: Call Us |
| 36 | 3253-11 | DISCONTINUED Price: Call Us |
| 36 | 513400801 | SWIVEL Price: $11.99 |
| 37 | 72-8010 | NUT Price: $8.31 |
| 38 | 325-8 | SCREW-HH Price: $3.52 |
