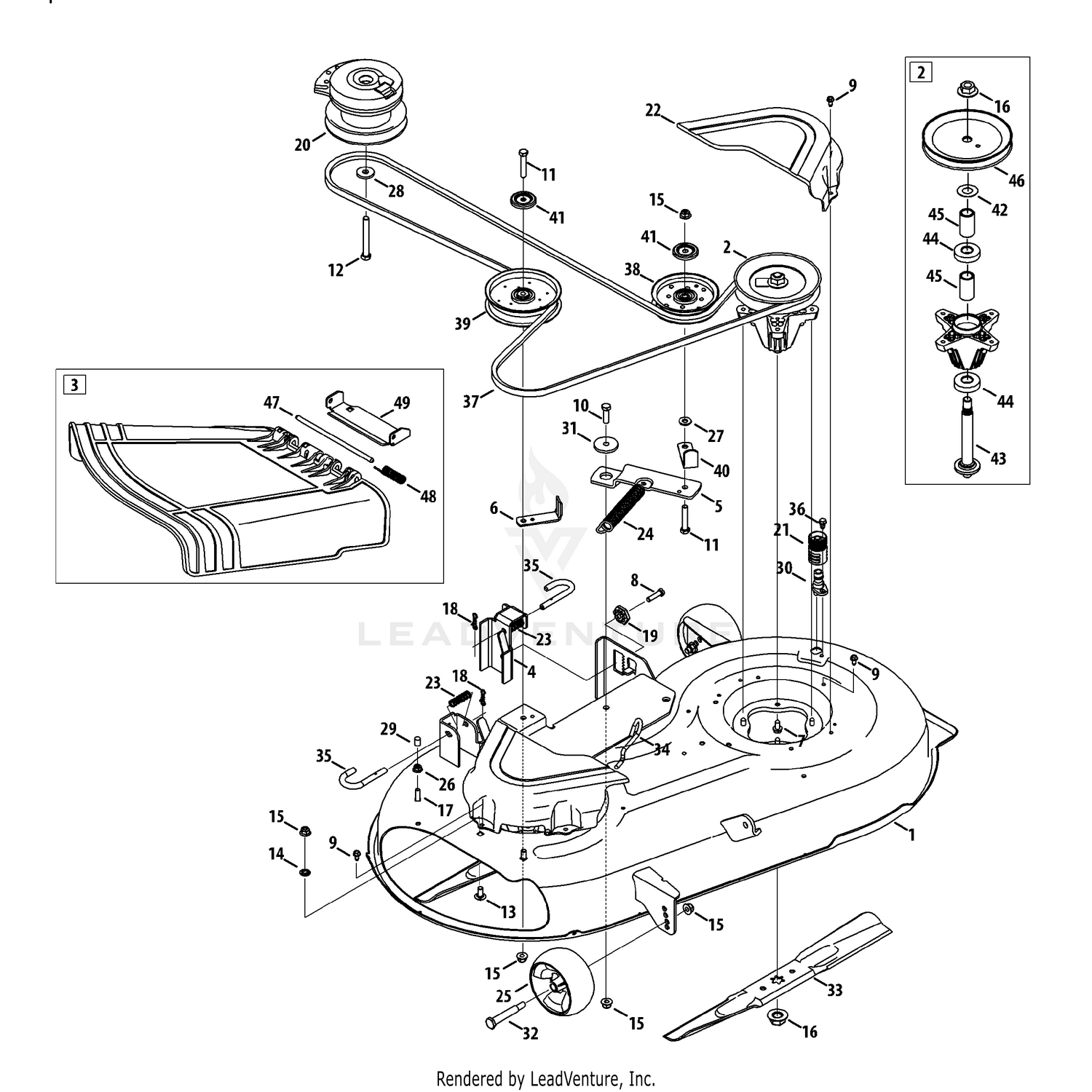

| Ref | Part Number | Description |
|---|
| 2 |
918-04822B |
SPINDLE ASSEMBLY This part replaces 918-04822A. Price: $112.61 |
| 3 |
631-05191A |
Discharge Chute Assembly This part replaces 631-04288. Price: $49.80 |
| 4 |
683-05031-4033 |
DECK HANGER BRACKET (LH) (FLINT MICA) Not Available Price: |
| 5 |
703-08336E |
IDLER PIVOT BRACKET This part replaces 703-08336C-0637. Price: $27.95 |
| 6 |
703-08705-0637 |
Bracket, Belt Guard Not Available Price: |
| 7 |
710-1260A |
Hex Washer Head Screw, 5/16-18 x .75 Price: $3.34 |
| 8 |
710-0573 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $5.53 |
| 9 |
710-1652 |
Hex Washer Screw, 1/4-20 x .625 Price: $3.86 |
| 10 |
710-3005 |
Hex Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 11 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.00 Price: $4.02 |
| 12 |
710-3157A |
Screw, 7/16-20 x 3.25 Price: $9.67 |
| 13 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 14 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 15 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 16 |
712-0417A |
HEX NUT Price: $6.50 |
| 17 |
710-0376 |
Hex Cap Screw, 5/16-18 x 1.00 Price: $3.66 |
| 18 |
714-04040 |
Bow-Tie Cotter Pin, 72 Price: $1.28 |
| 19 |
917-04074 |
Deck Adjustment Gear Price: $11.45 |
| 20 |
917-05121 |
Electric PTO Clutch Price: $419.22 |
| 21 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 22 |
731-08698B |
BELT COVER This part replaces 731-08698. Price: $18.53 |
| 23 |
732-04652 |
Compression Spring, .535 x 1.751 Price: $5.88 |
| 24 |
732-04960 |
Extension Spring, .94 Dia. x 7.57 Price: $13.05 |
| 25 |
734-04155 |
Deck Ball Wheel, 5.0 Price: $19.04 |
| 26 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 27 |
736-0262 |
Flat Washer, .385 x .870 x .092 Price: $3.66 |
| 28 |
736-0322 |
Flat Washer, .450 x 1.25 x .164 Price: $8.42 |
| 29 |
720-05010 |
Cap, .290 x .500 Price: $3.70 |
| 30 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 31 |
738-04162C |
Shoulder Spacer, .884 x .190 Price: $12.76 |
| 32 |
938-3056 |
Shoulder Screw, .5 x 2.5 x 3/8-16 Price: $8.53 |
| 34 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 35 |
747-06082 |
Deck Hanger Rod Price: $9.29 |
| 36 |
738-04278 |
Shoulder Screw, .500 x 1/4-20 Price: $5.99 |
| 37 |
954-04033A |
V-Belt Price: $46.63 |
| 38 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
| 39 |
756-04511B |
Idler Pulley, 5.00 Dia. This part replaces 756-04511A. Price: $49.33 |
| 40 |
783-06368A-0637 |
Bracket Belt Guard Price: $18.68 |
| 41 |
783-07236 |
Pulley Cap Price: $4.64 |
| 42 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 43 |
738-1186A |
Spindle Shaft Price: $45.83 |
| 44 |
741P0919B |
BALL BEARING This part replaces 941-0919A. Price: $18.90 |
| 45 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Price: $5.94 |
| 46 |
956-1227 |
Deck Pulley Price: $23.08 |
| 47 |
711-04847B |
Hinge Pin Price: $7.63 |
| 48 |
732-04372 |
Torsion Spring Price: $8.93 |
