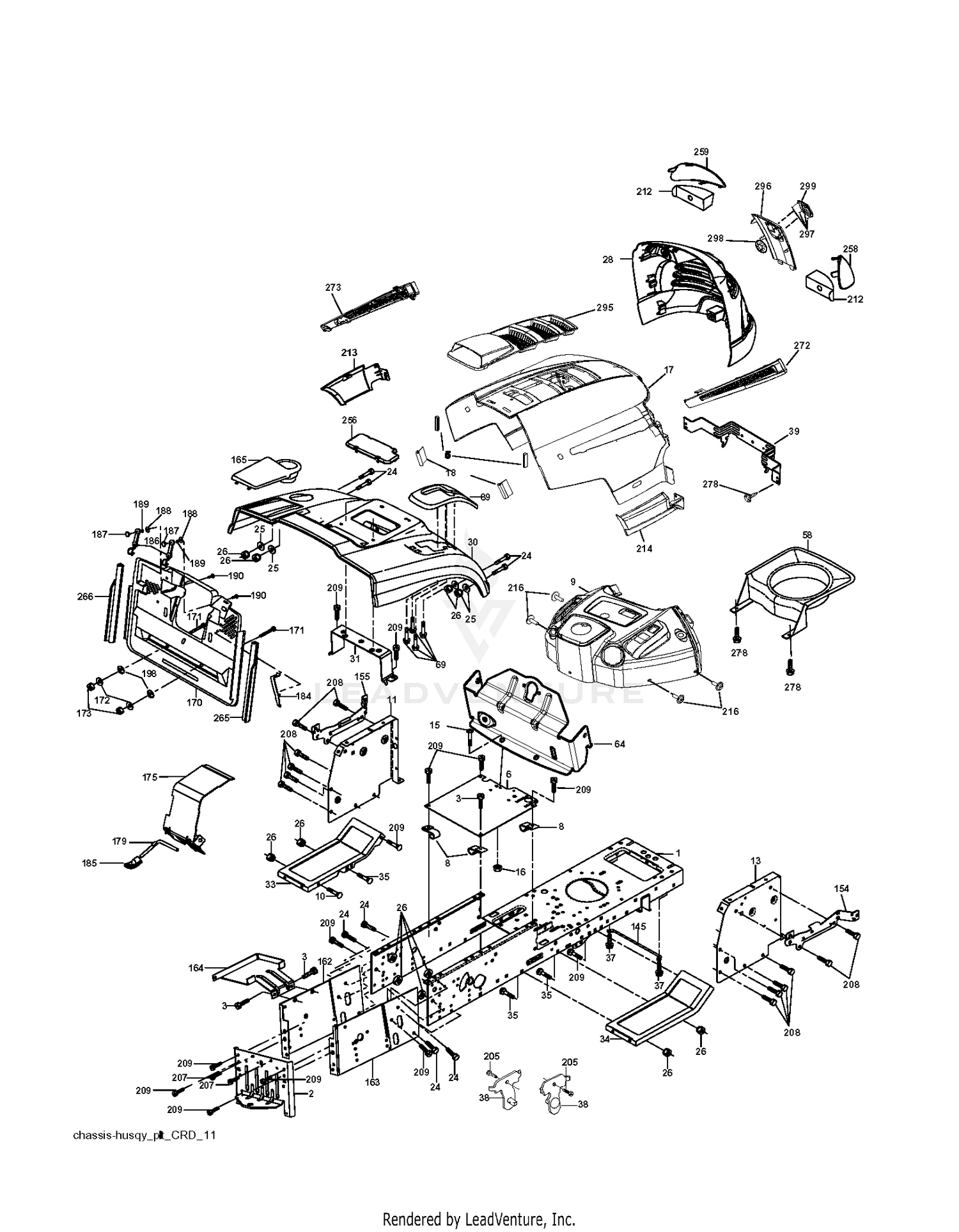

| Ref | Part Number | Description |
|---|
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 2 |
108-0686 |
SHIELD-RUBBER, TOP Price: $193.61 |
| 2 |
583101001 |
DRAWBAR.CRD This part replaces 532180384. Price: $64.99 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 5 |
532407590 |
BUMPER DASH Price: $3.99 |
| 6 |
108-0760 |
COUPLING-JAW, STOCK Price: $136.91 |
| 6 |
583133601 |
SADDLE.FLAT.LT/YT/CRD.2003 This part replaces 532184419. Price: $12.99 |
| 7 |
105-9455 |
MOTOR Price: $989.33 |
| 8 |
325-7 |
SCREW-HH Price: $1.53 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 9 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 9 |
532409467 |
NEEDS DESCRIPTION Price: Call Us |
| 10 |
107-1471 |
BEARING-FLANGE, 3-BOLT Price: $38.30 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
108-0668-03 |
PLATE-SKIRT, SIDE Price: $24.80 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 12 |
115-9093 |
SHIELD, RUBBER-SIDE This part replaces 108-0683. Price: $11.92 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 14 |
115-9092 |
SHIELD, RUBBER-FRONT This part replaces 107-1302. Price: $52.00 |
| 15 |
108-0667-03 |
PLATE-SKIRT, FRONT Price: $103.97 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
112-6769 |
BRUSH ASM This part replaces 107-1452. Price: $1,169.99 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 17 |
107-1439-03 |
PLATE-ANGLE Price: $23.40 |
| 17 |
532441267 |
HOOD.HUSQVARNA.LT.ORANGE This part replaces 532411073. Price: $79.99 |
| 18 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 18 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
107-1280-01 |
ANGLE-FRONT Price: $136.91 |
| 22 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 23 |
108-0781 |
COVER-COUPLER Price: $46.69 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 28 |
532439421 |
ASM.GRILLE HUSQVARNA.LT.498 This part replaces 532406667. Price: $129.99 |
| 30 |
532197376 |
CONSOLE.CRD.AUTO.GRY Price: $8.99 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
583117401 |
BRACKET ARM.PIVOT.REAR This part replaces 532181748. Price: $9.99 |
| 39 |
532407807 |
BRACKET PIVOT Price: $27.99 |
| 58 |
532407537 |
DUCT.AIR. Price: $34.99 |
| 64 |
532408127 |
Price: Call Us |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 89 |
532441574 |
CONSOLE.CRD.AUTO.GRY This part replaces 532197377. Price: $8.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 154 |
532408122 |
Price: Call Us |
| 155 |
532408123 |
Price: Call Us |
| 163 |
583100901 |
BRKT.EXTEN.CHASSIS.RH.CRD This part replaces 532180383. Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
532441516 |
COVER.BATT.CUPHOLDER.CRD This part replaces 532181100. Price: $17.99 |
| 170 |
532199489 |
Price: Call Us |
| 171 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 175 |
583707801 |
DOOR.TRAP.FBI.CRD.2004 This part replaces 532188203. Price: $17.99 |
| 179 |
583100601 |
ROD.PIVOT.FBI.CRD This part replaces 532188202. Price: $17.99 |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532181101 |
Price: Call Us |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 189 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532406665 |
INSERT REFLECTIVE Price: $6.99 |
| 213 |
532441345 |
SKIRT.SIDE.HUSQVARNA.LT.LEFT This part replaces 532411077. Price: $11.99 |
| 214 |
532406668 |
SKIRT.SIDE.HUSQVARNA.LT.RH.GRE This part replaces 532411076. Price: $11.99 |
| 216 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 256 |
532181361 |
COVER FENDER CRD Price: $3.99 |
| 258 |
532406663 |
LENS.HUSQVARNA LT.RH This part replaces 532441427. Price: $14.99 |
| 259 |
532406664 |
LENS.HUSQVARNA LT.LH This part replaces 532441428. Price: $14.99 |
| 265 |
583146701 |
SEAL.SIDE.RH.BAGGER.CRD This part replaces 532185704. Price: $17.99 |
| 266 |
583146601 |
SIDE.SEAL.LH.BAGGER.CRD This part replaces 532185703. Price: $17.99 |
| 272 |
532440973 |
Price: Call Us |
| 273 |
532440974 |
Price: Call Us |
| 278 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 295 |
532441375 |
SUBASM.TOP.VENT.HUSQ.LT This part replaces 532411116. Price: $17.99 |
| 296 |
532407881 |
TRIM.HUSQ LT.668 This part replaces 532411119. Price: $19.99 |
| 297 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 298 |
532110452 |
NUT PUSH M Price: $2.99 |
| 299 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 532405012. Price: $5.99 |
