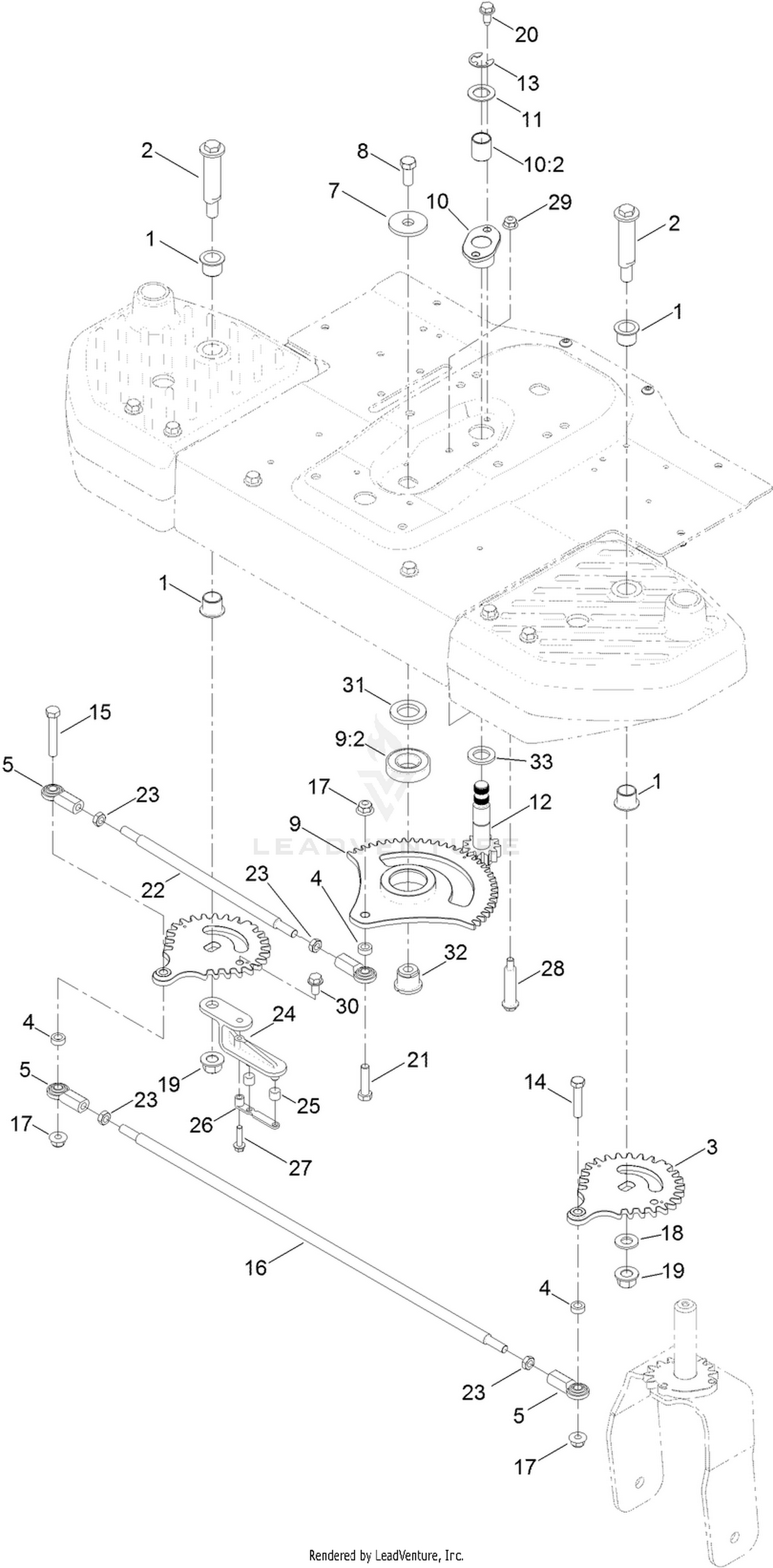

| Ref | Part Number | Description |
|---|
| 1 |
103-4398 |
BEARING-FLANGE, IGLIDE Price: $7.11 |
| 2 |
131-1031 |
BOLT-SHOULDER Price: $3.25 |
| 3 |
130-0830 |
GEAR-WHEEL, 30 TOOTH Price: $29.33 |
| 4 |
83-1050 |
SPACER Price: $3.26 |
| 5 |
103-0608 |
JOINT-BALL, END Price: $31.99 |
| 7 |
84-1560 |
WASHER-THRUST Price: $2.71 |
| 8 |
324-4 |
SCREW-HH Price: $0.95 |
| 9 |
131-8731 |
SECTOR GEAR ASM Price: $53.36 |
| 10 |
131-8733 |
FLANGE BEARING ASM Price: $44.01 |
| 11 |
119-7640 |
WASHER-THRUST Price: $2.23 |
| 12 |
125-5508 |
LOWER STEERING SHAFT ASM Price: $53.36 |
| 13 |
32151-48 |
E-RING Price: $1.41 |
| 14 |
323-9 |
SCREW-HH Price: $1.29 |
| 15 |
323-11 |
SCREW-HH Price: $1.08 |
| 16 |
130-6986 |
ROD-CROSS, WIDE Price: $19.98 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 19 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 20 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 21 |
323-8 |
SCREW-HH Price: $1.20 |
| 22 |
131-1037 |
ROD-STEERING, WIDE Price: $11.32 |
| 23 |
3220-3 |
NUT-HJ Price: $0.28 |
| 24 |
130-6878 |
LEVER-CABLE Price: $32.01 |
| 25 |
131-3951 |
BUSHING Price: $1.71 |
| 26 |
131-3950 |
STRAP-ROLLER Price: $9.73 |
| 27 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 28 |
136-7199 |
BOLT-SHOULDER This part replaces 100-9880. Price: $2.49 |
| 29 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 30 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 31 |
131-8736 |
SPACER-BEARING Price: $1.67 |
| 32 |
131-8737 |
PIVOT-BEARING Price: $13.06 |
