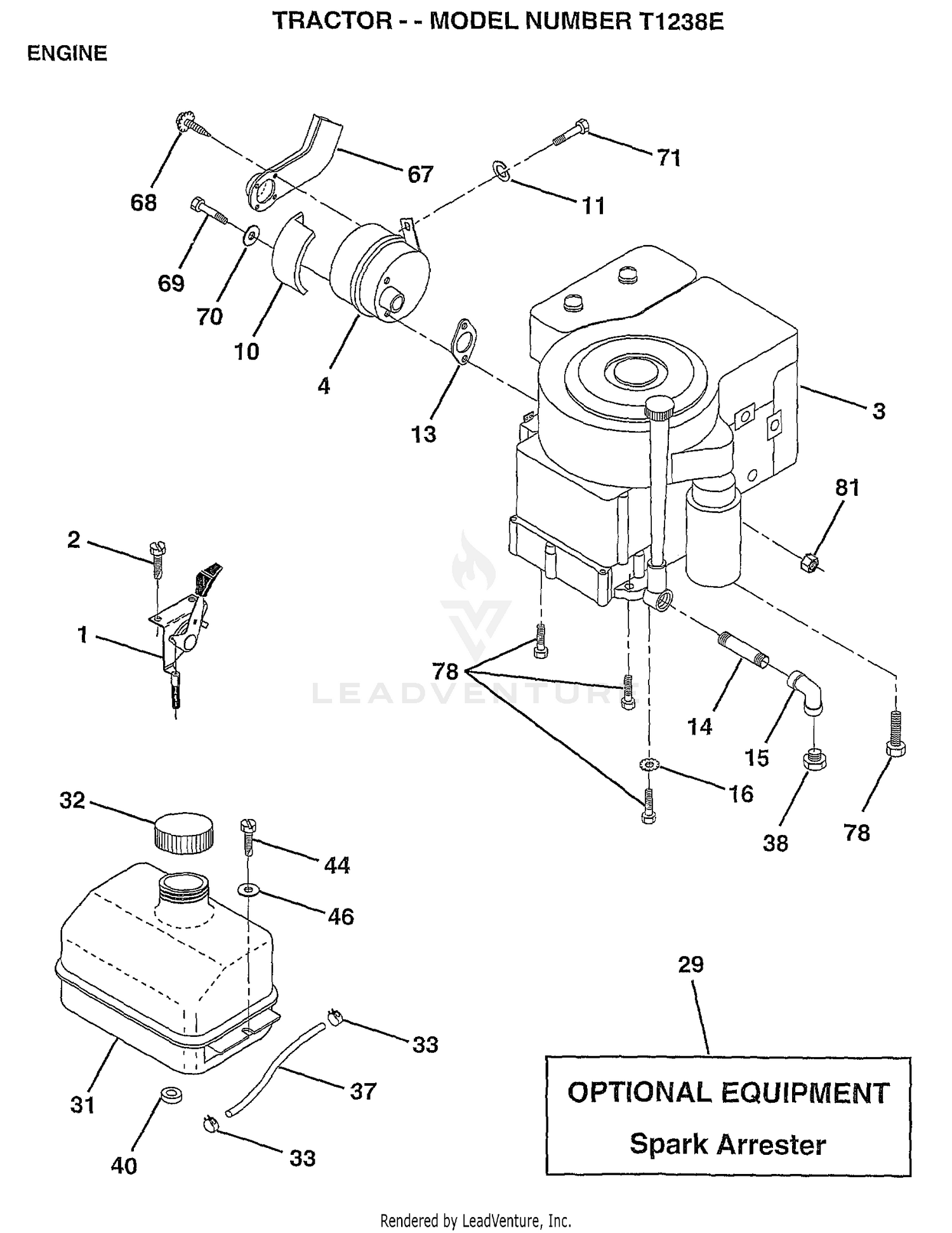

| Ref | Part Number | Description |
|---|
| 1 |
132771 |
THROTTLE CONTROL Price: Call Us |
| 1 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 4 |
101273M |
MUFFLER LTV Price: Call Us |
| 4 |
3220-3 |
NUT-HJ Price: $0.28 |
| 5 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 6 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 7 |
145-4569 |
HYD CYLINDER ASM This part replaces 106-9064. Price: $461.20 |
| 8 |
110-3953 |
SPRING-TORSION, CENTER This part replaces 106-9080. Price: $9.16 |
| 9 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 10 |
101159L |
SHIELD HEAT LTV Price: Call Us |
| 10 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 11 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 12 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 13 |
322-1 |
SCREW-HH Price: $0.22 |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
93-2384 |
SPACER-CARRIER Price: $9.09 |
| 21 |
5-1226 |
WASHER Price: $3.90 |
| 22 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 23 |
105-0452 |
PIVOT HINGE ASM Price: $477.65 |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 25 |
136-8485 |
FRAME-PULL, CENTER This part replaces 105-0451. Price: $382.66 |
| 26 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 27 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 28 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 29 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 31 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 32 |
110-3955 |
CENTER LIFT ARM ASM This part replaces 107-9500. Price: $148.89 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 34 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 35 |
94-4548 |
BUMPER-RECESSED Price: $4.68 |
| 36 |
32144-44 |
SCREW-HWH, THREAD ROLL Price: $1.39 |
| 37 |
105-5740 |
HOOK-LIFT Price: $13.14 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 38 |
33115-025 |
SCREW-HH Price: $0.61 |
| 39 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 67 |
108767X |
DEFLECTOR MUFFLER Price: Call Us |
| 68 |
17030808 |
SUB= 17030814 Price: Call Us |
| 70 |
19111012 |
WASHER T Price: Call Us |
| 71 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
