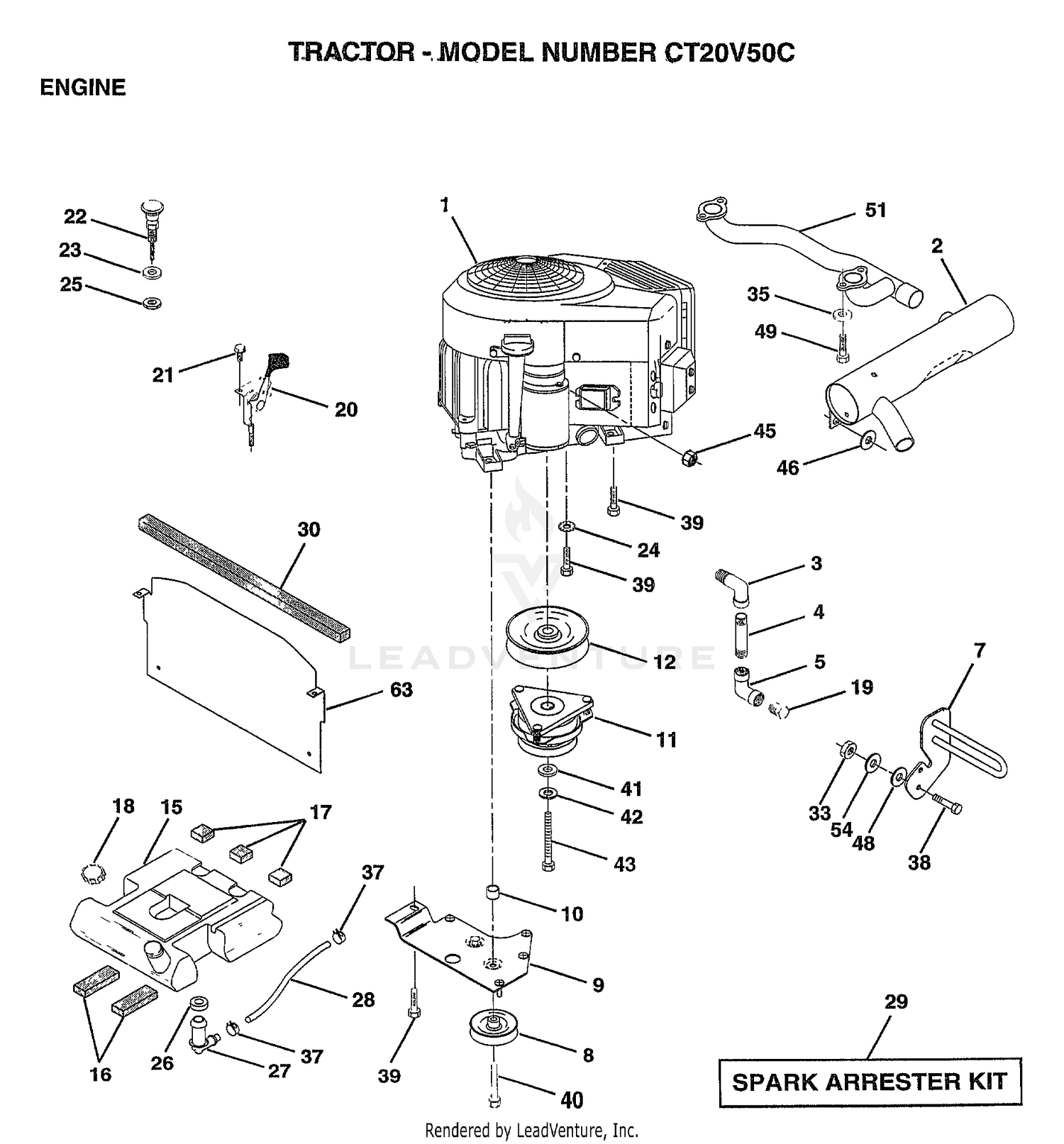

| Ref | Part Number | Description |
|---|
| 1 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 2 |
144636 |
SUB= 161062 Price: Call Us |
| 2 |
69-8970 |
SPACER Price: $9.57 |
| 3 |
13240300 |
STREET ELBOW LT Price: Call Us |
| 3 |
69-8940 |
WASHER Price: $1.76 |
| 4 |
13280328 |
PIPE NIPPLE Price: Call Us |
| 4 |
340-70 |
NUT-LOCK Price: $2.10 |
| 5 |
13200300 |
ELBOW Price: Call Us |
| 5 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 6 |
328-24 |
SCREW-HH Price: $23.99 |
| 7 |
151396 |
GUARD.MUFFLER.ASM Price: Call Us |
| 7 |
69-4400-01 |
CARRIER-DECK, WING Price: $2,088.97 |
| 8 |
121361X |
SUB= 139123 Price: Call Us |
| 8 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 9 |
150828 |
KEEPER ASM BELT Price: Call Us |
| 9 |
321-9 |
SCREW-HH Price: $0.27 |
| 10 |
105432X |
BUSHING. Price: Call Us |
| 10 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 11 |
137140 |
SUB= 142600 Price: Call Us |
| 11 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 12 |
136907 |
PULLEY.ENGINE.VGT Price: Call Us |
| 12 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 13 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 14 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 15 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 15 |
151346 |
TANK FUEL REAR Price: Call Us |
| 16 |
109227X |
PAD IDLER TI Price: Call Us |
| 16 |
322-6 |
SCREW-HH Price: $0.45 |
| 17 |
106082X |
PAD-SPACER LT Price: Call Us |
| 18 |
140527 |
CAP ASM FUEL Price: Call Us |
| 19 |
13290300 |
PLUG T Price: Call Us |
| 20 |
132747 |
SUB= 532132748 Price: Call Us |
| 21 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
17720410 |
SCREW LT Price: Call Us |
| 22 |
132782 |
SUB= 132781 Price: Call Us |
| 22 |
69-9450-03 |
BRACKET-HOSE, WING (LH) Price: $26.57 |
| 22 |
69-9460-03 |
BRACKET-HOSE, WING (RH) Price: $25.43 |
| 23 |
19131316 |
WASHER Price: Call Us |
| 23 |
340-117 |
CAP Price: $10.30 |
| 24 |
11050600 |
LOCKWASHER Price: Call Us |
| 24 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 25 |
125-1984 |
SPACER This part replaces 69-9000. Price: $0.68 |
| 26 |
3645J |
BUSHING OUTLET T Price: Call Us |
| 26 |
69-9010 |
WASHER Price: $1.83 |
| 27 |
139277 |
STEM.TANK.FUEL Price: Call Us |
| 27 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 28 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 28 |
7834R |
SUB= 8542R Price: Call Us |
| 29 |
132920 |
SPARK ARREST KIT Price: Call Us |
| 29 |
99-5917 |
SHAFT-PIVOT, LIFT ARM Price: $381.77 |
| 30 |
105037X |
FOAM-STRIP LT Price: Call Us |
| 30 |
340-115 |
FITTING-TEE, SWIVEL NUT Price: $56.09 |
| 31 |
323-6 |
SCREW-HH Price: $0.66 |
| 32 |
32108-103 |
SCREW-FH Price: $0.68 |
| 33 |
328-26 |
SCREW-HH Price: $38.75 |
| 33 |
73800600 |
NUT Price: Call Us |
| 34 |
69-9300 |
PAD-BUMPER Price: $8.68 |
| 35 |
10040500 |
LOCKWASHER Price: Call Us |
| 35 |
93-9922 |
SPACER Price: $11.40 |
| 36 |
72-4310 |
SWITCH-BALL Price: $84.47 |
| 37 |
123487X |
HOSE CLAMP Price: Call Us |
| 37 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 38 |
39-7650-01 |
COVER Price: $14.67 |
| 39 |
17490624 |
SCREW LT Price: Call Us |
| 39 |
93-9925-01 |
ARM-LIFT, RH Price: $2,514.65 |
| 39 |
93-9926-01 |
ARM-LIFT, LH Price: $2,514.68 |
| 40 |
17490652 |
SCREW.3/8-16X3.25 Price: Call Us |
| 40 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 41 |
126197X |
WASHER Price: Call Us |
| 41 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 42 |
10040700 |
LOCKWASHER Price: Call Us |
| 42 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 43 |
150280 |
BOLT.7/16-20X4.25 Price: Call Us |
| 43 |
328-8 |
SCREW-HH Price: $5.54 |
| 44 |
69-5490 |
HOSE ASM Price: $89.51 |
| 45 |
128861 |
NUT Price: Call Us |
| 45 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 46 |
19131616 |
WASHER HYT Price: Call Us |
| 46 |
74-2170 |
HYD CYLINDER ASM Price: $1,341.49 |
| 47 |
323-15 |
SCREW-HH Price: $1.53 |
| 48 |
19132007 |
WASHER T Price: Call Us |
| 48 |
74-2680-03 |
BRACKET-BULKHEAD Price: $34.49 |
| 49 |
98-7346 |
SPACER Price: $30.67 |
| 49 |
M710708020 |
BOLT.HD.SOCKET. Price: Call Us |
| 50 |
69-1580-03 |
ANCHOR-LH Price: $527.05 |
| 50 |
69-1600-03 |
ANCHOR-RH Price: $527.05 |
| 51 |
140805 |
PIPE.EXHAUST.B&S Price: Call Us |
| 51 |
69-5970 |
TUBE-HYD Price: $143.02 |
| 52 |
95-6498 |
TUBE-HYD Price: $161.76 |
| 54 |
19131414 |
WASHER Price: Call Us |
