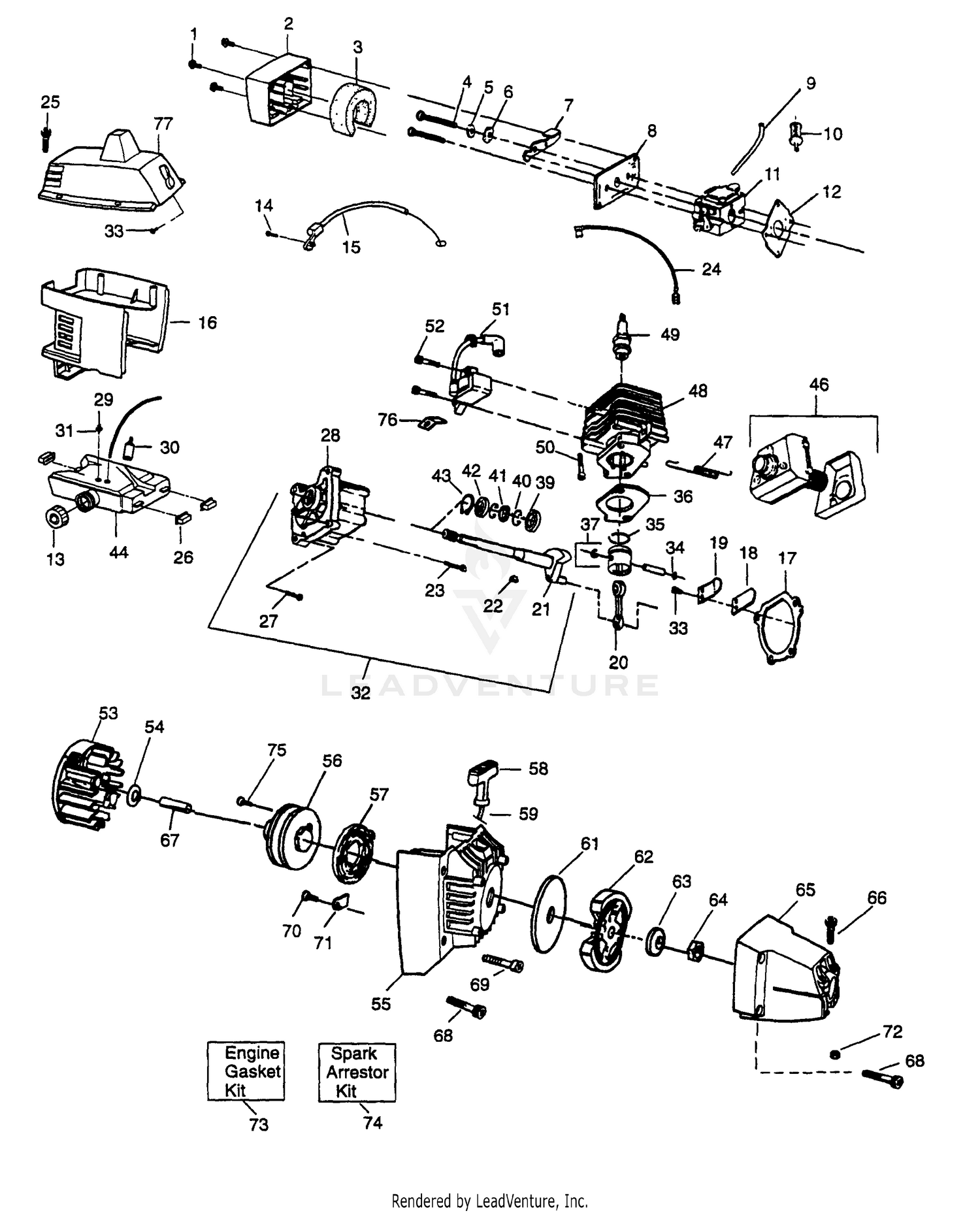

| Ref | Part Number | Description |
|---|
| 1 |
25-2650 |
PLUG-VALVE, CHECK Price: $89.01 |
| 1 |
530015773 |
SCREW-10-24 X 13/16 Price: $3.99 |
| 2 |
237-86 |
O-RING Price: $5.47 |
| 2 |
530038081 |
FILTER COVER This part replaces 530029727. Price: $6.99 |
| 3 |
25-2640 |
SPRING-VALVE Price: $4.22 |
| 3 |
530027530 |
AIR FILTER Price: $4.99 |
| 4 |
25-2490 |
BALL Price: $14.47 |
| 4 |
530015849 |
SCREW Price: $3.99 |
| 5 |
530015852 |
CHOKE SPACER This part replaces 530036325. Price: $2.99 |
| 5 |
75-0170 |
PLUG-THREAD, STRAIGHT This part replaces 92-8776. Price: $18.20 |
| 6 |
530015254 |
WASHER Price: $2.99 |
| 6 |
92-8777 |
O-RING Price: $3.02 |
| 7 |
112-7655 |
KIT-SERVICE This part replaces 95-5808. Price: $496.31 |
| 7 |
530029114 |
Choke Shutter Price: $1.32 |
| 8 |
25-2610 |
SPRING-VALVE This part replaces 95-5815. Price: $29.42 |
| 8 |
530029632 |
Air Filter Plate Price: $2.71 |
| 9 |
530069247 |
HOSE. FUEL Price: $6.99 |
| 9 |
95-5814 |
VALVE-ACCELERATION Price: $268.12 |
| 10 |
237-79 |
O-RING Price: $5.46 |
| 10 |
530095646 |
FUEL PICK-UP ASSY This part replaces 530014362. Price: $5.99 |
| 11 |
136-3219 |
PLUG ASM This part replaces 95-5816. Price: $21.54 |
| 11 |
545081825 |
KIT CARBURETOR ASSY This part replaces 530069641. Price: $54.99 |
| 12 |
237-30 |
O-RING Price: $2.50 |
| 13 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 13 |
530014347 |
CAP ASSY W/ RETAINER This part replaces 530014335. Price: $7.99 |
| 14 |
25-2400 |
GASKET Price: $19.26 |
| 14 |
530015775 |
SCREW 8-16 X 9/16 (PLAS Price: $2.99 |
| 15 |
530047041 |
THROTTLE CABLE Price: $3.94 |
| 15 |
95-5811 |
PLATE-VALVE Price: $873.34 |
| 16 |
48-1800 |
CYLINDER BLOCK KIT This part replaces 25-2600. Price: $1,923.22 |
| 16 |
530037859 |
SHROUD Price: $22.99 |
| 18 |
530027593 |
VALVE-REED Price: $4.99 |
| 19 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 19 |
530027594 |
REED STOP Price: $4.99 |
| 20 |
95-5809 |
BEARING-BALL Price: $146.80 |
| 21 |
32151-83 |
RING-SNAP This part replaces 95-5813. Price: $0.34 |
| 21 |
530010934 |
ASSY-CRANKSHAFT Price: $27.99 |
| 22 |
353-988 |
PLUG-HEX Price: $10.61 |
| 22 |
530015126 |
KEY-FLYWHEEL Price: $2.99 |
| 23 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 23 |
530015772 |
SCREW-10-24 X 1" (TAP.) Price: $2.99 |
| 24 |
530029777 |
ASSY-WIRE LEAD (BLACK) Price: $2.99 |
| 24 |
88-8190 |
BEARING-JOURNAL Price: $121.52 |
| 25 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 25 |
530015886 |
SCREW-10-14 X 13/16 (PL Price: $2.99 |
| 26 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 26 |
530029760 |
ISOLATOR Price: $0.99 |
| 27 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 27 |
88-8180 |
SHAFT-TRUNNION Price: $225.05 |
| 28 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 29 |
25-2460 |
PLUG-HH Price: $37.38 |
| 29 |
530026119 |
VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 30 |
25-2470 |
PACK-SHIM Price: $47.36 |
| 30 |
530029717 |
FILTER Price: $1.24 |
| 31 |
25-2570 |
SPRING-VALVE Price: $12.67 |
| 31 |
530029696 |
Retainer Price: $0.30 |
| 32 |
83-7260 |
CONE-RELIEF, CHARGE Price: $50.57 |
| 33 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $2.99 |
| 33 |
67-8030 |
PLUG ASM This part replaces 88-8210. Price: $29.67 |
| 34 |
237-80 |
O-RING Price: $6.10 |
| 34 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 35 |
25-2690 |
DISCONTINUED Price: Call Us |
| 35 |
530025875 |
RING-PISTON (HOOKED) Price: $4.99 |
| 36 |
93-4133 |
SEAL-LIP This part replaces 67-8060. Price: $37.43 |
| 37 |
67-8050 |
BEARING-NEEDLE Price: $54.10 |
| 38 |
322-4 |
SCREW-HH Price: $0.35 |
| 39 |
530032103 |
Inner Bearing Price: $10.86 |
| 39 |
95-5812 |
GEROTOR ASM Price: $765.80 |
| 40 |
237-95 |
O-RING Price: $11.97 |
| 40 |
530015787 |
RING-RETAINING Price: $2.99 |
| 41 |
530019158 |
SEAL-CRANKSHAFT Price: $4.99 |
| 42 |
25-2480 |
SPRING-VALVE Price: $4.93 |
| 42 |
530032102 |
BEARING-R8 (OUTER) Price: $9.99 |
| 43 |
25-2500 |
SHAFT-TRUNNION Price: $191.66 |
| 43 |
530015789 |
RING-RETAINING (SHAFT) Price: $3.99 |
| 44 |
252-82 |
BEARING-NEEDLE Price: $51.31 |
| 45 |
117-2700 |
HOUSING KIT This part replaces 88-8170. Price: $2,321.28 |
| 46 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 46 |
530069310 |
KIT-MUFFLER This part replaces 530069257. Price: $11.99 |
| 47 |
530036409 |
SPRING-MUFFLER Price: $2.99 |
| 47 |
95-5810 |
SHAFT Price: $874.65 |
| 48 |
25-2450 |
PLATE-SWASH, VARIABLE Price: $896.81 |
| 48 |
530071581 |
CYLINDER This part replaces 530069628. Price: $64.99 |
| 49 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 49 |
503235112 |
BPMR6A NGK SPARK PLUG This part replaces 952030201. Price: $8.99 |
| 50 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 50 |
530001624 |
SCREW 1/4-20 X 7/8 Price: $2.99 |
| 51 |
110-6341 |
BEARING-ROLLER This part replaces 46-8400. Price: $41.33 |
| 51 |
530039146 |
IGNITION. Price: $33.99 |
| 52 |
530015126 |
KEY-FLYWHEEL Price: $2.99 |
| 53 |
132-4357 |
SEAL-LIP This part replaces 88-8230. Price: $44.12 |
| 53 |
530039189 |
FLYWHEEL Price: $22.99 |
| 54 |
530016030 |
WASHER This part replaces 530347987. Price: $2.99 |
| 55 |
323-45 |
SCREW-HH Price: $0.68 |
| 55 |
530014320 |
FAN HSG. ASSY. Price: $15.99 |
| 57 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $7.99 |
| 58 |
530150318 |
STARTER HANDLE GRAY This part replaces 530029636. Price: $4.99 |
| 59 |
530069232 |
KIT-ROPE Price: $4.99 |
| 61 |
530094189 |
WASHER-CLUTCH Price: $5.99 |
| 62 |
530069254 |
KIT-CLUTCH ASS'Y Price: $9.99 |
| 63 |
530015796 |
WASHER-BELLEVILLE Price: $2.99 |
| 64 |
530001733 |
NUT Price: $4.75 |
| 65 |
530014324 |
CLUTCH HSG. Price: $19.99 |
| 66 |
530015767 |
SCREW-10-24 X 1-3/8 (UN Price: $2.99 |
| 67 |
530027511 |
SPACER-CLUTCH Price: $5.99 |
| 68 |
530015770 |
Screw Price: $0.23 |
| 69 |
530015769 |
SCREW-10-24X1-3/8-TAPTI Price: $2.99 |
| 70 |
530015496 |
SCREW-10-16 X 1/2 HI-LO Price: $2.99 |
| 71 |
530027523 |
RETAINER Price: $3.99 |
| 72 |
530015768 |
LOCKNUT-HEX 10-24 Price: $3.99 |
| 74 |
952701612 |
Spark Arrestor Kit Price: $5.50 |
| 75 |
530016080 |
SCREW Price: $2.99 |
| 76 |
530025995 |
TAB-45 DEGREE ELECTRICAL Price: $0.99 |
| 77 |
530069358 |
TOP COVER SWITCH KIT This part replaces 530029771. Price: $25.99 |
