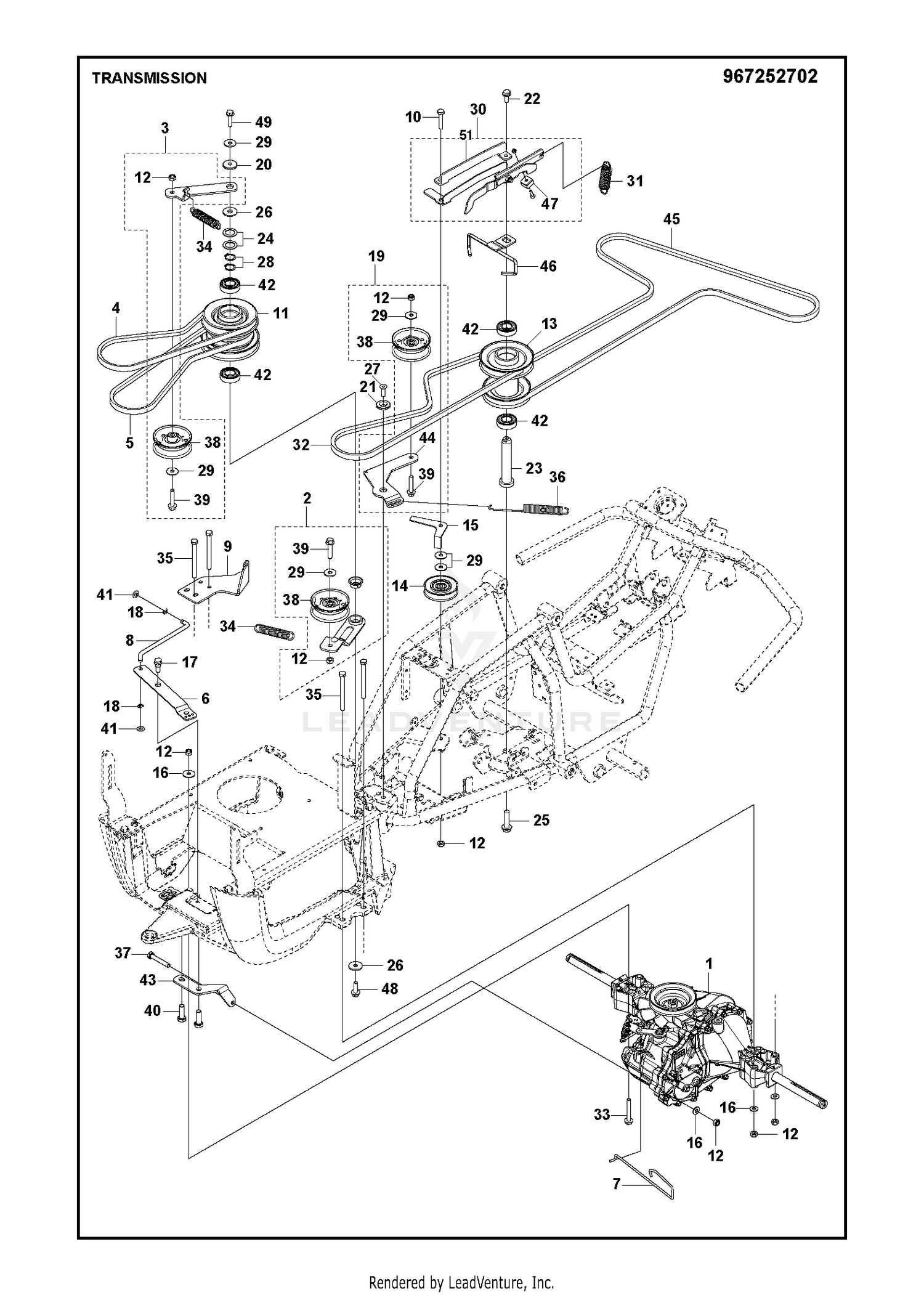

TRANSMISSION 2
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-7003 | STARTER Price: $761.46 |
| 1 | 597598301 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 125-7004 | SWITCH ASM Price: $310.64 |
| 2 | 580279001 | BELT TENSIONER ASSY Price: $37.99 |
| 3 | 125-7112 | ARMATURE ASM Price: $1,004.37 |
| 3 | 580278701 | BELT TENSIONER ASSY Price: $34.99 |
| 4 | 125-7252 | BEARING-BALL Price: $30.58 |
| 4 | 589563101 | BELT Price: $22.99 |
| 5 | 125-7249 | BEARING, BALL Price: $74.15 |
| 5 | 589561702 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 125-7113 | FIELD COIL ASM Price: $188.98 |
| 6 | 580277801 | LINK ARM Price: $11.99 |
| 7 | 125-7114 | BRUSH Price: $7.85 |
| 7 | 580374901 | ARM Price: $8.99 |
| 8 | 125-7163 | SCREW Price: $4.64 |
| 8 | 580291101 | ROD Price: $12.99 |
| 9 | 125-7115 | COVER Price: $48.60 |
| 9 | 580291202 | NEEDS DESCRIPTION Price: Call Us |
| 10 | 125-7116 | BRUSH HOLDER ASM Price: $59.41 |
| 10 | 725245951 | SCREW Price: $4.99 |
| 11 | 125-7114 | BRUSH Price: $7.85 |
| 11 | 581738501 | PULLEY Price: $74.99 |
| 12 | 125-7036 | SPRING Price: $8.92 |
| 12 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 13 | 125-7164 | CASE-GEAR Price: $148.50 |
| 13 | 581740201 | PULLEY Price: $64.99 |
| 14 | 125-7005 | HOUSING Price: Call Us |
| 14 | 506946901 | PULLEY Price: $34.99 |
| 15 | 125-7165 | LEVER SET Price: $12.41 |
| 15 | 577418501 | BRACKET Price: $2.99 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 506597401 | BOLT Price: $5.99 |
| 18 | 125-7037 | DUST COVER ASM Price: $32.44 |
| 18 | 735311020 | C-WASHER Price: $2.99 |
| 19 | 125-7117 | BOLT-THROUGH Price: $18.16 |
| 19 | 522603301 | BELT TENSIONER Price: $31.99 |
| 20 | 125-7166 | PINION ASM Price: $520.47 |
| 20 | 584288604 | Washers Price: $3.99 |
| 21 | 125-7250 | CLUTCH ASM Price: $223.38 |
| 21 | 581765201 | WASHER Price: $2.99 |
| 22 | 125-7251 | BEARING-BALL Price: $113.29 |
| 22 | 506570104 | BOLT Price: $4.99 |
| 23 | 125-7253 | BEARING-BALL Price: $30.58 |
| 23 | 574259801 | SHAFT Price: $19.99 |
| 24 | 125-7167 | SHAFT Price: $105.30 |
| 24 | 506504805 | WASHER Price: $3.99 |
| 25 | 125-7168 | STOPPER SET Price: $14.88 |
| 25 | 506675402 | BOLT Price: $5.99 |
| 26 | 734117441 | WASHER Price: $3.99 |
| 27 | 725645301 | SCREW Price: $3.99 |
| 28 | 735312200 | RETAINING RING SGA 20 Price: $2.99 |
| 29 | 125-7210 | BOLT Price: $2.32 |
| 29 | 734116441 | SPACER Price: $3.99 |
| 30 | 125-7211 | BOLT Price: $3.48 |
| 30 | 587977901 | NEEDS DESCRIPTION Price: Call Us |
| 31 | 125-7169 | COVER Price: $7.32 |
| 31 | 575928901 | SPRING Price: $5.99 |
| 32 | 581759901 | BELT INTERMEDIATE 42 SD Price: $32.99 |
| 33 | 506570107 | SCREW EHHFM Price: $5.99 |
| 34 | 574506101 | SPRING Price: $5.99 |
| 35 | 725246951 | Screw Price: $3.99 |
| 36 | 575567202 | SPRING Price: $6.99 |
| 37 | 725246151 | BOLT Price: $4.99 |
| 38 | 539919078 | IDLER PULLEY Price: $27.99 |
| 39 | 725245951 | SCREW Price: $4.99 |
| 40 | 725249571 | SCREW Price: $6.99 |
| 41 | 735585201 | Price: $1.09 |
| 42 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 43 | 597984301 | NEEDS DESCRIPTION Price: Call Us |
| 44 | 522602901 | BELT TENSIONER Price: $9.99 |
| 45 | 589533101 | NEEDS DESCRIPTION Price: Call Us |
| 46 | 585295702 | NEEDS DESCRIPTION Price: Call Us |
| 47 | 506833601 | BRAKE PAD Price: $24.99 |
| 49 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
