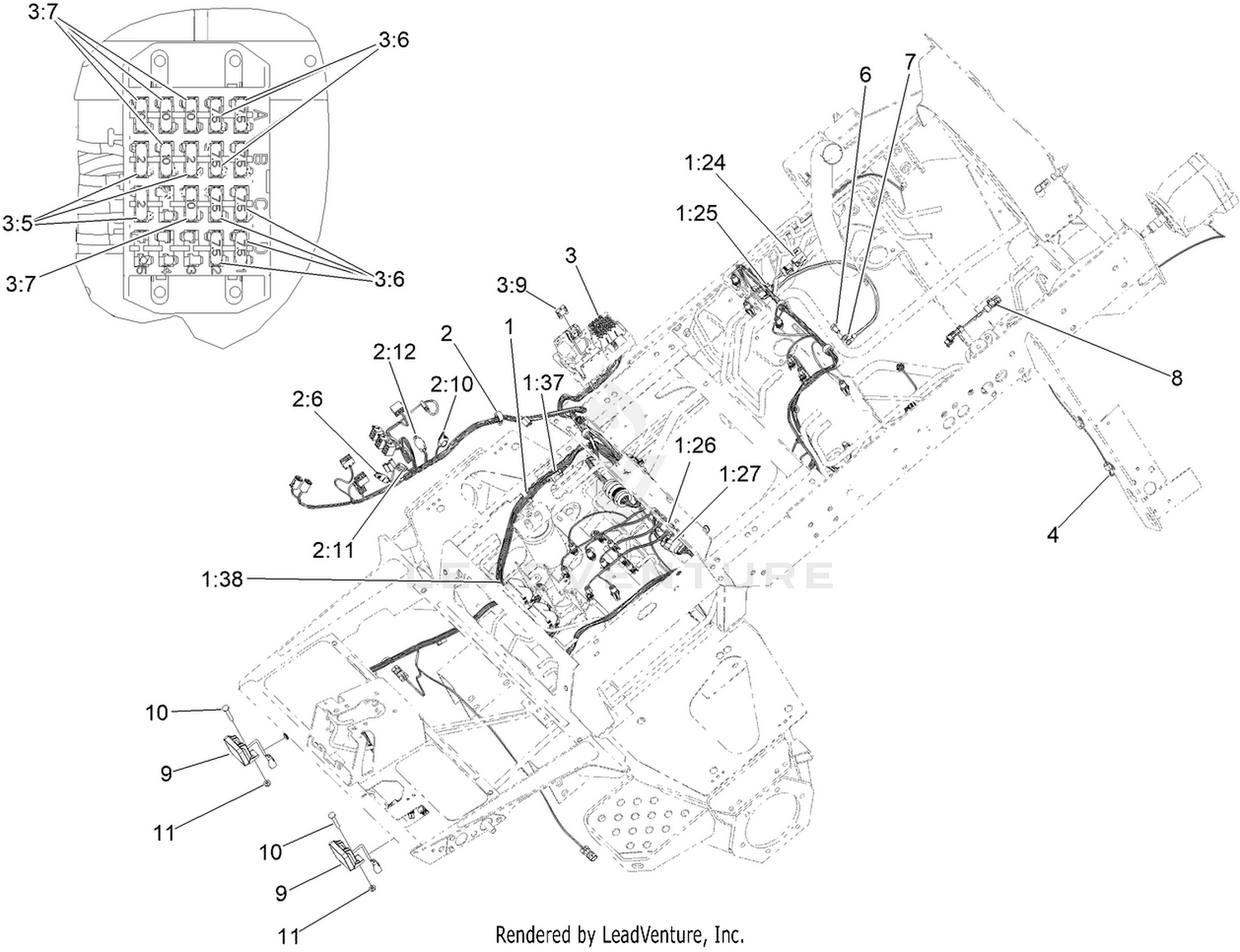

Electrical Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 122-1263 | HARNESS-WIRE, MAIN GM4500 T4 Price: $1,845.82 |
| 2 | 122-1264 | HARNESS-WIRE, SEAT/CONSOLE GM45/4700 T4 Price: $623.70 |
| 3 | 122-1262 | HARNESS-WIRE, PWR CTR T4 Price: $462.68 |
| 4 | 122-1273 | HARNESS-WIRE, GM4700 MAIN Price: $804.04 |
| 6 | 33115-020 | SCREW-HH Price: $0.88 |
| 7 | 3255-2 | WASHER-LOCK, EXT Price: $0.95 |
| 8 | 115-1931 | HARNESS-WIRE, FUEL PUMP ADAPTER Price: $45.41 |
| 9 | 140-6990 | LIGHT-WORK, LED This part replaces 139-5990. Price: $79.12 |
| 10 | 3230-7 | BOLT-CARR Price: $0.88 |
