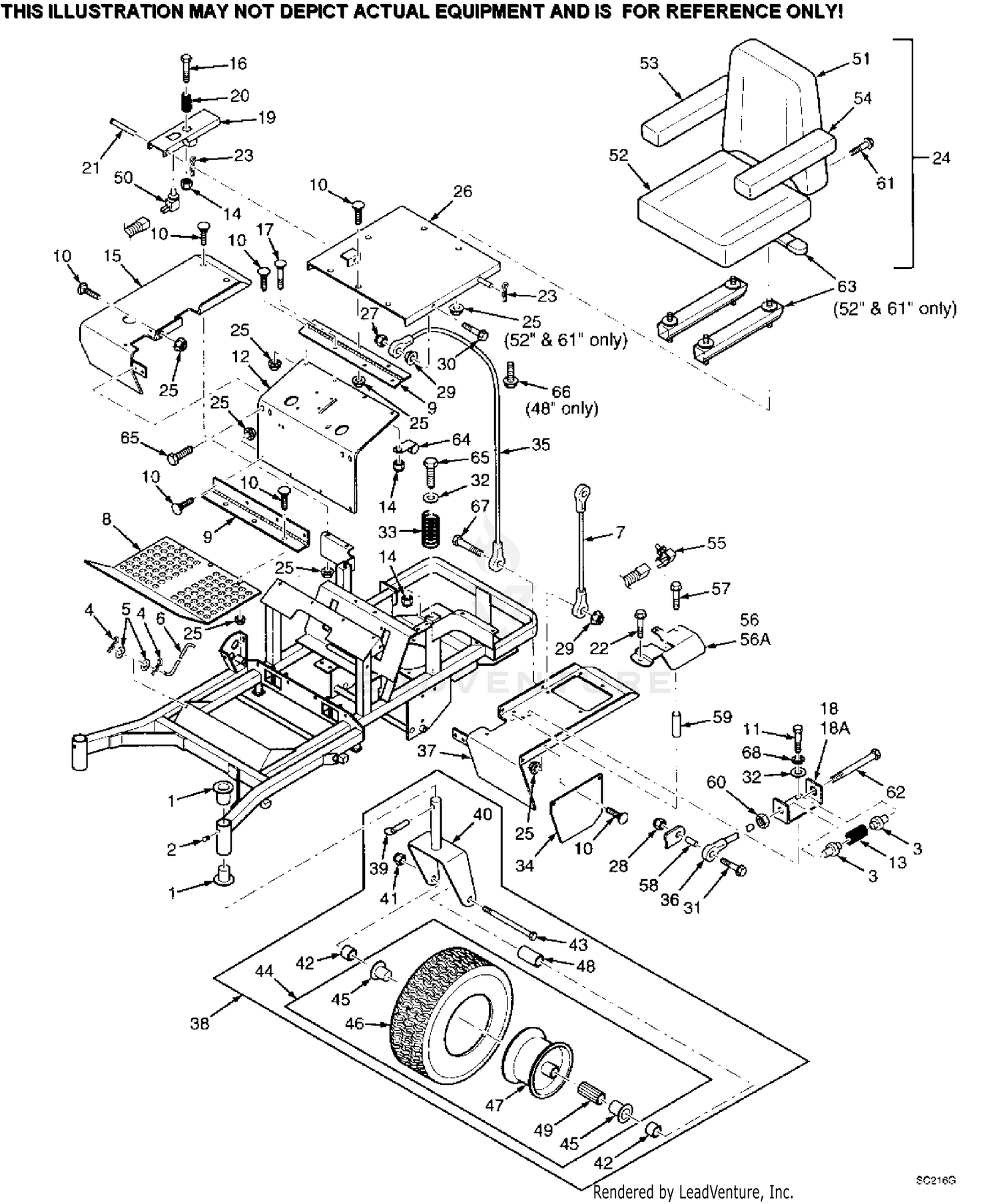

| Ref | Part Number | Description |
|---|
| 1 |
48100-08 |
BUSHING Price: Call Us |
| 2 |
48114-04 |
GREASE FITTING Price: Call Us |
| 3 |
43257 |
BUSHING, SPRING KEEPER Price: Call Us |
| 4 |
04062-02 |
HAIR PIN, .08 DIAMETER X 1-3/16" Price: Call Us |
| 5 |
04041-07 |
FLATWASHER, 3/8"(.391 X .738 X .105) Price: Call Us |
| 6 |
44062 |
ROD, FOOT PLATE LATCH Price: Call Us |
| 7 |
481086 |
CABLE, SEAT STOP Price: Call Us |
| 8 |
421589 |
FOOT PLATE Price: Call Us |
| 9 |
481049 |
HINGE Price: Call Us |
| 10 |
04003-12 |
BOLT, CARRIAGE 5/16-18 X 3/4" Price: Call Us |
| 11 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 12 |
421251 |
KICK PLATE Price: Call Us |
| 13 |
48746 |
NEUTRAL RETURN SPRING Price: Call Us |
| 14 |
04021-10 |
NUT, ELASTIC STOP 5/16-18 Price: Call Us |
| 15 |
46505 |
FENDER ASSEMBLY, RH(WITH DECAL) Price: Call Us |
| 16 |
04001-73 |
BOLT, HEX HEAD 5/16-18 X 3-3/4" Price: Call Us |
| 17 |
04003-04 |
BOLT, CARRIAGE 5/16-18 X 1" Price: Call Us |
| 18 |
421411 |
RETAINER, NEUTRAL SPRING, LH Price: Call Us |
| 18A |
421412 |
RETAINER, NEUTRAL SPRING, RH Price: Call Us |
| 19 |
45405 |
SEAT SWITCH BRACKET Price: Call Us |
| 20 |
48463 |
SPRING Price: Call Us |
| 21 |
04064-04 |
CLEVIS PIN Price: Call Us |
| 22 |
04017-15 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 1/2" Price: Call Us |
| 23 |
04062-02 |
HAIR PIN, COTTER Price: Call Us |
| 24 |
482027 |
Seat Assembly This part replaces 48831. Price: Call Us |
| 25 |
04019-03 |
NUT, SERRATED FLANGE HEX 5/16-18 Price: Call Us |
| 26 |
46754 |
Seat Base This part replaces 45599. Price: Call Us |
| 27 |
04021-08 |
NUT, ELASTIC STOP 1/4-20 Price: Call Us |
| 28 |
04021-09 |
NUT, ELASTIC STOP 3/8-16 Price: Call Us |
| 29 |
04019-02 |
NUT, SERRATED FLANGE HEX 1/4-20 Price: Call Us |
| 30 |
04017-06 |
BOLT, SERRATED FLANGE HEX HEAD 1/4-20 X 1" Price: Call Us |
| 31 |
04001-31 |
BOLT, HEX HEAD 3/8-16 X 2-1/2" Price: Call Us |
| 32 |
04040-15 |
FLATWASHER, 5/16"(.313 X .875 X .083) Price: Call Us |
| 33 |
48686 |
SEAT SPRING Price: Call Us |
| 34 |
421198 |
FENDER PANEL, LH Price: Call Us |
| 35 |
48566 |
CABLE, SEAT STOP Price: Call Us |
| 36 |
48464 |
BALL JOINT, NEUTRAL Price: Call Us |
| 37 |
45479 |
FENDER, LH Price: Call Us |
| 38 |
46392 |
CASTER WHEEL YOKE ASSEMBLY Price: Call Us |
| 39 |
04066-01 |
QUICK PIN Price: Call Us |
| 40 |
45325 |
CASTER WHEEL YOKE Price: Call Us |
| 41 |
04021-07 |
NUT, ELASTIC STOP 1/2-13 Price: Call Us |
| 42 |
43041 |
SPACER Price: Call Us |
| 43 |
04001-80 |
BOLT, HEX HEAD 1/2-13 X 6-1/2" Price: Call Us |
| 44 |
48537 |
WHEEL ASSEMBLY, COMPLETE Price: Call Us |
| 45 |
481770 |
Retainer This part replaces 48006-07. Price: Call Us |
| 46 |
481830 |
TIRE, 4.10/3.50 X 5 4 PLY This part replaces 48537-02. Price: Call Us |
| 47 |
481829 |
RIM, 5.0 X 3.25 W/GR ZERK & VLV This part replaces 48537-03. Price: Call Us |
| 48 |
43022 |
SLEEVE Price: Call Us |
| 49 |
481769 |
Roller Bearing .625 x 3.25" This part replaces 48006-06. Price: Call Us |
| 50 |
48717 |
SEAT SWITCH Price: Call Us |
| 51 |
484716 |
BACK CUSHION This part replaces 48704-02. Price: Call Us |
| 52 |
482111 |
Cushion, Lower Seat This part replaces 48704-03. Price: Call Us |
| 53 |
482108 |
Arm Pad, RH This part replaces 48704-04. Price: Call Us |
| 54 |
482107 |
Arm Pad, LH This part replaces 48704-05. Price: Call Us |
| 55 |
481474 |
Switch, Parking Brake This part replaces 48522. Price: Call Us |
| 56 |
421253 |
NEUTRAL LOCK BRACKET, RH Price: Call Us |
| 56A |
421252 |
NEUTRAL LOCK BRACKET, LH Price: Call Us |
| 57 |
04017-24 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X Price: Call Us |
| 58 |
43240 |
SPACER, NEUTRAL SPRING Price: Call Us |
| 59 |
43258 |
SPACER, NEUTRAL LOCK BRACKET Price: Call Us |
| 60 |
04020-14 |
NUT, HEX 3/8-24 UNF Price: Call Us |
| 61 |
04010-22 |
Screw w/washer, 1/4-20 x .75" This part replaces 48704-06. Price: Call Us |
| 62 |
04001-99 |
BOLT, HEX HEAD 3/8-24 X 6-1/2", UNF Price: Call Us |
| 63 |
46570 |
Seat Adjuster Track This part replaces 48931. Price: Call Us |
| 64 |
48030-09 |
CABLE CLAMP, .50 ID Price: Call Us |
| 65 |
04001-09 |
BOLT, HEX HEAD 5/16-18 X 1" Price: Call Us |
