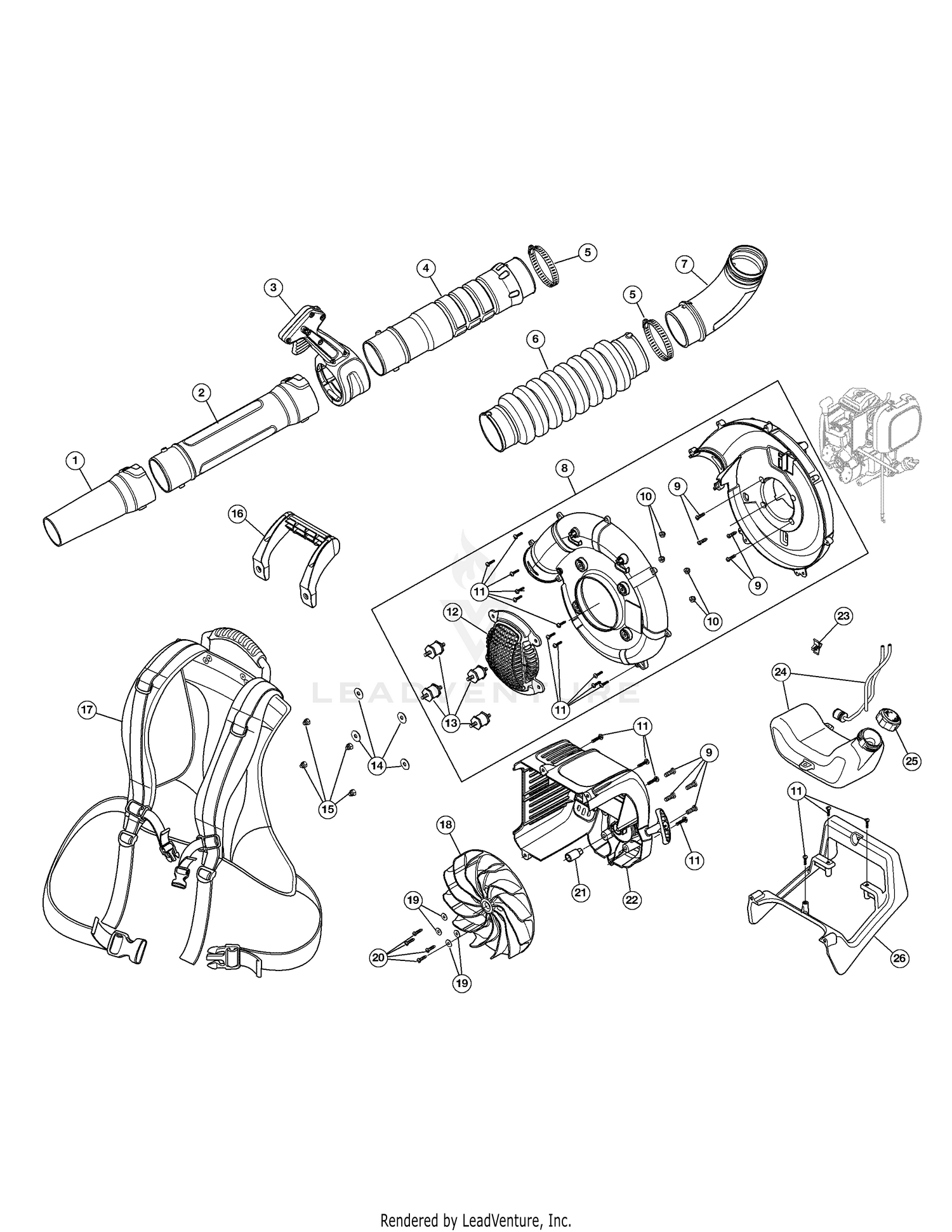

| Ref | Part Number | Description |
|---|
| 1 |
753-06000 |
Concentrator Nozzle Price: $12.22 |
| 2 |
753-05971 |
Lower Blower Tube Price: $13.63 |
| 3 |
753-05975 |
Throttle Grip Assembly Price: $47.13 |
| 4 |
753-05991 |
Upper Blower Tube Price: $18.22 |
| 5 |
726-04080 |
Clamp Price: $10.01 |
| 6 |
753-05641 |
Flex Tube Price: $27.99 |
| 7 |
753-05990 |
Elbow Tube Price: $16.10 |
| 8 |
753-05658 |
Impeller Housing Assembly Price: $69.13 |
| 9 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 10 |
712-0324 |
Nut Price: $3.38 |
| 11 |
710-04194 |
Screw Price: $3.66 |
| 12 |
753-05649 |
Intake Cover Price: $6.36 |
| 13 |
753-05648 |
Isolator Mount Price: $12.62 |
| 14 |
4150 |
Washer This part replaces 791-182678. Price: $2.63 |
| 15 |
712-0442 |
Cap Lock Nut, 1/4-20 This part replaces 912-0442. Price: $6.01 |
| 16 |
731-06044-1 |
Impeller Housing Handle Price: $8.25 |
| 17 |
751-15097 |
Harness Price: $61.83 |
| 18 |
753-07100 |
Impeller (Incl. 19 & 20) Price: $14.74 |
| 19 |
791-182409 |
Washer Price: $4.04 |
| 20 |
792-9517-1 |
SCREW 5X25MM TAP T-25 Not Available Price: |
| 21 |
753-06104 |
Electric Starter Adapter Price: $3.61 |
| 22 |
753-06683 |
Engine Cover Assembly (Incl. 9 & 11) Not Available Price: |
| 23 |
731-06074 |
Throttle Retaining Clip Not Available Price: |
| 24 |
753-05715 |
Fuel Tank Assembly (Incl. 25) Price: $51.11 |
| 25 |
753-05289 |
Fuel Tank Cap Price: $20.00 |
