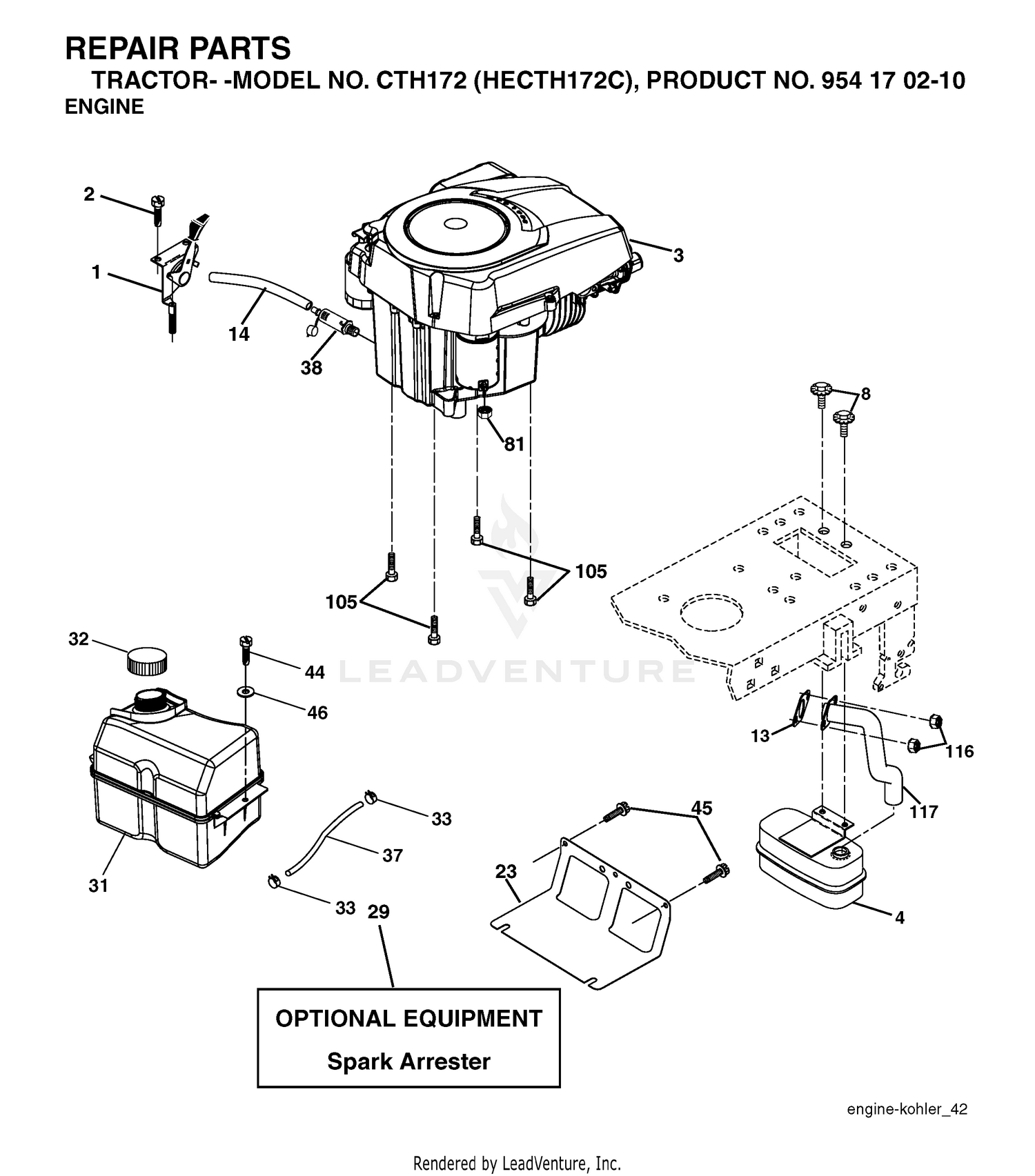

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
32128-23 |
NUT-HF Price: $1.51 |
| 4 |
3290-216 |
WASHER Price: $3.83 |
| 4 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 8 |
47-3840 |
ELBOW-ORIFICE (.094) Price: $37.03 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
20-4390 |
SPACER Price: $12.54 |
| 10 |
115-4948-01 |
HYDRAULIC CYLINDER ASM (12.19 STROKE) Price: $935.73 |
| 11 |
11-5630-01 |
STOP WA NO 6-7 This part replaces 11-5630. Price: $300.49 |
| 12 |
11-4590 |
PAD-BUMPER Price: $21.30 |
| 13 |
11-5270 |
WASHER-BUMPER Price: $12.82 |
| 13 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 14 |
322-6 |
SCREW-HH Price: $0.45 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 18 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 20 |
37-2910-01 |
REST-CYLINDER This part replaces 37-2910. Price: $99.17 |
| 21 |
325-6 |
SCREW-HH Price: $1.42 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
3-0144 |
SHAFT Price: $53.89 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532185534. Price: $44.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 117 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
