| Ref | Part Number | Description |
|---|
| 1 |
114-2714 |
LEVER-BRAKE This part replaces 100-3002-03. Price: $62.42 |
| 1 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 2 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 2 |
532132752 |

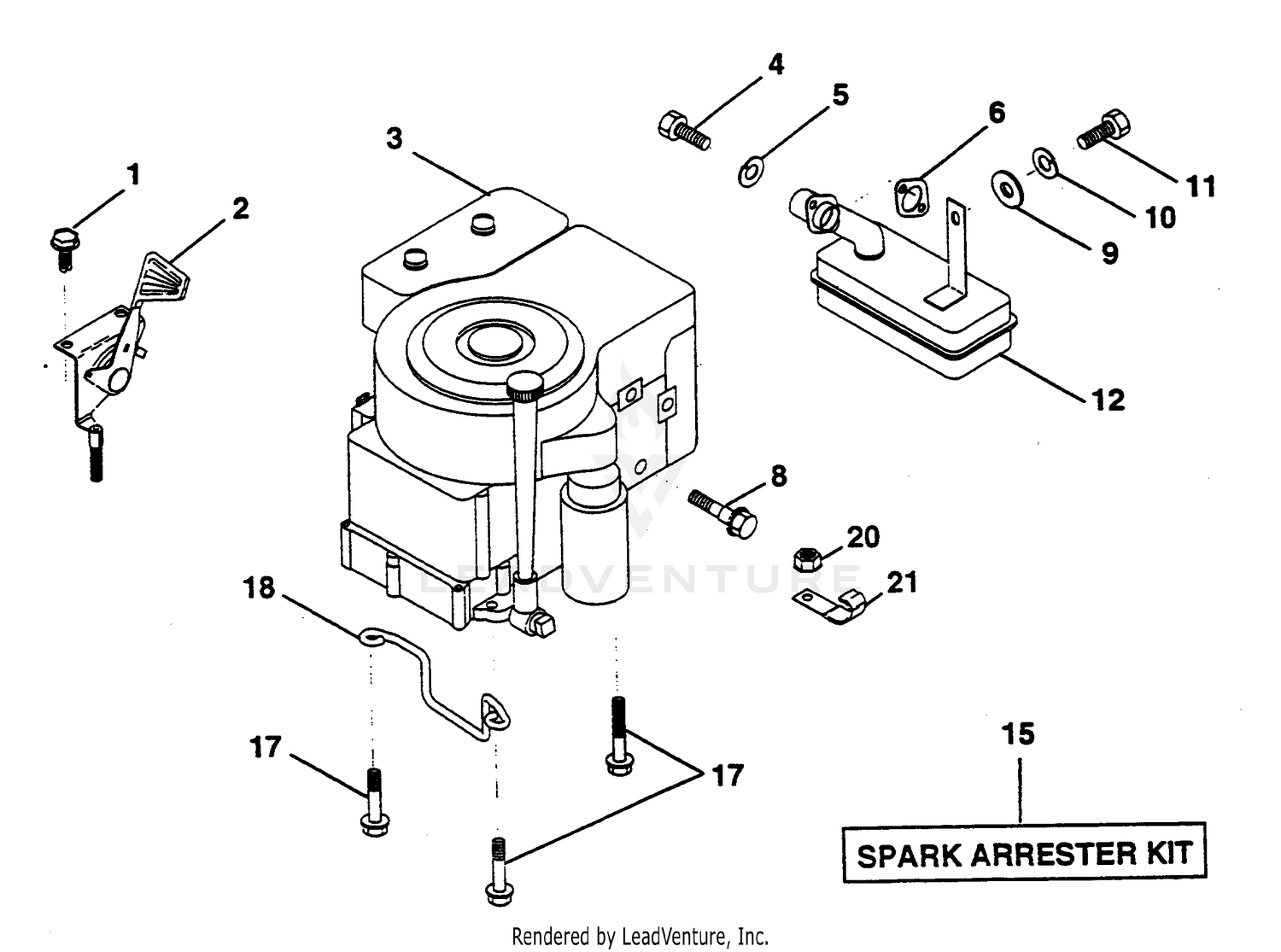

Control, Throttle Price: $17.99 |
| 3 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 4 |
532192334 |
Screw Socket Hd 5/16-18 x .75 This part replaces 871070512. Price: $2.99 |
| 5 |
100-3000-03 |
RH BRAKE ARM ASM Price: $158.89 |
| 5 |
810040500 |
Washer, Lock, Heavy Helical Spring 5/16 Price: $2.99 |
| 6 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532125593. Price: $7.99 |
| 6 |
93-4849 |
BEARING-BLOCK, PILLOW Price: $24.13 |
| 7 |
32151-83 |
RING-SNAP Price: $0.34 |
| 8 |
532121094 |
Bolt, Shoulder 5/16 Price: $2.99 |
| 8 |
93-5475-03 |
BRAKE LATCH ASM Price: $132.94 |
| 9 |
100-2997-03 |
LH BRAKE ARM ASM Price: $166.55 |
| 9 |
734115201 |
WASHER - M6 This part replaces 819101216. Price: $1.99 |
| 10 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 10 |
810040400 |
Washer, Lock, Heavy Helical Spring 1/4 Price: $3.99 |
| 11 |
100-5540 |
STRAP-BRAKE Price: $32.46 |
| 12 |
283-61 |
PIN-YOKE Price: $1.56 |
| 12 |
532137437 |
Muffler Price: $173.99 |
| 13 |
93-5262 |
SPRING-EXTENSION Price: $10.21 |
| 14 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 15 |
532137180 |
Arrester, Spark (Optional Equipment) Price: $128.99 |
| 16 |
93-5568 |
ARM-LOCK Price: $17.77 |
| 17 |
322-6 |
SCREW-HH Price: $0.45 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $3.99 |
| 18 |
322-4 |
SCREW-HH Price: $0.35 |
| 18 |
532126636 |
Keeper, Ground Drive Belt Price: $5.99 |
| 19 |
105-4553-03 |
LH PEDAL ASM Price: $71.10 |
| 20 |
873510600 |
Nut, Hex, Keps 3/8-16 Price: $3.99 |
| 20 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7570. Price: $27.95 |
| 21 |
105-4554-03 |
RH PEDAL ASM Price: $71.10 |
