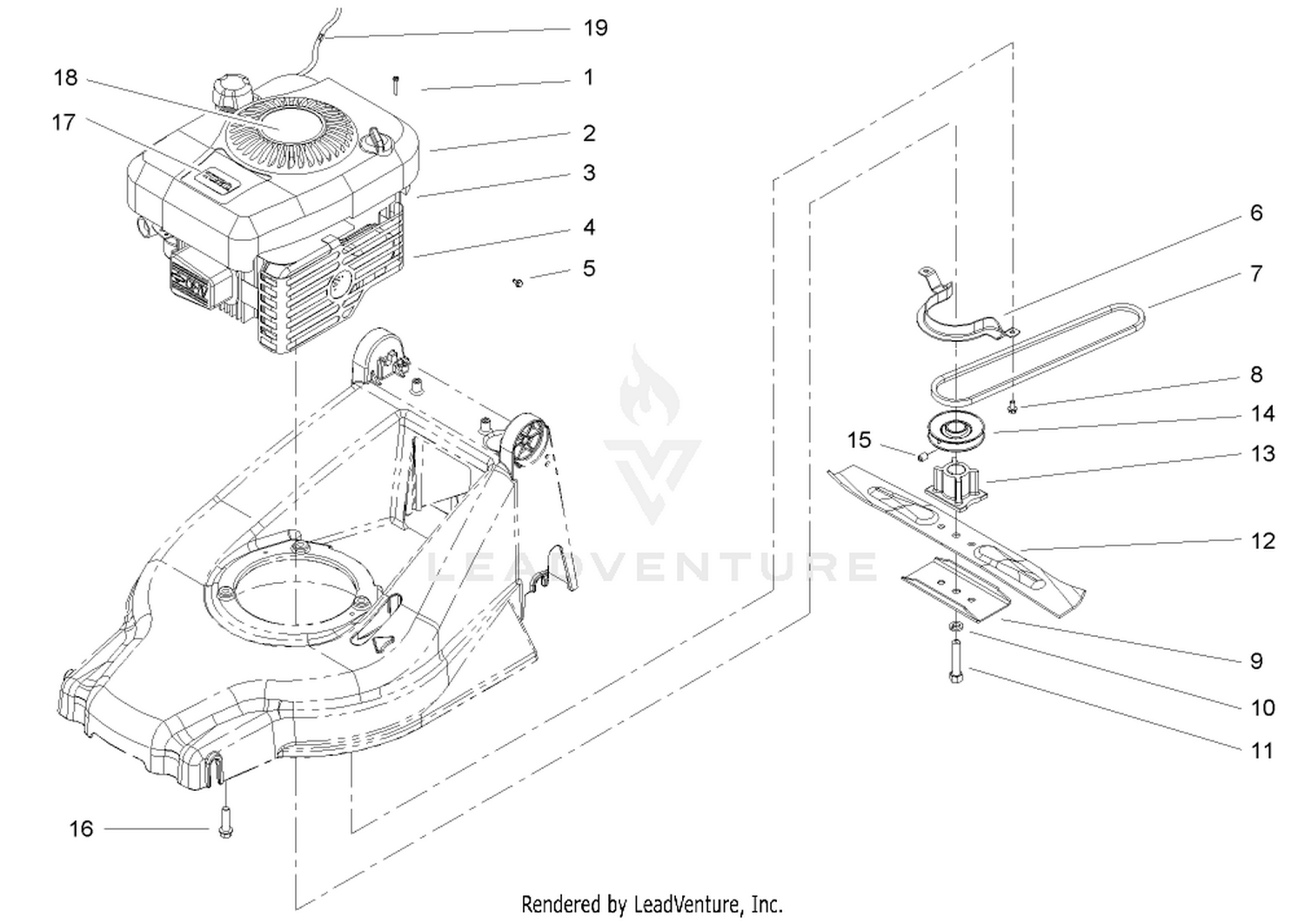

Engine and Blade Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32144-97 | SCREW-PPH, PLASTITE Price: $0.43 |
| 2 | 105-8564 | SHROUD-QUANTUM Price: $50.37 |
| 4 | 104-7577-03 | SHIELD-MUFFLER Price: $16.78 |
| 5 | 104-2065 | SCREW-HWH Price: $0.28 |
| 6 | 100-1523-03 | GUIDE-BELT, ENGINE Price: $11.31 |
| 7 | 93-0232 | V-BELT Price: $12.03 |
| 8 | 32144-4 | SCREW-HWH Price: $1.29 |
| 9 | 80-0510-03 | STIFFENER-BLADE Price: $10.93 |
| 10 | 3253-22 | WASHER-LOCK Price: $2.09 |
| 11 | 100-4368 | BOLT-BLADE Price: $13.23 |
| 12 | 106-5781-03 | BLADE-48 CM Price: $37.63 |
| 13 | 104-7554 | RETAINER-BLADE Price: $53.51 |
| 14 | 100-1102 | PULLEY ASM Price: $61.65 |
| 15 | 105-8875 | SCREW-SET, CONE POINT This part replaces 104-0214. Price: $6.42 |
| 16 | 32144-102 | SCREW-HWH Price: $3.19 |
| 17 | 98-3206 | DECAL Price: $1.99 |
| 18 | 106-5790 | DECAL Price: $9.51 |
