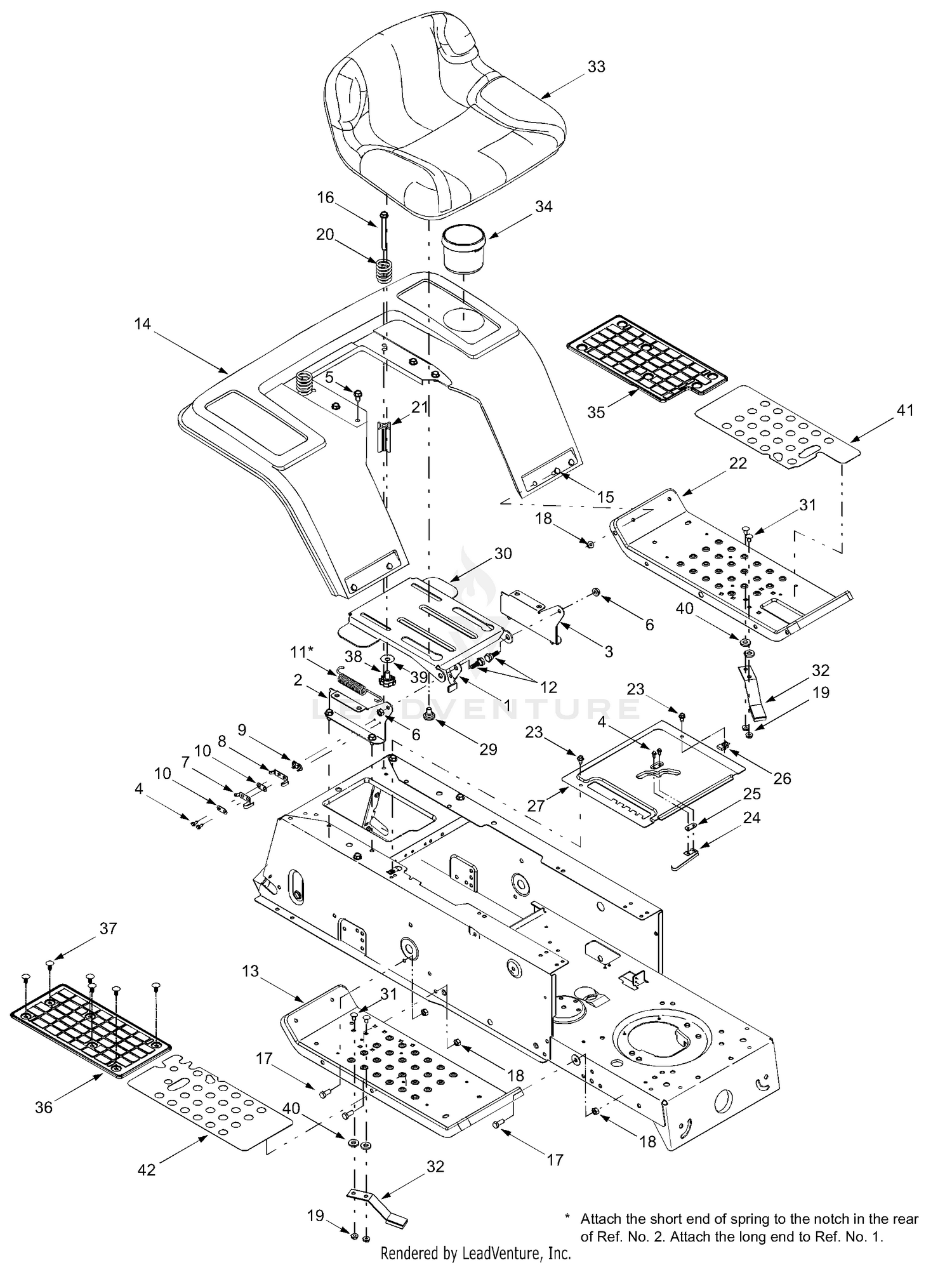

| Ref | Part Number | Description |
|---|
| 1 |
17239C |
BRACKET-SEAT LIFT Not Available Price: |
| 2 |
17950A-0637 |
R. H. Pivot Seat Support Brkt. This part replaces 17950A. Price: $20.39 |
| 3 |
17951A-0637 |
L.H. Pivot Seat Support Brkt. This part replaces 17951A. Price: $23.40 |
| 4 |
710-0227 |
Self-tapping Screw, #8-18 x .50 Price: $3.90 |
| 5 |
710-0726 |
Self-tapping Screw, 5/16-12 x .75 Price: $3.82 |
| 6 |
712-0429 |
Hex Lock Nut, 5/16-18 Price: $3.56 |
| 7 |
925-1303 |
Outer Seat SPring This part replaces 725-1303. Price: $5.58 |
| 8 |
725-1439 |
Inner Seat Spring Switch Price: $7.18 |
| 9 |
726-0278 |
Insulator Plate Boss Price: $5.95 |
| 10 |
726-0279 |
Insulator Plate Price: $3.22 |
| 11 |
932-0581B |
Extension Spring This part replaces 732-0581B. Price: $12.55 |
| 12 |
738-0296 |
Shoulder Screw, .437 x .286 Price: $3.93 |
| 13 |
17770H |
RUNNING BOARD Not Available This part replaces 17770G. Price: |
| 15 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 16 |
710-1208 |
Self-tapping Screw, 5/16-18 x 3.5 Price: $6.07 |
| 17 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 18 |
712-0429 |
Nylon Lock Nut, 5/16-18 Price: $3.56 |
| 19 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 20 |
732-04038 |
COMPRESSION SPRING Not Available Price: |
| 21 |
750-04212 |
SPACER Not Available Price: |
| 22 |
783-04139 |
RUNNING BOARD (LH) Not Available Price: |
| 23 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 24 |
725-1643 |
Spring Switch, Long Price: $8.98 |
| 25 |
926-0320 |
Insulator Nut Plate This part replaces 726-0320. Price: $6.01 |
| 26 |
726-3054 |
U-Clip Nut, 1/4-20 Price: $4.08 |
| 27 |
783-04050A-0637 |
SHIFT COVER 8 SPEED Not Available This part replaces 783-04050A. Price: |
| 28 |
710-0870 |
Screw, 3/8-16 x .625 Price: $5.44 |
| 29 |
738-04012C |
Shoulder Screw, .625 x .145, 3/8-16 This part replaces 738-04012. Price: $4.75 |
| 30 |
783-04081A |
Seat Pivot Bracket, Manual Adjust Price: $26.56 |
| 31 |
710-0703 |
Carriage Screw, 1/4-20 x .75 Price: $3.66 |
| 32 |
961-0168D |
Blade Brake Assembly This part replaces 761-0168B. Price: $28.06 |
| 33 |
757P06245 |
MEDIUM BACK SEAT This part replaces 757-04021. Price: $196.09 |
| 34 |
731-04591A |
Cup Holder This part replaces 731-04591. Price: $13.84 |
| 35 |
735-04009 |
FOOT PAD (LH) Not Available Price: |
| 36 |
735-0239A |
FOOT PAD This part replaces 735-0196. Price: $10.76 |
| 37 |
726-3046 |
Ratchet Clip, .250 Dia Price: $3.71 |
| 38 |
720-04009A |
SEAT ADJUSTMENT KNOB This part replaces 720-04009. Price: $14.52 |
| 39 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 40 |
936-3008 |
Flat Washer, .344 x .750 x .120 This part replaces 736-3008. Price: $6.24 |
| 41 |
723-04012 |
ABRASIVE FOOT PAD Not Available Price: |
