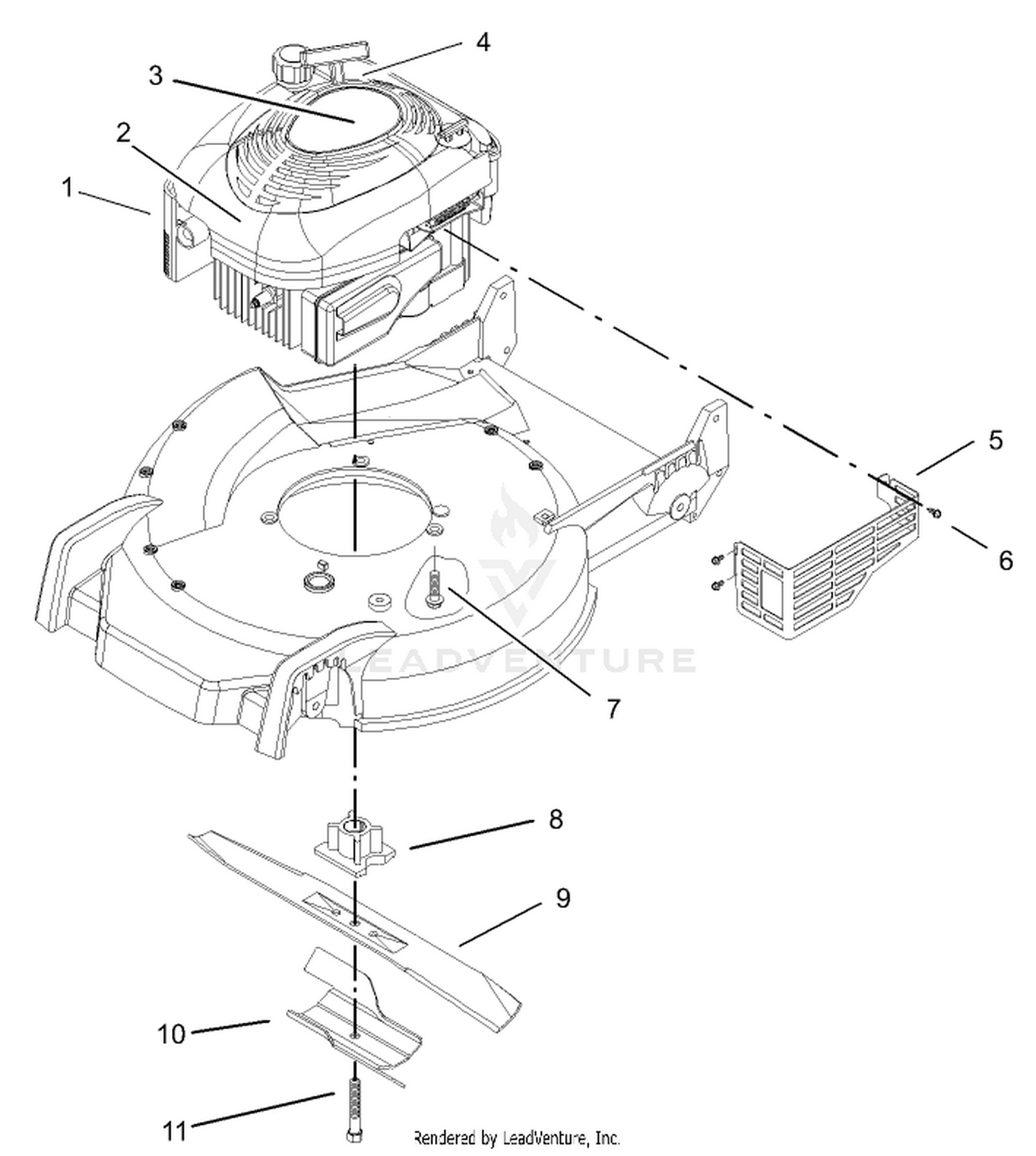

Engine and Blade Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 98-3206 | DECAL Price: $1.99 |
| 3 | 105-8570 | DECAL-RECOIL Price: $5.35 |
| 4 | 2210-316 | STOP-ROPE Price: $4.41 |
| 5 | 104-7577-03 | SHIELD-MUFFLER Price: $16.78 |
| 6 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
| 7 | 32144-102 | SCREW-HWH Price: $3.19 |
| 8 | 104-1007 | RETAINER-BLADE Price: $47.16 |
| 9 | 133-8183-03 | BLADE-RECYCLING, 21IN This part replaces 93-4106-03. Price: $19.68 |
| 10 | 105-6848-03 | ACCELERATOR-BLADE This part replaces 94-1608-03. Price: $11.94 |
