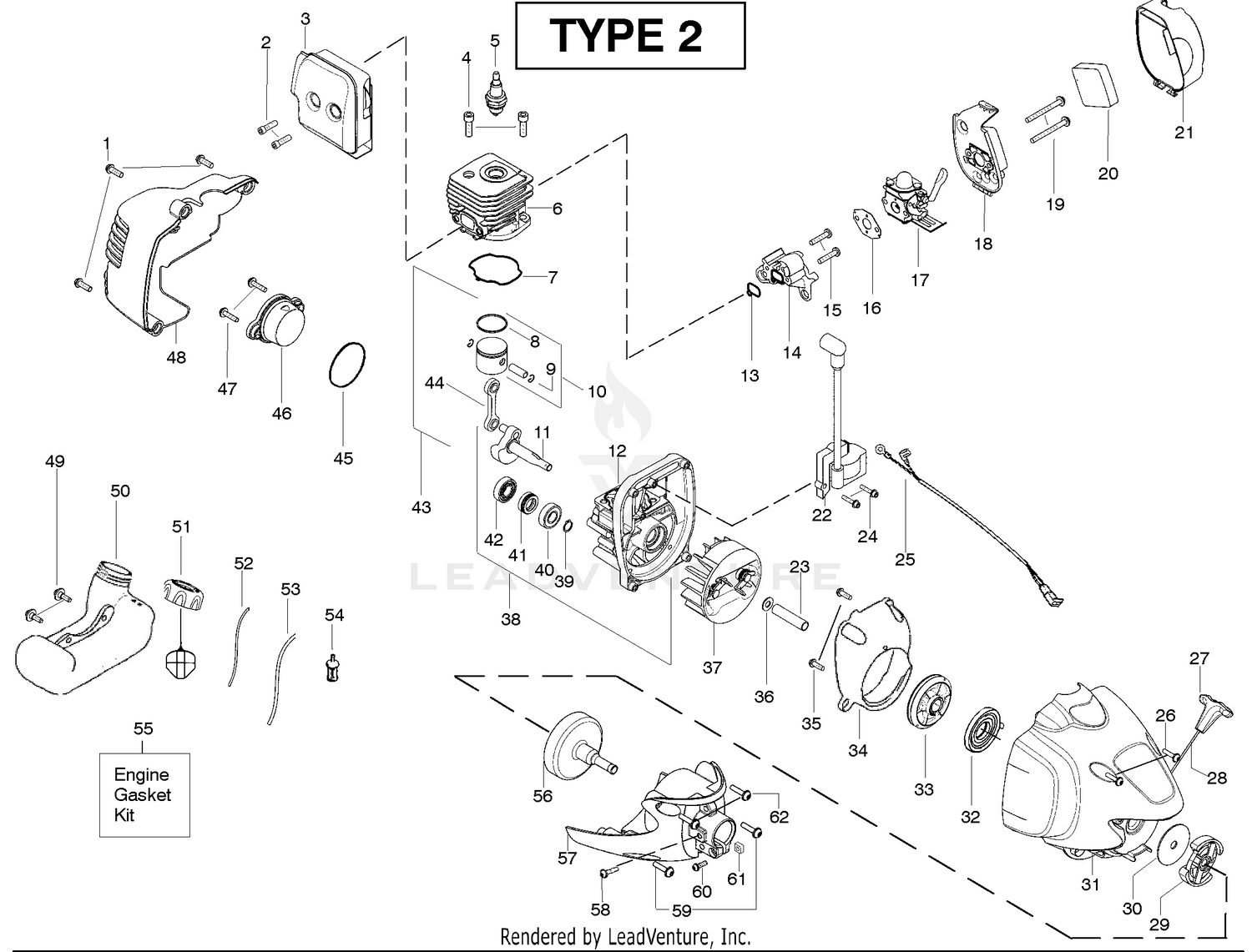

Engine Type 2
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015880 | Screw Price: $1.99 |
| 2 | 530058982 | Bolt-Muffler Price: $1.99 |
| 4 | 530015953 | Screw-Cylinder Price: $1.99 |
| 5 | 952030249 | Spark Plug (RCJ 6Y) Price: $3.99 |
| 6 | 530012541 | Cylinder Price: $11.99 |
| 7 | 530071750 | Seal-Cylinder (kit) Price: $8.99 |
| 8 | 545154001 | RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 | 530015162 | Retainer-Piston Pin Price: $1.99 |
| 11 | 545145802 | ASSY CRANKSHAFT This part replaces 530012579. Price: $17.99 |
| 13 | 530071750 | Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 | 530057547 | Adapter-Carb. Price: $7.99 |
| 15 | 530016441 | Screw Price: $1.99 |
| 16 | 530071750 | Gasket-Carb. (kit) Price: $8.99 |
| 18 | 545077501 | Air Box Price: $7.99 |
| 19 | 530016429 | Screw Price: $1.99 |
| 20 | 530036575 | Foam-Air Filter Price: $1.99 |
| 21 | 530057545 | Cover-Air Box Price: $3.99 |
| 22 | 545081826 | Kit - Ignition Module This part replaces 530039229. Price: $32.99 |
| 23 | 530059758 | Spacer-Flywheel Price: $4.99 |
| 24 | 530016357 | Screw Price: $1.99 |
| 25 | 530047278 | Assy-Switch wire Price: $4.99 |
| 26 | 530016386 | Screw Price: $5.99 |
| 27 | 530054834 | Handle-Starter Price: $1.99 |
| 28 | 530071798 | Kit - Rope Price: $3.99 |
| 29 | 530055122 | Assy-Clutch Price: $8.99 |
| 30 | 530094189 | Washer-Clutch Price: $2.99 |
| 31 | 545016004 | Assy.-Fan Hsg Price: $17.99 |
| 32 | 545008014 | KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 33 | 545050407 | Kit-Starter Pulley Price: $11.99 |
| 34 | 545080601 | Baffle Price: $6.99 |
| 35 | 530015880 | Screw Price: $1.99 |
| 36 | 530016463 | Washer-Clutch Flat Price: $1.99 |
| 37 | 530039243 | Assy-Flywheel Price: $27.99 |
| 39 | 530015941 | Retain. Ring-C'shaft Price: $1.99 |
| 40 | 530055728 | Outer Bearing Price: $6.99 |
| 41 | 530019264 | Seal-C'shaft Price: $2.99 |
| 42 | 530032125 | Inner Bearing Price: $11.99 |
| 44 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 45 | 530071750 | O-Ring-C'case (kit) Price: $8.99 |
| 47 | 530016386 | Screw Price: $5.99 |
| 48 | 530057539 | Shroud-Rear Price: $7.99 |
| 49 | 530016445 | Retainer-Tank Price: $1.99 |
| 51 | 530057973 | Assy-Fuel Cap Price: $7.99 |
| 52 | 530069247 | Kit-Fuel Line (Small) Price: $3.99 |
| 53 | 530069216 | Kit-Fuel Line (Large) Price: $3.99 |
| 54 | 530095646 | Assy-Fuel Pickup Price: $2.99 |
| 56 | 530150247 | Assy-Clutch Drum Price: $17.99 |
| 58 | 530016319 | Screw-Align Price: $1.99 |
| 59 | 530015772 | Screw Price: $1.99 |
| 60 | 530016381 | Screw 12-24 Price: $2.99 |
| 61 | 530016382 | Nut 12-24 Price: $2.99 |
| 62 | 530015814 | Screw Price: $1.99 |
