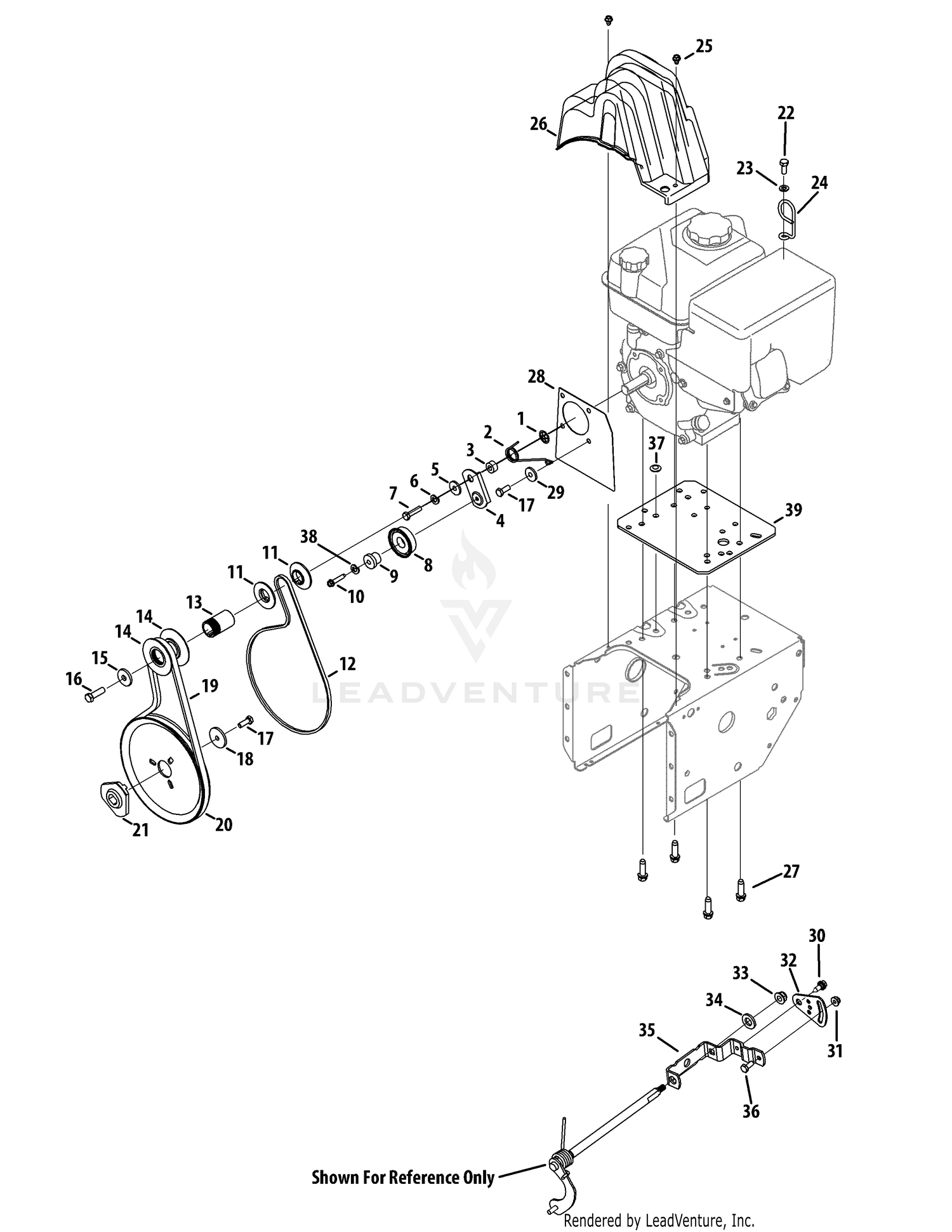

| Ref | Part Number | Description |
|---|
| 1 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 2 |
732-04308C |
Torsion Spring, .850 dia. x .333 lg. This part replaces 732-04308A. Price: $4.42 |
| 3 |
750-04477A |
Spacer, .340 x .750 x .330 Price: $4.53 |
| 4 |
790-00208D |
Wheel Drive Idler Bracket This part replaces 790-00208C. Price: $7.85 |
| 5 |
748-04112B |
Shldr. Spacer, .3175 ID x .500 x .0975 Price: $3.60 |
| 6 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 7 |
710-0672 |
Hex Screw, 5/16-24 x 1.25 Price: $3.85 |
| 8 |
684-04169 |
Idler Pulley Price: $29.87 |
| 9 |
750-04571 |
Shoulder Spacer, .260 x .785 x .538 Price: $6.01 |
| 10 |
710-0809 |
Hex Washer Screw, 1/4-20 x 1.250 Price: $6.37 |
| 11 |
756-04252 |
Pulley Half, 3/8-V x 1.7160 OD Price: $5.62 |
| 12 |
954-04260 |
V-Belt Price: $26.49 |
| 13 |
750-04303 |
Spacer, .875 ID x 1.185 OD Price: $15.09 |
| 14 |
756-06563 |
HALF PULLEY A2.76 x 1.140 SPLINE This part replaces 756-04113. Price: $3.40 |
| 15 |
736-0247 |
Flat Washer, .406 x 1.25 x .157 Price: $8.82 |
| 16 |
710-0191 |
Hex Screw, 3/8-24 x 1.25 Price: $4.02 |
| 17 |
710-1245B |
Hex Lock Screw, 5/16-24 x .875 Price: $7.21 |
| 18 |
736-0505 |
Flat Washer, .34 x 1.50 x .150 Price: $5.65 |
| 19 |
954-04050A |
Auger Drive Belt This part replaces 954-04050. Price: $25.43 |
| 20 |
756-04109 |
Auger Pulley Price: $47.55 |
| 21 |
748-04053A |
Adapter Pulley Price: $19.41 |
| 22 |
710-1681 |
HEX SCREW M8-1.25 x 20 GR8 This part replaces 710-04022. Price: $5.22 |
| 23 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 24 |
732-0705 |
Cable Control Wire Price: $10.40 |
| 25 |
710-0653 |
Hex Washer Screw, 1/4-20 x .375 Price: $3.78 |
| 26 |
731-05353B |
BELT COVER Not Available This part replaces 731-05353. Price: |
| 27 |
710-0502A |
Hex Washer Screw, 3/8-16 x 1.250 Price: $5.71 |
| 28 |
790-00289B-0637 |
COVER PLATE (POWDER BLACK) This part replaces 790-00289A-0637. Price: $23.34 |
| 29 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 30 |
738-04184A |
Shoulder Screw, .368 x .113 x 1/4-20 Price: $5.99 |
| 31 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 32 |
790-00217A |
Speed Selector Pivot Bracket This part replaces 790-00217A-0637. Price: $8.22 |
| 33 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 34 |
936-3015 |
Flat Washer, .469 x .875 x .105 Price: $3.89 |
| 35 |
790-00218A |
Speed Selector Shift Bracket This part replaces 790-00218A-0637. Price: $41.84 |
| 36 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 37 |
735-04099 |
Plug, 3/8 ID Price: $5.15 |
| 38 |
936-0329 |
Lock Washer, 1/4 Price: $3.90 |
