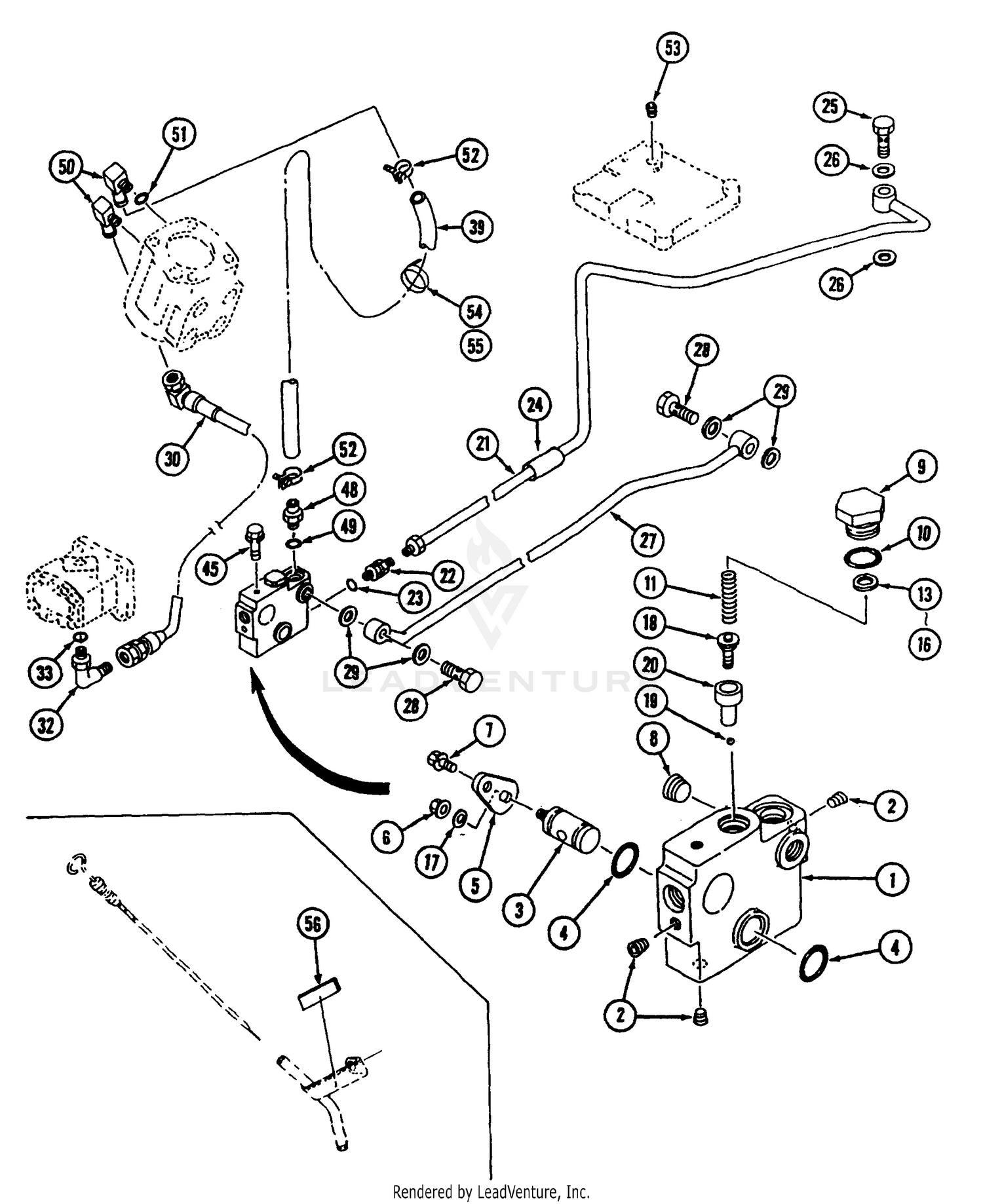

Hydraulic Line HST 730 (Part 2)
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136795 | SUB= 138956 Price: Call Us |
| 1 | 42222-03 | LH BOOM MOUNT ASM Price: $368.05 |
| 1 | MA-19632524AG0 | BLOCK Not Available Price: |
| 2 | 137044 | DECAL.GRILL Price: Call Us |
| 2 | 42223-03 | WEDGE TUBE ASM Price: $99.98 |
| 2 | MA-A6010101000 | PLUG Not Available Price: |
| 3 | 139358 | DECAL.HOOD.RH Price: Call Us |
| 3 | 42199 | BOLT Price: $36.91 |
| 3 | MA-19632525000 | SHAFT Not Available Price: |
| 4 | MA-08300100160 | O-RING Not Available Price: |
| 5 | MA-19632526000 | PLATE Not Available Price: |
| 6 | 133795 | DECAL CAUTION Price: Call Us |
| 6 | MA-F3000106011 | NUT Not Available Price: |
| 7 | 101892X | DECAL T Price: Call Us |
| 7 | MA-F1540108016 | BOLT,W/SPRING WASH Not Available Price: |
| 8 | 139359 | DECAL.HOOD.LH Price: Call Us |
| 8 | MA-A6010101700 | PLUG Not Available Price: |
| 9 | MA-10052405120 | PLUG Not Available Price: |
| 10 | MA-08300500180 | O-RING Not Available Price: |
| 11 | MA-10052405170 | SPRING Not Available Price: |
| 12 | 139376 | DECAL.MOWER Price: Call Us |
| 13 | 137042 | DECAL.WHL.STRG. Price: Call Us |
| 13 | MA-10052405130 | SHIM Not Available Price: |
| 14 | 121549X | DECAL Price: Call Us |
| 14 | MA-10052405140 | SHIM Not Available Price: |
| 15 | MA-10052405150 | SHIM Not Available Price: |
| 16 | 137043 | DECAL.FENDER Price: Call Us |
| 16 | MA-10052405160 | SHIM Not Available Price: |
| 17 | MA-03500141022 | WASHER Not Available Price: |
| 18 | MA-10052405180 | POPPET Not Available Price: |
| 20 | MA-10052405191 | HOUSING Not Available This part replaces MA-10052405190. Price: |
| 21 | MA-19642527AG0 | PRESSURE PIPE C AS Not Available Price: |
| 22 | MA-06203115171 | BODY Not Available Price: |
| 23 | MA-08301100140 | O-RING Not Available Price: |
| 24 | MA-11352474000 | PIPE Not Available Price: |
| 25 | MA-10302534000 | BOLT EYE Not Available Price: |
| 26 | MA-08331001601 | SEAL WASHER Not Available This part replaces MA-08331001600. Price: |
| 27 | MA-19642529AG1 | HYDRAULIC HOSE D Not Available This part replaces MA-19642529AG0. Price: |
| 28 | MA-10302534000 | BOLT EYE Not Available Price: |
| 29 | MA-08331001601 | SEAL WASHER Not Available This part replaces MA-08331001600. Price: |
| 30 | MA-19632522000 | HOSE Not Available Price: |
| 33 | MA-08300100140 | O-RING Not Available Price: |
| 39 | MA-19682525002 | HOSE-HYD BLOCK Not Available This part replaces MA-19682525001. Price: |
| 45 | MA-F1540108016 | BOLT,W/SPRING WASH Not Available Price: |
| 49 | MA-08300100140 | O-RING Not Available Price: |
| 51 | MA-08300100140 | O-RING Not Available Price: |
| 52 | MA-00505000280 | HOSE CLIP Not Available Price: |
| 53 | MA-A6010101700 | PLUG Not Available Price: |
| 55 | MA-00511032070 | BAND,WIRE Not Available Price: |
| 138311 | DECAL | HANDLE LIFT Price: Call Us 138311 |
| 139244 | MANUAL.P.WE1442A | Price: Call Us 139244 |
