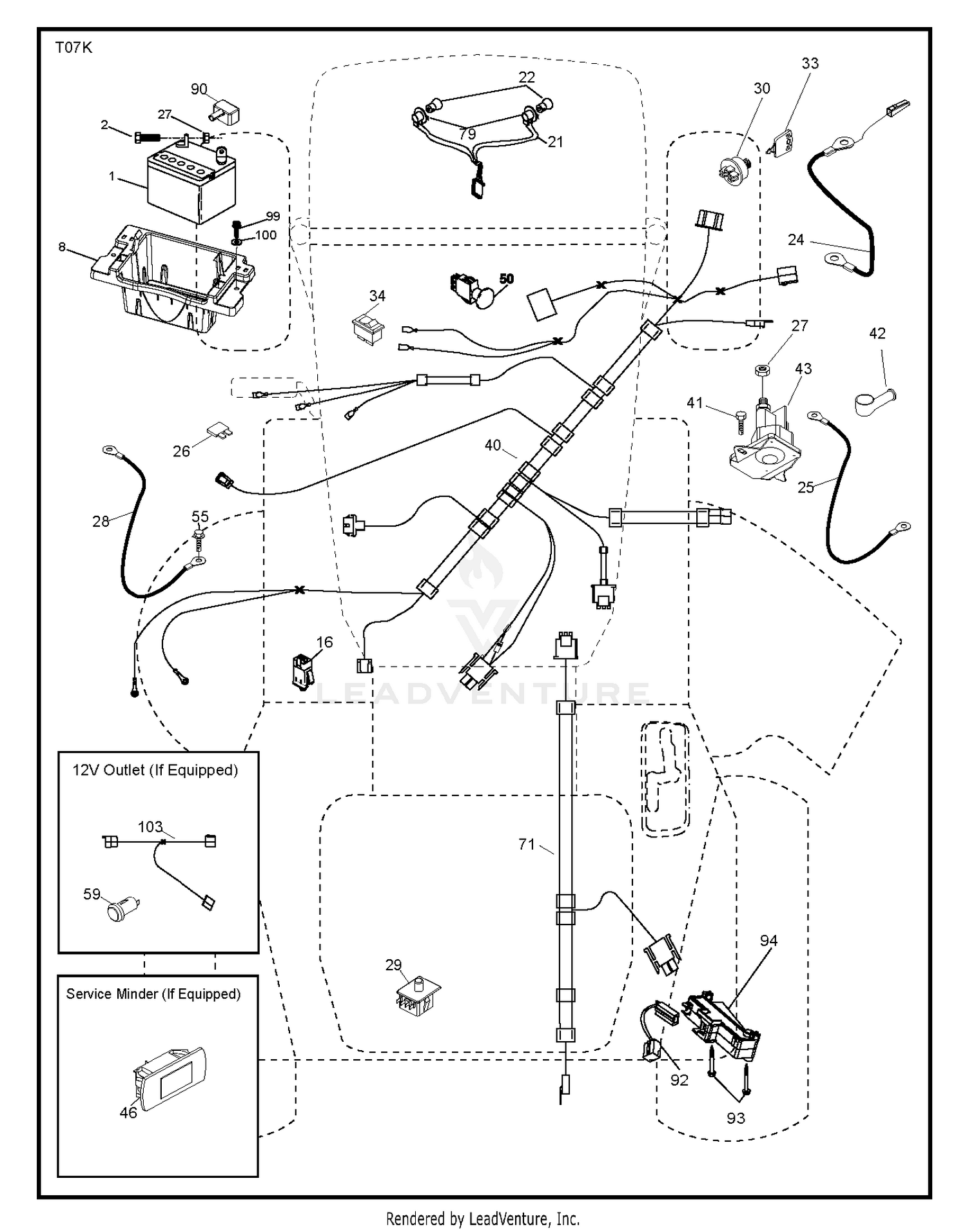

| Ref | Part Number | Description |
|---|
| 1 |
147-0901 |
ARM-PITCH This part replaces 119-9307-01. Price: $179.09 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $139.99 |
| 2 |
117-9456 |
CROSSLINK Price: $54.18 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
119-4012 |
SCREW-HWHTF Price: $0.61 |
| 4 |
120-3221 |
LH REEL NUT ASM Price: $33.34 |
| 5 |
115-3340 |
WEIGHT ASM Price: $136.76 |
| 6 |
115-5227 |
MOTOR ADAPTER ASM Price: $98.96 |
| 7 |
117-6706 |
CLAMP-MOTOR Price: $34.81 |
| 8 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 8 |
587205101 |
TRAY.BATTERY BOX.FRONT Price: $6.99 |
| 9 |
117-6849 |
SHIELD-SPRING Price: $48.38 |
| 10 |
3274-18 |
SCREW-HSH Price: $8.88 |
| 11 |
119-4038 |
NUT-HEX Price: $0.31 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 Price: $4.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $4.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 27 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 28 |
532416588 |
CABLE.GROUND.21"BLK.8GA.90T Price: $5.99 |
| 29 |
532192749 |
SWITCH.SEAT.DP W/RAMPS Price: $12.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $6.99 |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $74.99 |
| 41 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042801 |
SOLENOID.STARTER.BRASS.PLUNGER This part replaces 532192507. Price: $7.99 |
| 46 |
586161801 |
GUAGE.SRVCMNDR.HRMTR. Price: $17.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $9.99 |
| 55 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $24.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
532192540 |
SCREW.PLASTITE Price: $2.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $22.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
