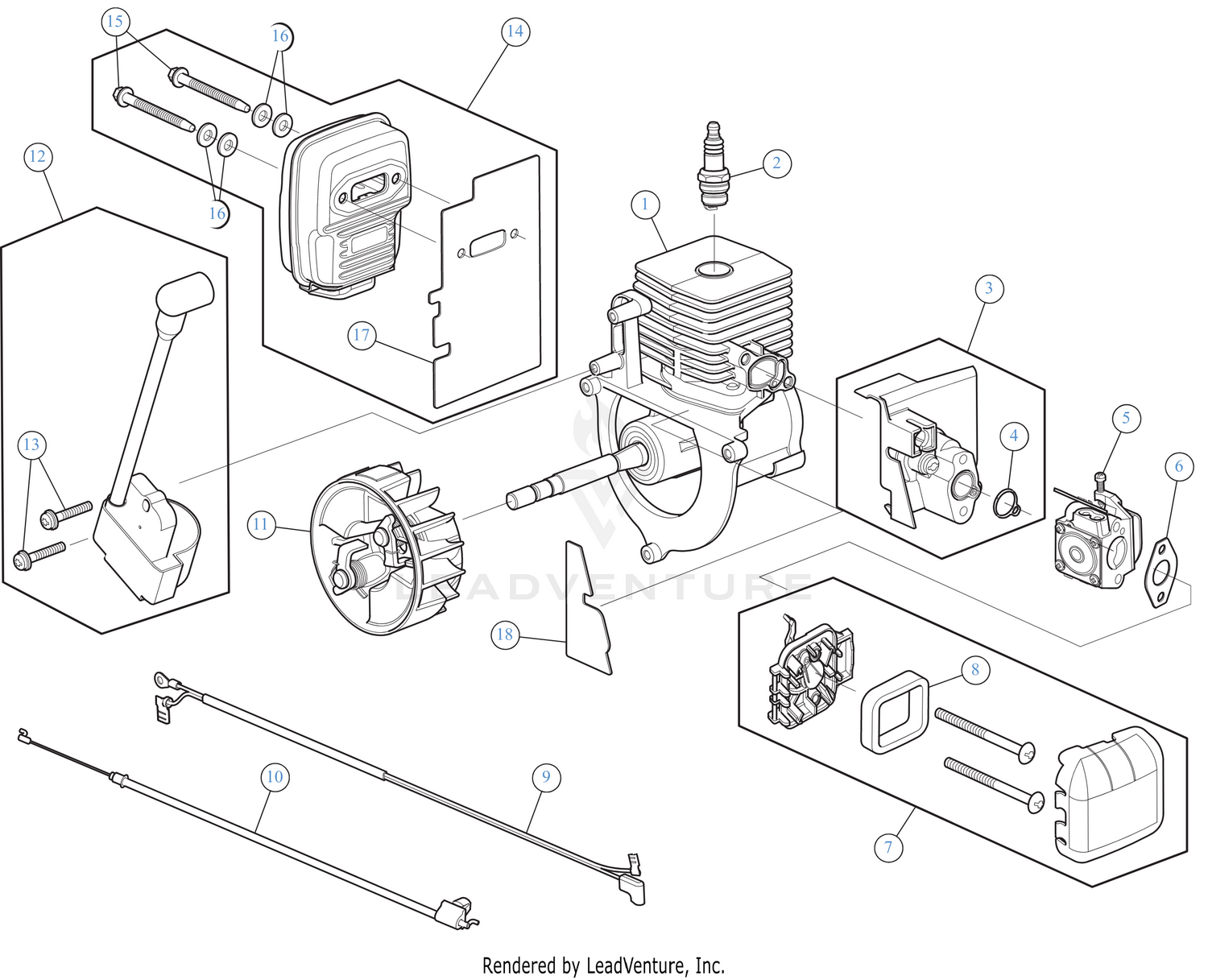

Engine Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 753-09204 | SHORT BLOCK Price: $47.67 |
| 2 | 753-06847 | SPARK PLUG Price: $6.35 |
| 4 | 753-06185 | O-RING Price: $2.93 |
| 5 | 753-06190 | CARBURETOR Price: $31.13 |
| 6 | 753-06253 | GASKET CARB Price: $2.98 |
| 8 | 791-181757 | AIR FILTER Price: $3.59 |
| 9 | 725-06313 | WIRE LEAD Price: $2.72 |
| 10 | 746-05226 | THROTTLE CABLE Price: $4.11 |
| 11 | 753-08490 | FLYWHEEL ASSEMBLY Price: $13.91 |
| 13 | 710-06301 | SCREW 8-32X.750 Price: $2.72 |
| 15 | 753-06294 | MUFFLER SCREW Price: $2.52 |
| 16 | 791-182568 | WASH, FLAT .480X.1 Price: $3.66 |
| 17 | 721-04801 | GASKET Price: $2.71 |
