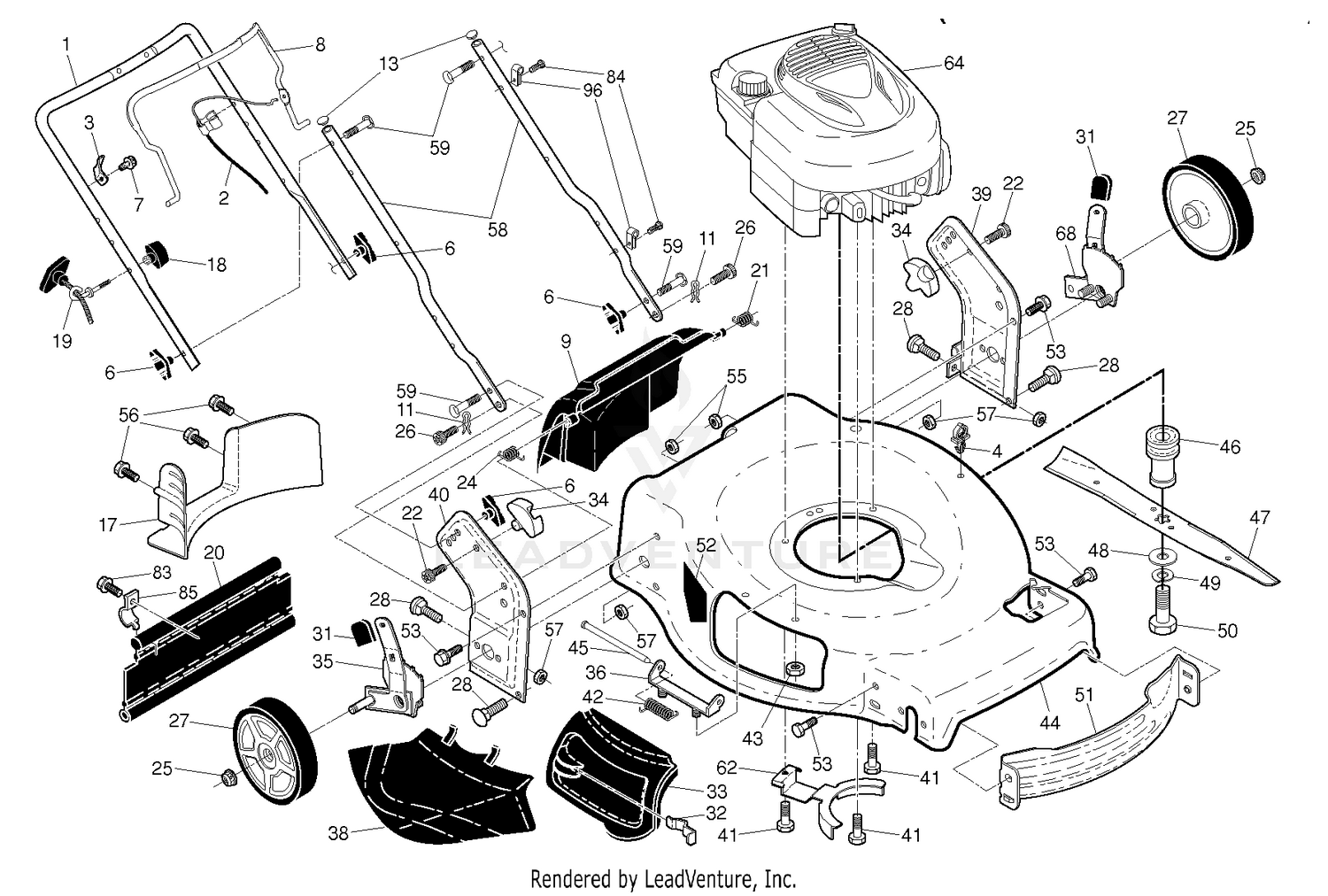

| Ref | Part Number | Description |
|---|
| 1 |
127-7144 |
NON DRIVEN BEARING HOUSING ASM Price: $270.13 |
| 1 |
532427738 |
HANDLE.UP.DSTR.FG/RGD.BLACK Price: $22.99 |
| 2 |
532420939 |
CABLE.MZR.FGD.PLUS Price: $11.99 |
| 3 |
237-22 |
O-RING This part replaces 107-8844. Price: $2.43 |
| 3 |
532430034 |
BRACKET.UPSTOP.RT Price: $2.99 |
| 4 |
112-6966 |
ROLLER BRUSH ASM Price: $431.52 |
| 4 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 6 |
108-4480 |
BRACKET-MOUNTING Price: $34.10 |
| 6 |
532191938 |
KNOB, DEFLECTOR Price: $2.99 |
| 7 |
108-4172 |
SEAL-EXCLUDER Price: $6.52 |
| 7 |
532178848 |
SCREW Price: $3.99 |
| 8 |
581802001 |
BAIL.MZR.STRAIGHT.22+.YELLOW Price: $11.99 |
| 8 |
94-6936 |
WASHER-HARDENED Price: $0.58 |
| 9 |
322-16 |
SCREW-HH Price: $3.39 |
| 9 |
532421084 |
DOOR.REAR.22PLUS.MB.FGD.SAFETY Price: $17.99 |
| 10 |
108-4491 |
SPACER Price: $11.71 |
| 11 |
112-6957 |
WASHER-HARDENED Price: $1.37 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 12 |
115-0821 |
PULLEY-DRIVEN, RRB (5-RIB) Price: $60.66 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $2.99 |
| 14 |
104-1843 |
FITTING-GREASE, 90 DEG Price: $5.20 |
| 17 |
532427307 |
BAFFLE.22PLUS.FGD.REAR. Price: $11.99 |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $1.99 |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $1.99 |
| 20 |
532429157 |
SKIRT.REAR.22PLUS.RGD/FGD.NEW Price: $11.99 |
| 21 |
532419949 |
SPRING.LH.GRAY Price: $2.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 24 |
532419948 |
SPRING.RH.GRAY Price: $2.99 |
| 25 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $2.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $2.99 |
| 27 |
583717501 |
WHEEL 8X1.75 5SPK.RAD.3 BLK.1 This part replaces 532447993. Price: $14.99 |
| 28 |
872140505 |
BOLT This part replaces 872250505. Price: $2.99 |
| 31 |
532701037 |
SELECTOR KNOB Price: $2.99 |
| 32 |
532441192 |
LATCH.DOOR.ZINC Price: $2.99 |
| 33 |
532432642 |
DOOR.MULCH.22.BLACK.MULTI-BRAN Price: $7.99 |
| 34 |
532438134 |
BRACKET.GRASSBAG.ATTACHING.BLK Price: $2.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $3.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $7.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $3.99 |
| 43 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 44 |
581708305 |
HOUSING.22+.FGD.M.C.YELLOW.TRI Price: $139.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $3.99 |
| 46 |
581473301 |
ADAPTOR BLADE 25MM STAR Price: $9.99 |
| 47 |
532420463 |
BLADE.22PLUS Price: $12.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $2.99 |
| 49 |
539990118 |
SLW 3/8 STD This part replaces 532850263. Price: $1.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.99 |
| 51 |
532430599 |
BAFFLE.FRONT.22.PLUS Price: $11.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $4.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 55 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $3.99 |
| 57 |
532155377 |
NUT.FLANGE.5/16 Price: $3.99 |
| 58 |
532441196 |
HANDLE.LOWER.22+BT.2PC.BLK Price: $12.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $1.99 |
| 62 |
532425711 |
BRACKET.KEEPER.BELT This part replaces 532435059. Price: $4.99 |
| 83 |
817021008 |
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) This part replaces 532750097. Price: $1.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $2.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $2.99 |
