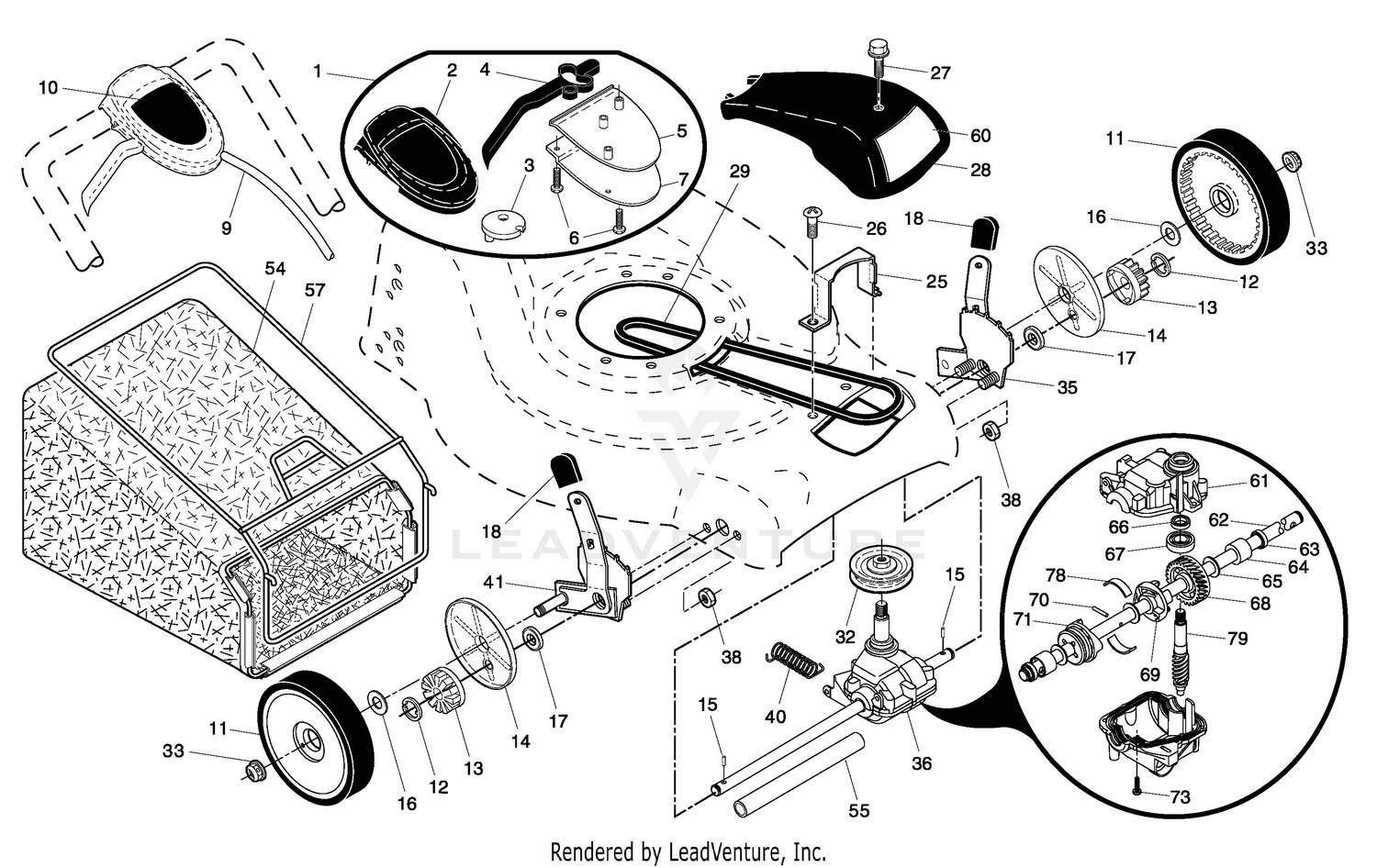

| Ref | Part Number | Description |
|---|
| 1 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 1 |
532425580 |
CONTROL.DR.AW.FWGD.GRY/BLACK This part replaces 532407316. Price: $59.99 |
| 2 |
28-3680 |
TIRE Price: $118.18 |
| 2 |
532406260 |
COVER TOP AUTO WALK CONTROL This part replaces 532411673. Price: $12.99 |
| 3 |
217-60 |
RIM Price: $110.16 |
| 3 |
532406262 |
PULLEY.CAM.DRIVE.CONTROL.EZ This part replaces 532406282. Price: $7.99 |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
10-6870-03 |
HUB-WHEEL This part replaces 10-6870. Price: $150.01 |
| 5 |
532406261 |
COVER BOTTOM AUTO WLK CONTROL This part replaces 532411664. Price: $12.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 6 |
85-6540 |
STUD-DRIVE Price: $7.41 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 7 |
70-9840 |
SHOE-BRAKE Price: $60.36 |
| 8 |
321-5 |
SCREW-HH Price: $0.22 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 9 |
532406259 |
CABLE ASSEMBLY, DRIVE Price: $44.99 |
| 10 |
325-11 |
SCREW-HH Price: $1.93 |
| 10 |
532189378 |
DECAL, DRIVE Price: $29.99 |
| 11 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000. Price: $8.08 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
237-80 |
O-RING Price: $6.10 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
237-65 |
O-RING Price: $2.50 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
32108-100 |
SCREW-FH Price: $3.02 |
| 15 |
532404845 |
PAWL, DRIVE This part replaces 532191017. Price: $4.99 |
| 16 |
49-5450 |
COVER PLATE *R Price: $79.55 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
57-6140 |
CLAMP-TUBE, HALF Price: $5.16 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532404831. Price: $12.99 |
| 18 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 19 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 20 |
3220-2 |
NUT-JAM Price: $0.50 |
| 21 |
282-2 |
YOKE Price: $30.04 |
| 22 |
10-8220 |
TOOL BOX PAD Price: $24.12 |
| 23 |
49-5410 |
DISCONTINUED Price: Call Us |
| 25 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 25 |
532431711 |
BRACKET.BELT.GUIDE.22+FGD.BZP This part replaces 532411663. Price: $2.99 |
| 26 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532185715 |
COVER.DR.21.FWGD/B&S.GRAY Price: $17.99 |
| 28 |
93-2096 |
LEVER-BRAKE This part replaces 71-1510. Price: $89.45 |
| 29 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 29 |
532194149 |
BELT.DRIVE.FG Price: $19.99 |
| 30 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 31 |
62-2440 |
LIFT ARM ASM Price: $130.13 |
| 32 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 33 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 34 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 35 |
62-2420-01 |
BAR ASM-LIFT, CTR ARM This part replaces 62-2420. Price: $70.22 |
| 36 |
532404833 |
TRANSMISSION.21.FGD.HT.VST Price: $119.99 |
| 36 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 37 |
136-8446 |
KIT, CENTER PULL FRAME This part replaces 86-9820. Price: $340.89 |
| 38 |
322-1 |
SCREW-HH Price: $0.22 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 39 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 40 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 40 |
532406558 |
SPRING Price: $6.99 |
| 41 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 42 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 43 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 44 |
75-9990 |
HYD MOTOR ASM Price: $831.33 |
| 45 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 46 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9850. Price: $42.42 |
| 47 |
62-5070 |
DECAL-WARNING Price: $5.59 |
| 48 |
70-9870 |
PLATE-BACKING Price: $183.14 |
| 49 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9860. Price: $42.42 |
| 50 |
70-9880 |
SPRING-RETURN Price: $11.81 |
| 51 |
10-6821 |
BRAKE DRUM ASM Price: $170.90 |
| 52 |
232-24 |
STEM-VALVE Price: $4.03 |
| 54 |
580953406 |
GBAG.34710090.H-GREY MS498 This part replaces 532401190. Price: $54.99 |
| 55 |
532175739 |
DRIVESHAFT COVER Price: $2.94 |
| 57 |
532411950 |
FRAME.GBAG.21.FWGD This part replaces 532401802. Price: $64.99 |
| 60 |
532193557 |
DECAL DRIVE COVER Price: $7.99 |
| 61 |
532410726 |
CASE.UPPER.00254(SERVICE) Price: $12.99 |
| 62 |
532410949 |
SHAFT OUTPUT (12289) Price: $54.99 |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532410729 |
GEAR 28 TEETH 36208 Price: $11.99 |
| 69 |
532410732 |
FIXED DOG CLUTCH Price: $2.99 |
| 70 |
532412746 |
PIN 3.50.337 - 33733 This part replaces 532410733. Price: $7.99 |
| 71 |
532410730 |
MOVEABLE DOG CLUTCH Price: $6.99 |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 74 |
532410734 |
CASE.BOTTOM. Price: $17.99 |
| 78 |
532410731 |
SPRING LEAF Price: $2.99 |
