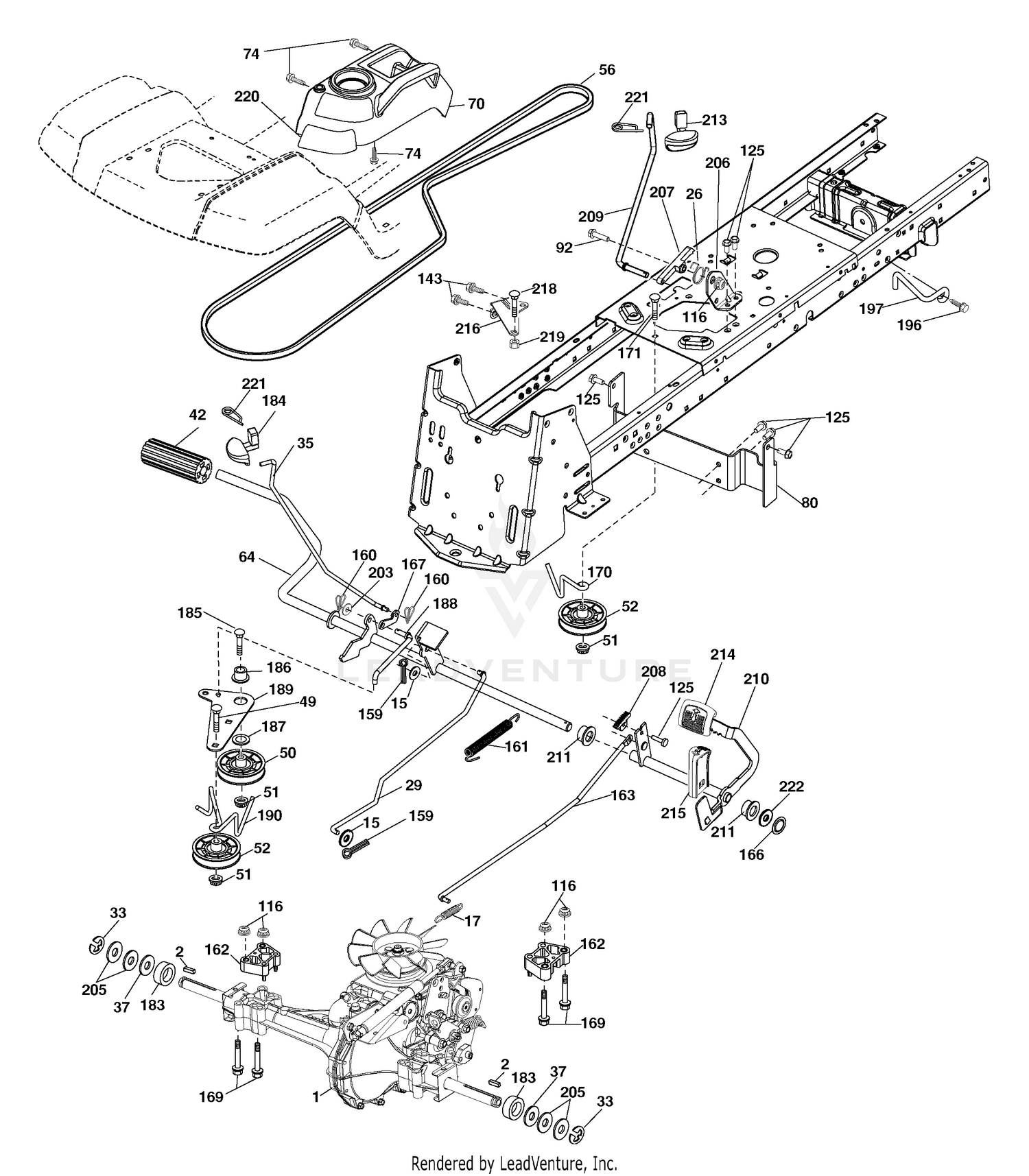

| Ref | Part Number | Description |
|---|
| 1 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7580. Price: $27.95 |
| 3 |
3218-5 |
NUT-JAM Price: $0.27 |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 5 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 6 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 7 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 10 |
82-8670 |
ROD-LATCH, BRAKE Price: $61.33 |
| 11 |
233-17 |
KNOB Price: $10.58 |
| 12 |
82-8930 |
DECAL-BRAKE, PARKING Price: $24.40 |
| 13 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 14 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 15 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 17 |
23-2240-03 |
PUMP CONTROL TUBE ASM This part replaces 23-2240. Price: $209.72 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
94-3304-01 |
SUPPORT-PEDAL This part replaces 94-3304. Price: $121.34 |
| 19 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 20 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 21 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 23 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 24 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 25 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 26 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
3220-3 |
NUT-HJ Price: $0.28 |
| 28 |
3217-7 |
NUT-HEX Price: $0.28 |
| 29 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 29 |
532199467 |
ROD.BRAKE.0610.PEDAL.CONTROL Price: $37.99 |
| 30 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 31 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 32 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 33 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
27-7590-01 |
BRAKE MT WA This part replaces 27-7590. Price: $239.14 |
| 35 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM This part replaces 27-9270. Price: $81.41 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 36 |
27-7640-01 |
SHAFT-BRAKE LATCH ASM This part replaces 27-7640. Price: $62.42 |
| 37 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 38 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7570. Price: $27.95 |
| 39 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 40 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 41 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 42 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 43 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 45 |
27-8550-01 |
PARKING BRAKE PEDAL ASM This part replaces 27-8550. Price: $324.09 |
| 46 |
3220-5 |
NUT-JAM Price: $0.65 |
| 47 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 48 |
88-1680-01 |
BRACKET-FOOTREST This part replaces 88-1680. Price: $17.86 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 49 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 50 |
88-1710-01 |
FOOTREST ASM This part replaces 88-1710. Price: $62.29 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 51 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 52 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 53 |
32128-25 |
NUT-HF Price: $3.19 |
| 54 |
325-14 |
SCREW-HH This part replaces 323-42. Price: $2.64 |
| 55 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 56 |
532140218 |
V-BELT. Price: $49.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532400507 |
BRKT.STRP.TRQ.LT.HYD.C Price: $12.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT This part replaces 532195403. Price: $9.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 163 |
532199000 |
ROD.PEDAL.CONTROL.0510 Price: $27.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532196211. Price: $2.99 |
| 169 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 218 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 219 |
532195780 |
SPACER.FENDER Price: $5.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
