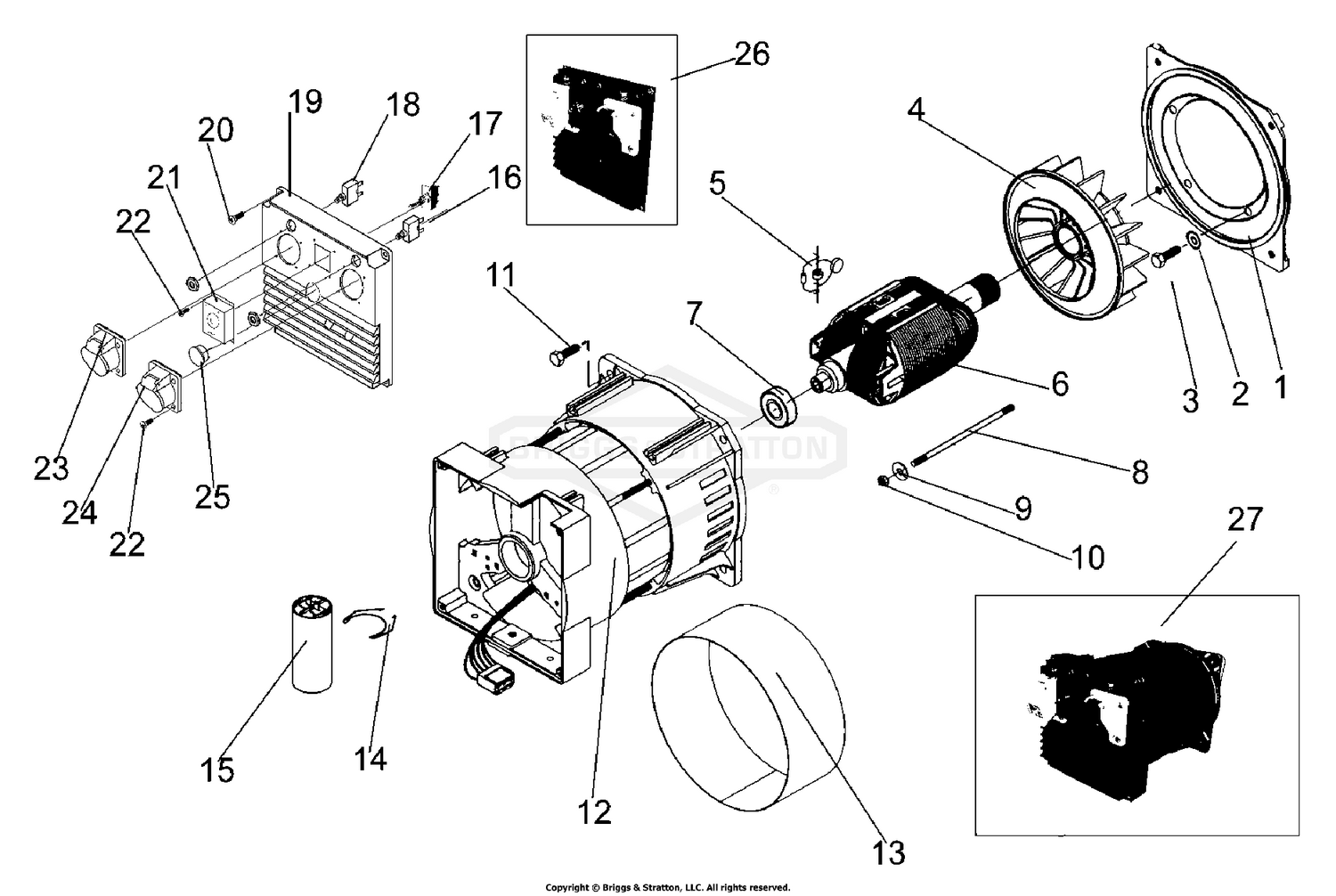

Alternator With Outlet Panel

Alternator With Outlet Panel

Parts (25)

RefPart NumberDescription
1 102051GS FLANGE PLATE Price: Call Us
2 ~NSP WASHER SPRING M8 & 5/16" Price: Call Us
3 ~NSP SCREW SET 5/16"UNF X 3/4" Price: Call Us
4 102073GS ROTOR FAN SINCRO Price: Call Us
5 B4916GS KIT-CAPACITOR DIODE & VAR This part replaces 102052GS. Price: $18.55
6 102080GS ROTOR ASSY SINCRO EP3.0 Price: Call Us
7 102038GS ROTOR BEARING Price: Call Us
8 102057GS ROTOR BOLT 195MM Price: Call Us
9 ~NSP WASHER FLAT M8 & 5/16" Price: Call Us
10 ~NSP NUT NYLOCK M8-1.25 TYPE T Price: Call Us
11 ~NSP SCREW SET 5/16"UNF X 3/4" Price: Call Us
12 102078GS STATOR ASSY SINCRO EP3.0 Price: Call Us
13 ~NSP STATOR COVER BAND EP3.0 Price: Call Us
14 ~NSP CAPACITOR CLIP EP SERIES Price: Call Us
15 707029 CAPACITOR This part replaces 102086GS. Price: $49.21
16 102049GS CIRCUIT BREAKER 12A Price: Call Us
17 102404GS SWITCH VOLTAGE CHANGE-OVER Price: Call Us
18 102261GS CIRCUIT BREAKER 20A Price: Call Us
19 102424GS OUTLET PANEL BLANK (HP3000FF) Price: Call Us
20 ~NSP SCREW MC PPHD M5*10MM Price: Call Us
22 ~NSP SCREW SELF TAP #10*15MM Price: Call Us
23 102419GS SOCKET OUTLET 16A 115VOLT Price: Call Us
24 102418GS SOCKET OUTLET 16A 230V Price: Call Us
25 102085GS END CAP PLASTIC (OUTLET PANEL) Price: Call Us
26 102427GS OUTLET PANEL COMPLETE SINCRO EP3.0 Price: Call Us
