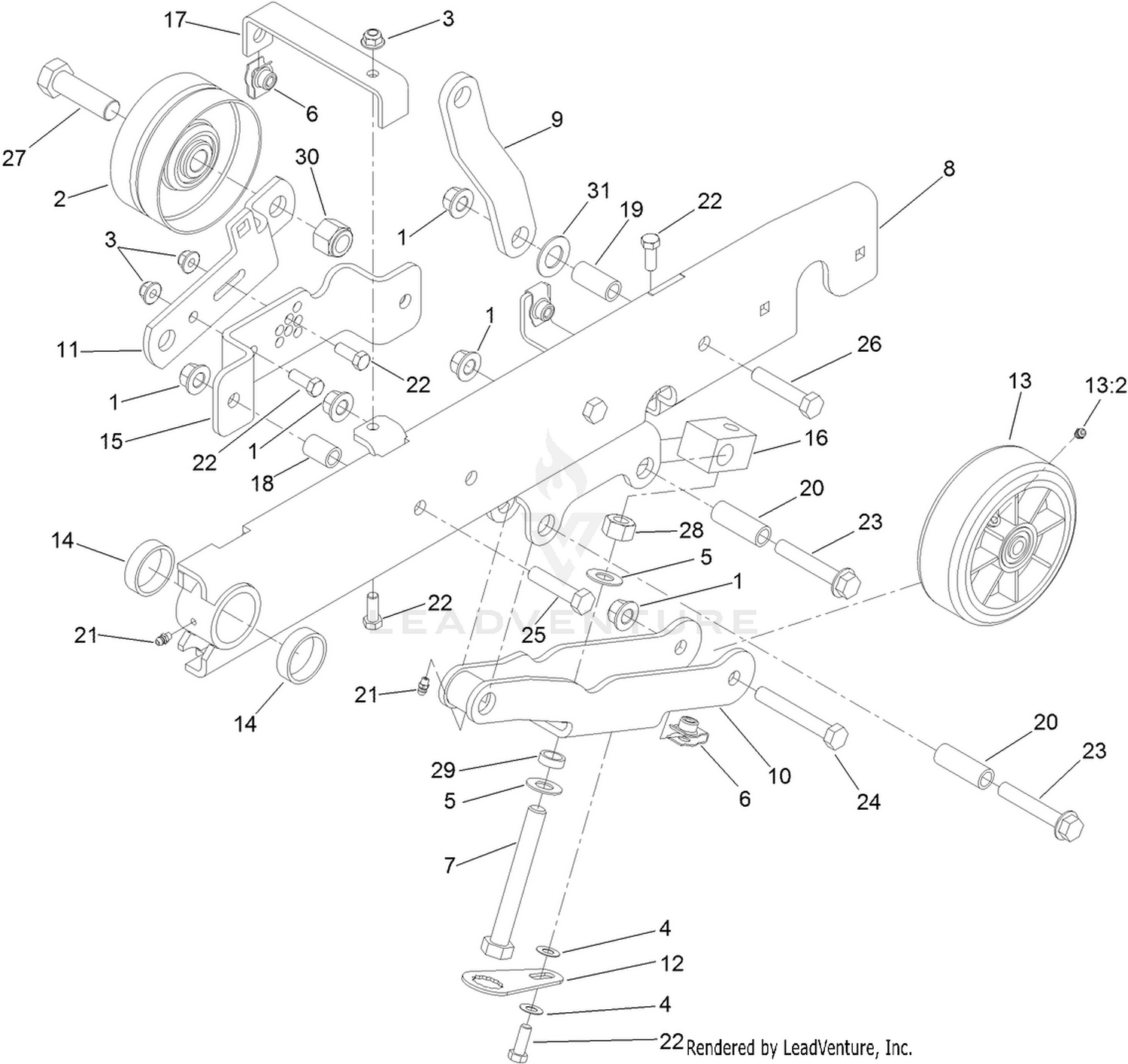

RH Trailing Arm Assembly No. 117-8460
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-5107 | NUT-LOCK Price: $1.77 |
| 2 | 100-7631 | PULLEY-IDLER Price: $146.29 |
| 3 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 108-1438 | WASHER-HARDENED Price: $1.76 |
| 5 | 99-7667 | WASHER-FLAT Price: $4.80 |
| 6 | 105-4886 | NUT-TINNERMAN Price: $2.37 |
| 7 | 112-4874 | SCREW-HH, TAP Price: $8.70 |
| 8 | 117-8461-03 | ARM-TRAILING Price: $265.67 |
| 9 | 117-8465-03 | LINK-LIFT Price: $29.79 |
| 10 | 119-6301-03 | ARM-GAUGE, WHEEL Price: $153.51 |
| 11 | 117-8469-03 | BRACKET-PULLEY Price: $20.10 |
| 12 | 117-8484 | TAB-LOCKING Price: $36.51 |
| 13 | 117-8544 | WHEEL-CASTER Price: $120.71 |
| 14 | 119-2985 | BUSHING Price: $7.60 |
| 15 | 119-2992-03 | BRACKET-ADJUST,TENSION Price: $42.10 |
| 16 | 119-6184 | BLOCK-PIVOT Price: $36.42 |
| 17 | 121-2772-03 | SUPPORT-COVER, BELT Price: $43.49 |
| 18 | 119-6189 | TUBE-PIVOT Price: $5.65 |
| 19 | 119-6191 | TUBE-PIVOT Price: $4.68 |
| 20 | 119-6192 | TUBE-PIVOT Price: $6.50 |
| 21 | 302-5 | FITTING-GREASE Price: $0.59 |
| 22 | 323-6 | SCREW-HH Price: $0.66 |
| 23 | 3234-40 | SCREW-HF Price: $3.38 |
| 24 | 325-14 | SCREW-HH Price: $2.64 |
| 25 | 325-9 | SCREW-HH Price: $1.87 |
| 26 | 325-10 | SCREW-HH Price: $1.82 |
| 27 | 328-2 | SCREW-HH Price: $6.51 |
| 28 | 3217-11 | NUT-HEX Price: $0.95 |
| 29 | 119-6253 | SPACER-LIMITER Price: $9.65 |
| 30 | 3296-51 | NUT-LOCK, NI Price: $3.23 |
