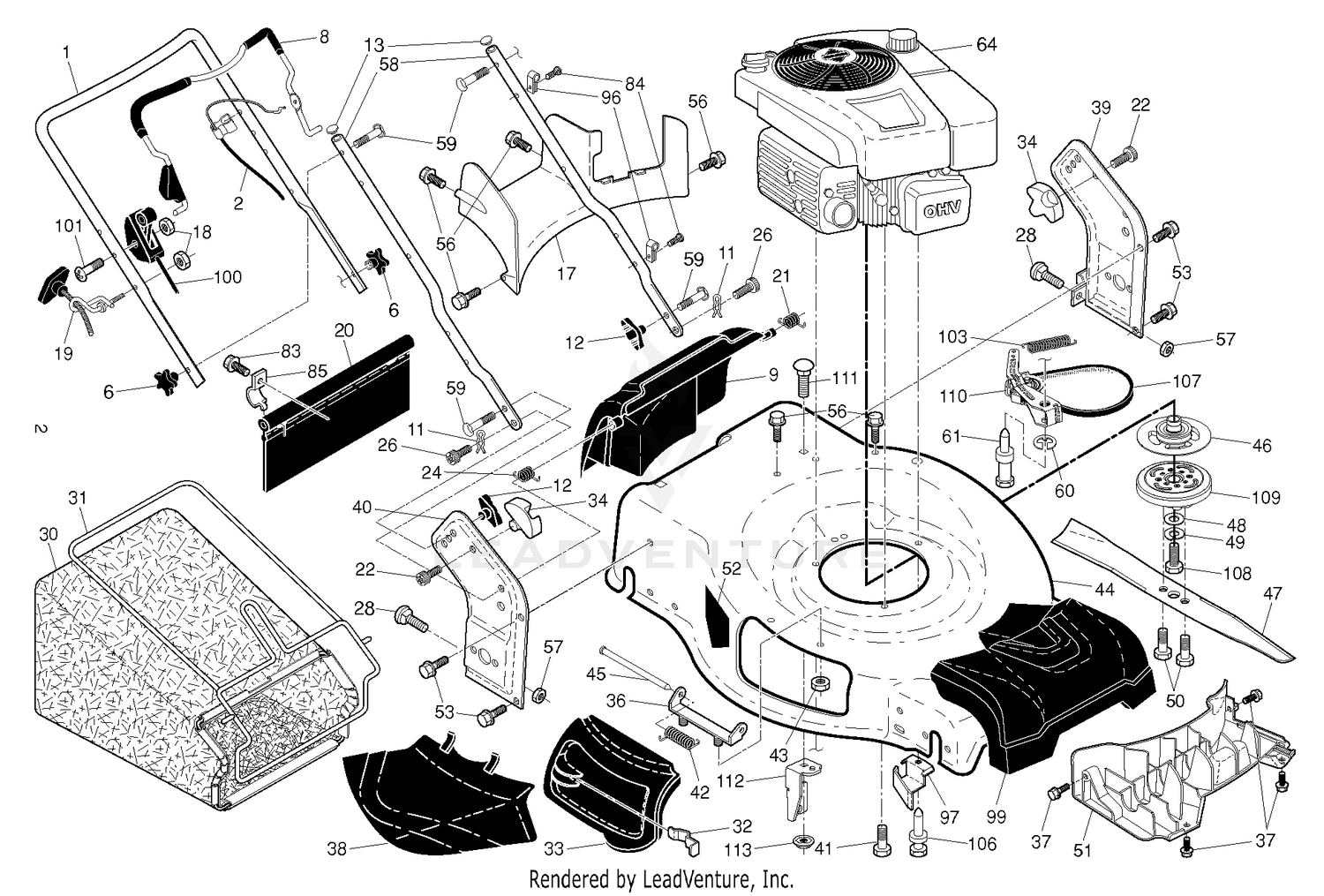

| Ref | Part Number | Description |
|---|
| 1 |
580638706 |
HANDLE.UPPER.3.POS.BS.AW2.GREY Price: $44.99 |
| 2 |
579484202 |
CABLE.BBC.22+.AW2.BS.ERGO.WALK Price: $22.99 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 8 |
587564109 |
BAIL.ASM.BBC.EN.ERGO.OM.OR/BK This part replaces 580749708. Price: $32.99 |
| 9 |
593304501 |
DOOR ASSY REAR;22+.HUSQVARNA N This part replaces 532431390. Price: $39.99 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC Price: $32.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 20 |
532444537 |
SKIRT.REAR.22+RGD.HIGH WHEEL Price: $11.99 |
| 21 |
532419949 |
SPRING.LH.BLACK Price: $4.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 24 |
532419948 |
SPRING.RH.GRAY Price: $4.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 28 |
596136401 |
Bolts This part replaces 872250505. Price: $2.99 |
| 30 |
580943401 |
RB GBAG.B55110010.GENERIC.SERV This part replaces 580943404. Price: $39.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK This part replaces 532419951. Price: $17.99 |
| 32 |
532441192 |
LATCH.DOOR.ZINC Price: $3.99 |
| 33 |
594942002 |
DOOR.MULCH.22+.BLK This part replaces 532419927. Price: $5.99 |
| 34 |
532438134 |
BRACKET.GRASSBAG.ATTACHING.BLK Price: $4.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 37 |
532437345 |
SCREW.HI-LO.5/16 X.75 Price: $3.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $9.99 |
| 39 |
581353702 |
BRACKET.ASM.HNDL.LT.22+.GREY Price: $19.99 |
| 40 |
581353602 |
BRACKET.ASM.HNDL.RT.22+.GREY Price: $19.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 44 |
581688601 |
HOUSING.22+RG.MC.WO.BBC.ORANGE Price: $149.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
581277401 |
PULLEY.BBC.DRIVING Price: $39.99 |
| 47 |
581045202 |
BLADE.22.4-N-1.BBC BLK ECOAT This part replaces 581045203. Price: $22.99 |
| 48 |
579273801 |
WASHER.CRANK.BOLT Price: $5.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532180460 |
BOLT.BLADE Price: $4.99 |
| 51 |
581238901 |
BAFFLE.FRONT.22+PLASTIC.(2 2) Price: $34.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
532441197 |
HANDLE.LOWER.22+BT.2PC.GRY Price: $14.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 60 |
579482801 |
E-RING.12MM.SHAFT Price: $3.99 |
| 61 |
581424501 |
BOLT.BBC.TENSION.PIVOT Price: $8.99 |
| 83 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $3.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 97 |
580606902 |
BRACKET.BELT.GUIDE.22+.004 BZP This part replaces 532434893. Price: $3.99 |
| 99 |
532437389 |
COVER.ASM.FRONT.SHROUD.HUSQ. Price: $37.99 |
| 100 |
581444101 |
CONTROL.THROTTLE.B&S.BBC Price: $59.99 |
| 101 |
532183365 |
SCREW Price: $4.99 |
| 103 |
581530701 |
SPRING.BRAKE.RESET Price: $3.99 |
| 106 |
579146901 |
BOLT.BRAKE.RESET.SPRING Price: $5.99 |
| 107 |
579273201 |
BELT.COG.BBC Price: $29.99 |
| 109 |
581308101 |
HUB.FREE.BBC.ASSEMBLY(2 2MC) Price: $84.99 |
| 110 |
581354501 |
ARM.BBC.TNSION.ARM.PULL(2 2MC) Price: $329.99 |
| 111 |
872140405 |
BOLT T Price: $3.99 |
| 112 |
579471802 |
BRACKET.CABLE MOUNTING.22+ Price: $3.99 |
| 113 |
596041001 |
Hardware This part replaces 532438130. Price: $2.99 |
