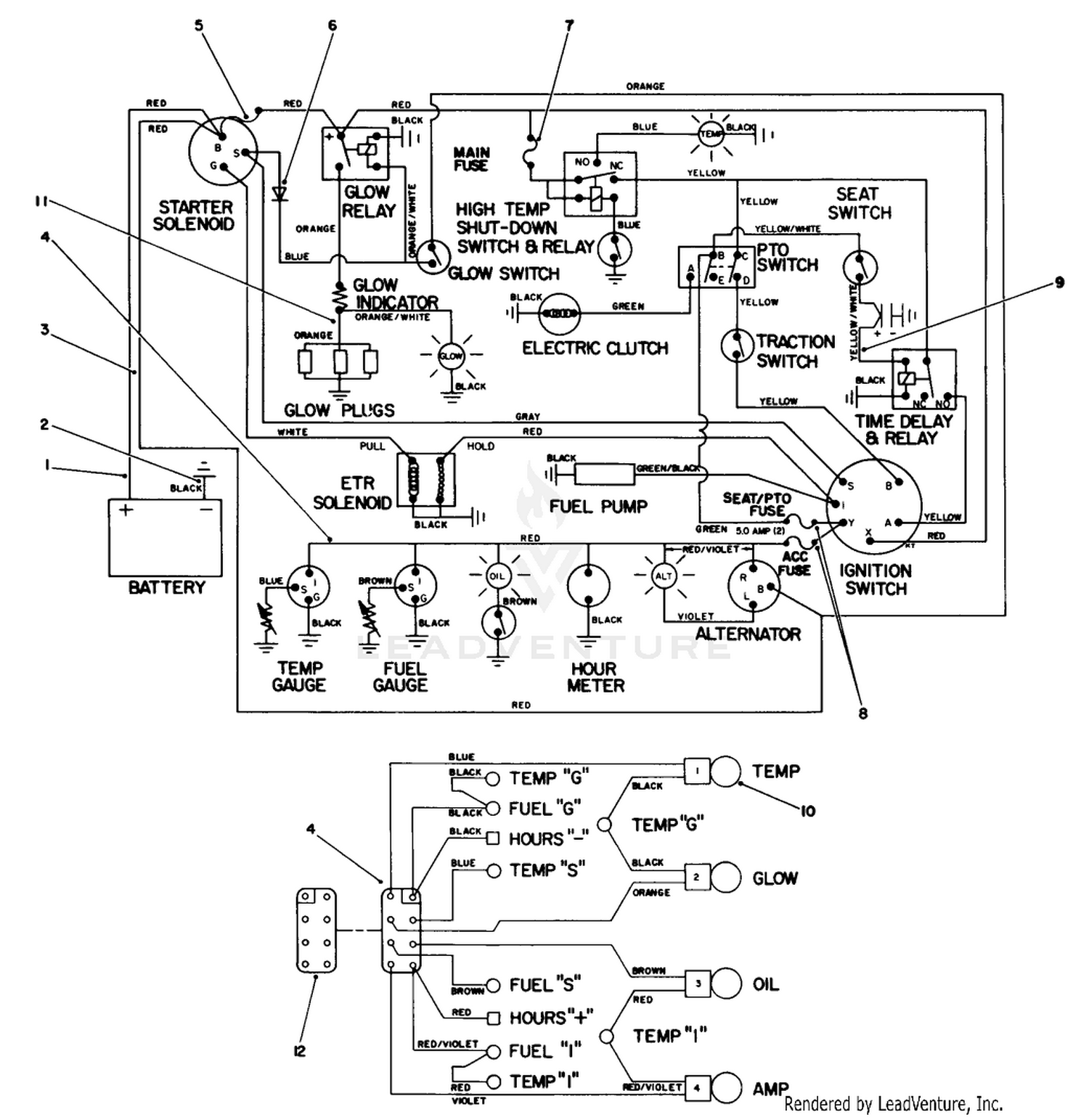

Electrical Schematic
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 43-4031 | CABLE-BATTERY, POSITIVE Price: $136.18 |
| 2 | 63-7340 | DISCONTINUED Price: Call Us |
| 3 | 121-6401 | KIT-WIRE HARNESS GM220D This part replaces 71-1530. Price: $860.78 |
| 4 | 66-8690 | WIRE HARNESS Price: $247.19 |
| 5 | 67-7120 | FUSIBLE LINK Price: $65.07 |
| 6 | 67-7130 | DIODE Price: $42.44 |
| 7 | 218-574 | FUSE-7.5 AMP Price: $4.12 |
| 8 | 218-573 | FUSE-5 AMP Price: $2.64 |
| 9 | 67-7180 | WIRE Price: $16.80 |
| 10 | 219-17 | BULB Price: $4.93 |
| 11 | 68-7370 | WIRE HARNESS Price: $21.67 |
