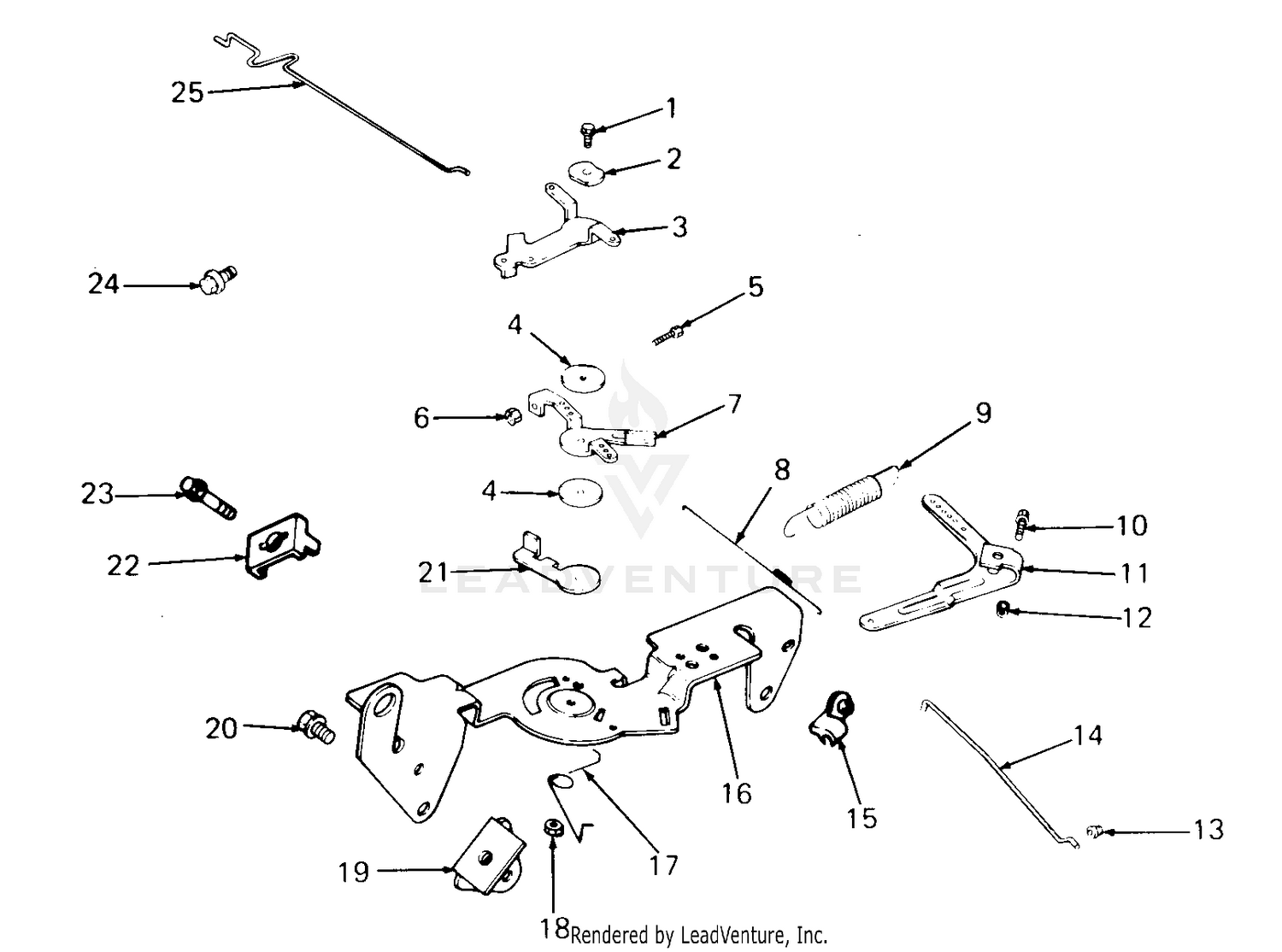

| Ref | Part Number | Description |
|---|
| 1 |
KH-SM-0545020 |
HEX SCREW Not Available Price: |
| 2 |
KH-41-468-03 |
Washer, Spring Price: $2.99 |
| 3 |
KH-24-090-05 |
Lever, Choke Price: $4.87 |
| 4 |
KH-24-468-01 |
Washer Price: $2.29 |
| 5 |
KH-M-401030 |
Screw, M4 X 0.7 X 27.9 Price: $3.06 |
| 6 |
KH-M-446030-S |
HEX NUT This part replaces KH-M-0446030. Price: $2.29 |
| 7 |
KH-24-090-03 |
THROTTLE LEVER Not Available Price: |
| 8 |
KH-24-089-01 |
Spring, Linkage (Governor lever to carburetor) Price: $6.17 |
| 9 |
KH-24-089-18 |
Spring, Governor This part replaces KH-24-089-14. Price: $6.50 |
| 10 |
KH-M-642025-S |
BOLT-HEX HEAD Not Available This part replaces KH-SM-0642025. Price: |
| 11 |
KH-24-090-14 |
GOVERNOR LEVER Not Available This part replaces KH-24-090-04. Price: |
| 12 |
KH-M-641060-S |
Nut, Hex Flange This part replaces KH-SM-0641060. Price: $4.01 |
| 13 |
KH-25-158-08 |
Bushing, Linkage Retaining Price: $5.51 |
| 14 |
KH-24-079-01 |
Linkage, Throttle Price: $3.50 |
| 15 |
KH-25-158-11 |
BUSHING-RETAINING Price: $5.66 |
| 16 |
KH-24-126-263-S |
CONTROL BRACKET This part replaces KH-24-126-02. Price: $8.35 |
| 17 |
KH-24-089-03 |
Spring, Choke Return Price: $2.72 |
| 18 |
KH-M-0547050 |
NUT Not Available Price: |
| 19 |
KH-24-126-04-S |
SUPPORT BRACKET 3000 SER Not Available This part replaces KH-24-126-04. Price: |
| 20 |
KH-M-645016-S |
Screw, hex. flange M6x1.0x16 This part replaces KH-SM-0645016. Price: $1.46 |
| 21 |
KH-24-090-65-S |
Throttle Actuator Lever This part replaces KH-24-090-02. Price: $4.87 |
| 22 |
KH-25-237-53-S |
CABLE CLAMP This part replaces KH-12-237-01. Price: $3.17 |
| 23 |
KH-25-086-426-S |
Thread Forming Screw This part replaces KH-SM-0545016. Price: $2.23 |
| 24 |
KH-M-0545010 |
Screw, Breather Reed Retainer, M5 X 0.8 X 10 This part replaces KH-SM-0545010. Price: $4.19 |
| 502212803 |
502212804 |
CRANKSHAFT This part replaces 502212803. Price: $179.99 |
| 503414101 |
503414101 |
SUPPORT BUSHING Price: $11.99 |
| 503906701 |
503906701 |
COVER Price: $89.99 |
| 503910701 |
503913401 |
BEARING This part replaces 503910701. Price: $22.99 |
| 503913401 |
503913401 |
BEARING Price: $22.99 |
| 738220125 |
738220125 |
Ball Bearing 6201-C3 Price: $11.99 |
