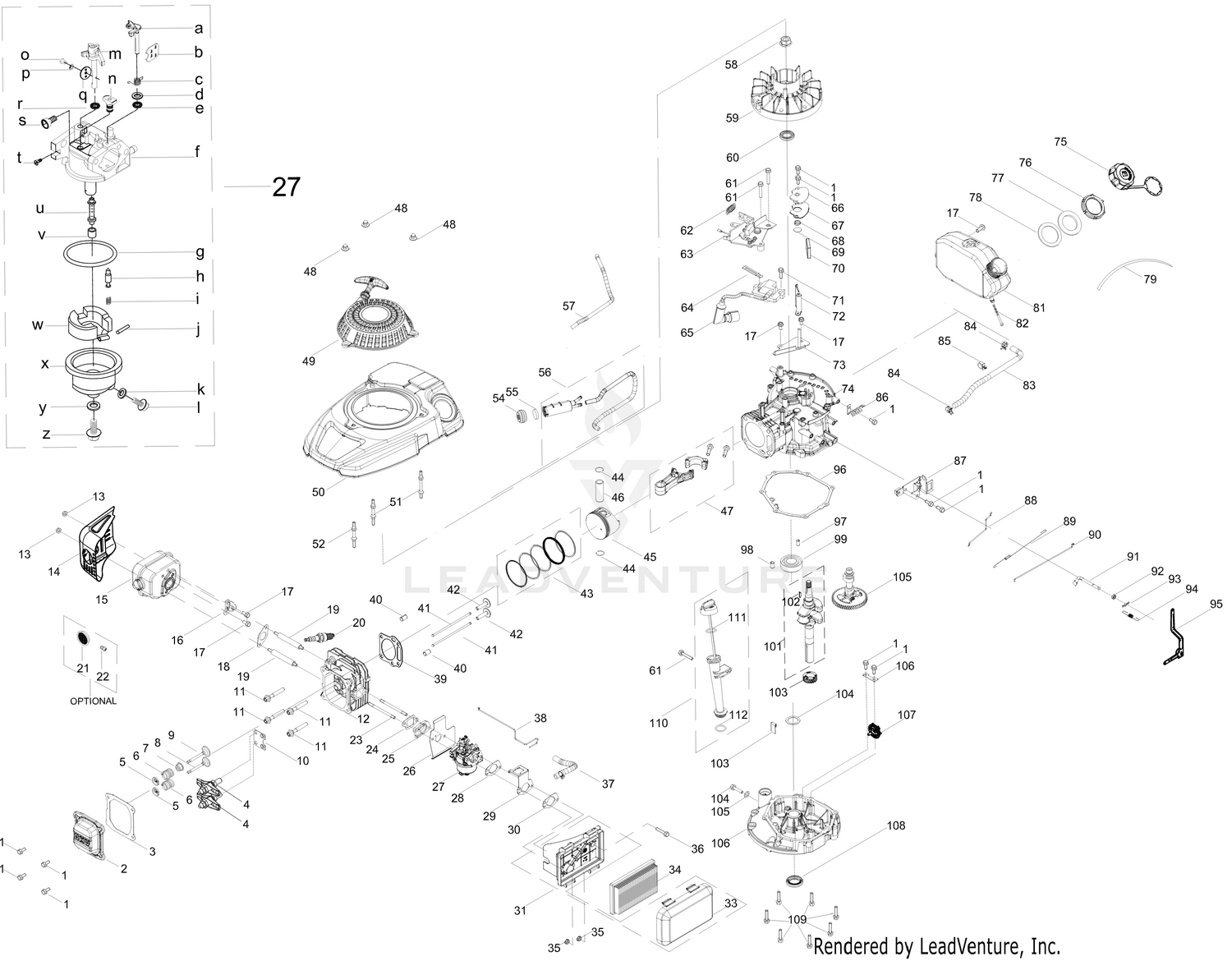

| Ref | Part Number | Description |
|---|
| Z |
710-04945 |
BOLT M8-1 x 10 Price: $3.66 |
| a |
None |
Choke Shaft |
| b |
None |
Choke Plate |
| c |
None |
Choke Return Spring |
| d |
None |
Choke Shaft Washer |
| e |
None |
Throttle/Choke Shaft Fiber O-Ring |
| f |
None |
Carburetor Body |
| g |
951-11589 |
FUEL BOWL O-RING Price: $6.04 |
| h |
793P00165A |
NEEDLE VALVE This part replaces 793P00165. Price: $4.13 |
| i |
732P05251A |
NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| j |
711-06043A |
FLOAT PIN This part replaces 711P06043. Price: $0.56 |
| k |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| l |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| m |
None |
Throttle Shaft |
| n |
None |
Idle Jet Assembly |
| o |
None |
Screw M3×6 Throttle Plate |
| p |
None |
Throttle Plate Lock Washer |
| q |
None |
Throttle Plate |
| r |
None |
Throttle/Choke Shaft Fiber O-Ring |
| s |
None |
Idle Speed Adjusting Screw |
| t |
None |
Idle Mixture Screw |
| u |
None |
Emulsion Tube |
| v |
None |
Main Jet |
| w |
731P09132A |
FLOAT Price: $4.45 |
| x |
908-05001 |
FLOAT BOWL Price: $7.16 |
| y |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| 1 |
710-04916 |
BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 |
951-14609A |
VALVE COVER This part replaces 951-14609. Price: $14.42 |
| 3 |
751P18586A |
VALVE COVER GASKET This part replaces 751-18586. Price: $3.94 |
| 4 |
951-11606A |
ROCKER ARM This part replaces 951-11606. Price: $29.12 |
| 5 |
951-11977 |
VALVE SPRING RETAINER Price: $3.60 |
| 6 |
751P12004A |
VALVE SPRING This part replaces 951-12004. Price: $1.74 |
| 7 |
921-04237A |
INTAKE VALVE SEAL This part replaces 921-04237. Price: $7.20 |
| 8 |
951-14641 |
EXHAUST VALVE Price: $8.71 |
| 9 |
951-14640A |
INTAKE VALVE This part replaces 951-14640. Price: $8.71 |
| 10 |
951-11687A |
PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 11 |
910-06185 |
BOLT-M8 x 54 Price: $5.88 |
| 12 |
951-14639 |
CYLINDER HEAD Price: $108.54 |
| 13 |
712-05015 |
HEX NUT Price: $5.78 |
| 14 |
951-15072 |
MUFFLER SHIELD Price: $22.38 |
| 15 |
951-14429A |
MUFFLER ASSEMBLY This part replaces 951-14429. Price: $55.88 |
| 16 |
951-14428A |
CHOKE TEMP CONTROL THERMOSTAT This part replaces 951-14428. Price: $36.29 |
| 17 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 18 |
951-14427A |
MUFFLER GASKET This part replaces 951-14427. Price: $6.38 |
| 19 |
710-05094 |
STUD M6-1 x 95 Price: $3.78 |
| 20 |
951-14437 |
SPARK PLUG Price: $7.34 |
| 21 |
951-10351A |
SPARK ARRESTOR This part replaces 951-10351. Price: $48.91 |
| 22 |
710-04983 |
SCREW M3.5 x 9.5 Price: $3.65 |
| 23 |
951-14425 |
CARBURETOR STUD-M6 x 87 Price: $6.18 |
| 24 |
751P18606A |
CARBURETOR INSULATOR GASKET This part replaces 751-18606. Price: $4.14 |
| 25 |
951-11738A |
CARBURETOR INSULATOR This part replaces 951-11738. Price: $4.60 |
| 26 |
951-14424 |
CARBURETOR GASKET Price: $9.35 |
| 27 |
951-14423 |
CARBURETOR ASSEMBLY Price: $97.75 |
| 28 |
721P05942A |
AIR FILTER BRACKET GASKET This part replaces 721-05942. Price: $5.20 |
| 29 |
951-14420A |
CHOKE TEMP CONTROL BRACKET This part replaces 951-14420. Price: $8.96 |
| 30 |
951-14419A |
AIR FILTER BASE GASKET This part replaces 951-14419. Price: $7.08 |
| 31 |
951-14631 |
AIR FILTER HOUSING ASSEMBLY Price: $16.11 |
| 33 |
931-10202 |
AIR FILTER COVER Price: $8.96 |
| 34 |
951-14632A |
AIR FILTER This part replaces 951-14632. Price: $14.83 |
| 35 |
712-05015 |
HEX NUT Price: $5.78 |
| 36 |
710-04969 |
BOLT-M6-1 x 30 GR8.8 Price: $3.66 |
| 37 |
951-11520 |
BREATHER HOSE Price: $5.48 |
| 38 |
951-14421A |
CHOKE TEMP CONTROL LINKAGE This part replaces 951-14421. Price: $7.10 |
| 39 |
751P18607A |
HEAD GASKET This part replaces 751-18607. Price: $4.14 |
| 40 |
715-04108 |
DOWEL PIN Price: $3.65 |
| 41 |
747P04862A |
PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 42 |
951-14432A |
TAPPET This part replaces 951-14432. Price: $7.49 |
| 43 |
951-14433A |
PISTON RING SET This part replaces 951-14433. Price: $34.45 |
| 44 |
951-11603 |
SNAP RING-PISTON PIN Price: $3.53 |
| 45 |
951-14434A |
PISTION This part replaces 951-14434. Price: $56.68 |
| 46 |
951-14435 |
PISTON PIN Price: $11.17 |
| 47 |
951-14436A |
CONNECTING ROD This part replaces 951-14436. Price: $61.10 |
| 48 |
712-04276A |
ACORN NUT M6-1 This part replaces 712-04276. Price: $5.38 |
| 49 |
951-05360A |
RECOIL STARTER ASSEMBLY This part replaces 951-05360. Price: $50.15 |
| 50 |
631P05655 |
BLOWER HOUSING This part replaces 631-05655. Price: $14.84 |
| 51 |
951-14397 |
STARTER/SHROUD REAR STUD Price: $8.66 |
| 52 |
951-14398 |
STARTER/SHROUD FRONT STUD Price: $8.66 |
| 54 |
951-14127 |
CARBON CANISTER FILTER CAP Price: $6.30 |
| 55 |
951-14400 |
CARBON CANISTER FILTER Price: $11.71 |
| 56 |
951-14629 |
CARBON CANISTER Price: $25.97 |
| 57 |
935-05046 |
CARBON CANISTER PURGE HOSE Price: $6.24 |
| 58 |
712-04287A |
FLYWHEEL NUT M14-1.5 This part replaces 712-04287. Price: $5.33 |
| 59 |
951-14401A |
FLYWHEEL This part replaces 951-14401. Price: $103.19 |
| 60 |
951-11596A |
UPPER CRANKSHAFT SEAL This part replaces 951-11596. Price: $5.44 |
| 61 |
710-04980 |
BOLT M6-1 x 35 GR8.8 Price: $3.42 |
| 62 |
932-04546 |
ENGINE BRAKE SPRING Price: $5.15 |
| 63 |
951-15543 |
ENGINE BRAKE ASSEMBLY Price: $34.47 |
| 64 |
951-11622A |
FLEXIBLE CLAMP This part replaces 951-11622. Price: $3.42 |
| 65 |
925-07281 |
IGNITION COIL Price: $43.06 |
| 66 |
951-14404 |
BREATHER COVER PLATE Price: $12.64 |
| 67 |
951-14405 |
BREATHER GASKET Price: $8.96 |
| 68 |
732-04718 |
BREATHER VALVE SPRING Price: $3.78 |
| 69 |
951-11614 |
BREATHER VALVE Price: $3.53 |
| 70 |
951-11730 |
BREATHER SCREEN Price: $4.75 |
| 71 |
710-04918 |
BOLT M6-1 x 20 GR8.8 Price: $3.56 |
| 72 |
951-11529A |
AIR VANE This part replaces 951-11529. Price: $6.25 |
| 73 |
951-14719 |
AIR VANE BRACKET Price: $7.35 |
| 74 |
751P18989 |
CRANKCASE This part replaces 751-18989. Price: $65.57 |
| 75 |
951-14407 |
FUEL CAP ASSEMBLY Price: $12.62 |
| 76 |
731-08104 |
FUEL TANK NUT Price: $6.38 |
| 77 |
951-14406A |
FUEL TANK GROMMET This part replaces 951-14406. Price: $9.68 |
| 78 |
731-08133 |
FUEL TANK LOWER GROMMET Price: $7.21 |
| 79 |
725-06031 |
CABLE TIE - 3 x 150 Price: $2.04 |
| 81 |
931-04629 |
FUEL TANK Price: $61.16 |
| 82 |
951-12296A |
FUEL FILTER This part replaces 951-12296. Price: $8.68 |
| 83 |
935-05047 |
FUEL HOSE Price: $13.42 |
| 84 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 85 |
723-04071A |
FUEL LINE SUPPORT CLAMP This part replaces 723-04071. Price: $2.77 |
| 86 |
951-11680 |
FLEXIBLE CLAMP Price: $3.61 |
| 87 |
951-15800 |
COMPONENT BRACKET Price: $5.15 |
| 88 |
951-14408 |
CHOKE LINKAGE Price: $5.68 |
| 89 |
951-14409 |
THROTTLE LINKAGE SPRING Price: $7.61 |
| 90 |
951-14410 |
THROTTLE LINKAGE Price: $7.21 |
| 91 |
951-11621 |
GOVERNOR ARM SHAFT Price: $8.68 |
| 92 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 93 |
714-04078 |
COTTER PIN Price: $3.66 |
| 94 |
951-14411 |
GOVERNOR SPRING Price: $8.34 |
| 95 |
951-05485 |
GOVERNOR ARM ASSEMBLY Price: $6.88 |
| 96 |
751P18609A |
CRANKCASE COVER GASKET This part replaces 751-18609. Price: $5.02 |
| 97 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 98 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 99 |
951-11369 |
BEARING Price: $30.42 |
| 101 |
751P18992 |
CRANKSHAFT This part replaces 751-18992. Price: $54.04 |
| 102 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 103 |
931-10288A |
GEAR This part replaces 931-10288. Price: $8.18 |
| 104 |
736-04491 |
THRUST WASHER Price: $3.78 |
| 105 |
951-11741 |
CAMSHAFT ASSEMBLY Price: $57.97 |
| 106 |
951-11609 |
GOVERNOR GEAR MOUNTING PLATE Price: $4.44 |
| 107 |
951-11549 |
GOVERNOR GEAR/SHAFT ASSEMBLY Price: $10.58 |
| 108 |
951-11545A |
LOWER CRANKSHAFT SEAL This part replaces 951-11545. Price: $9.07 |
| 109 |
710-04943 |
BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 110 |
951-05438 |
OIL DIPSTICK ASSEMBLY Price: $12.27 |
| 111 |
921-04795A |
O-RING This part replaces 921-04795. Price: $3.38 |
| 112 |
921-04697A |
O-RING This part replaces 921-04697. Price: $2.45 |
| 113 |
951-11733 |
OIL RETURN SEAL Price: $4.28 |
| 114 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 115 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 116 |
951-14418A |
CRANKCASE COVER This part replaces 951-14418. Price: $83.09 |
