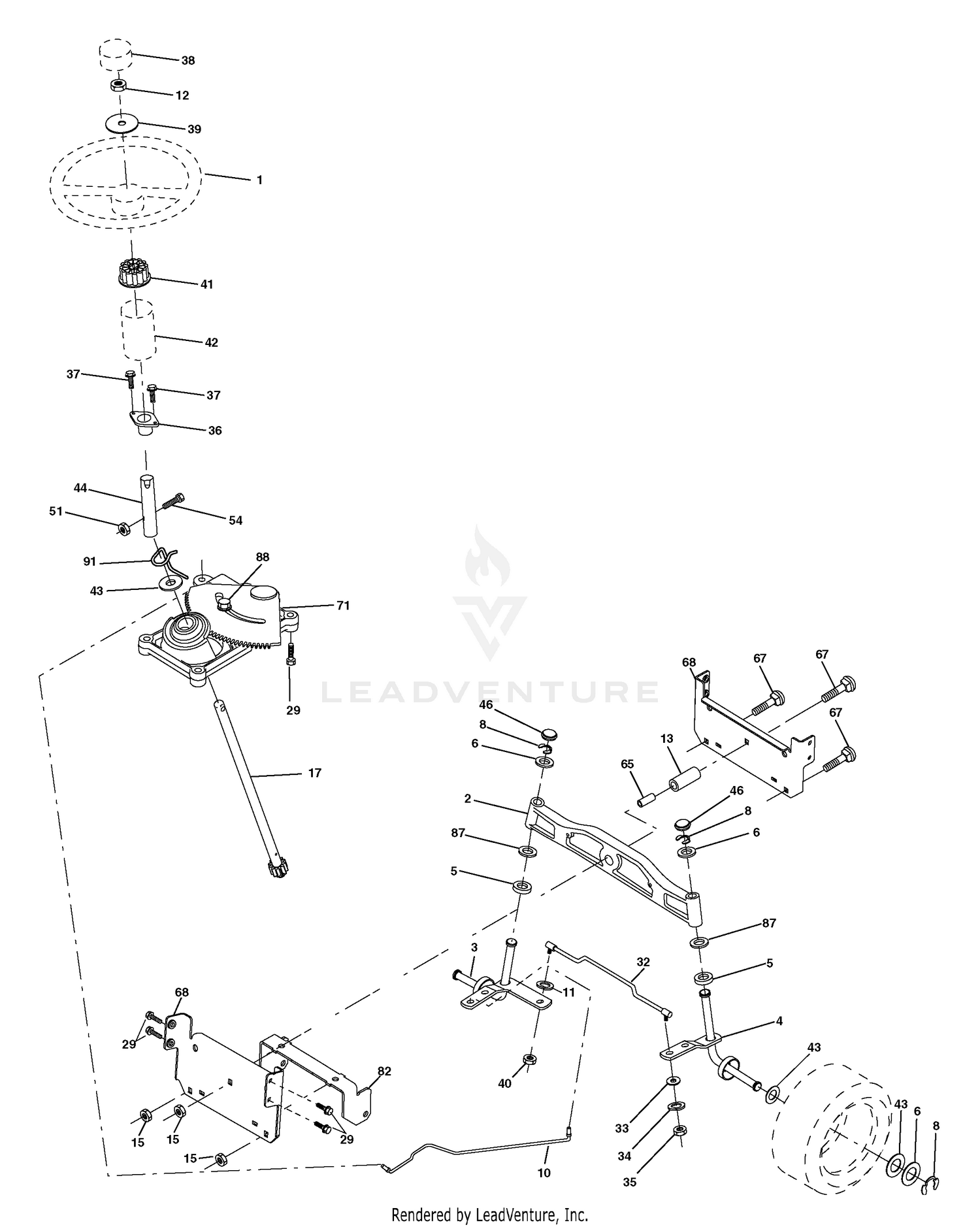

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 1 |
65-9940 |
SPRING Price: $4.01 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532172393. Price: $119.99 |
| 2 |
65-9930 |
CAP & PLUNGER ASM Price: $77.47 |
| 3 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
284-3 |
PLUG Price: $7.14 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 5 |
65-9670 |
SPRING-COMPRESSION Price: $6.77 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 6 |
65-9580 |
SPRING Price: $2.76 |
| 7 |
65-9560 |
ADJUSTMENT KNOB ASM Price: $190.35 |
| 8 |
2410-68 |
COVER-PIN Price: $0.38 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 10 |
65-9550 |
CAP Price: $28.33 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 11 |
65-9830 |
RAMP-QUICK UP Price: $128.27 |
| 12 |
70-7470 |
MTG BLOCK (MODIFIED) Price: $92.44 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
3290-271 |
RIVET-POP Price: $0.25 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
94-6346 |
PLATE - CAUTION This part replaces 65-9950. Price: $12.27 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 15 |
65-9810 |
SPRING-ADJUSTMENT Price: $11.26 |
| 16 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 17 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 17 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180641. Price: $59.99 |
| 18 |
65-9860 |
BEARING Price: $7.60 |
| 19 |
65-9820 |
SPACER Price: $2.09 |
| 20 |
65-9330 |
SPACER Price: $2.58 |
| 21 |
251-328 |
BEARING-BALL Price: $14.66 |
| 24 |
65-9350 |
ADAPTER Price: $183.35 |
| 26 |
3289-19 |
SCREW-FH Price: $1.42 |
| 27 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 28 |
3274-13 |
SCREW-HSH Price: $3.19 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 30 |
65-9710 |
BELT COVER Price: $166.13 |
| 31 |
65-9890 |
BOLT-CARR.MOD. Price: $66.84 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 32 |
65-9340 |
BOLT-SHOULDER Price: $10.02 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 33 |
65-9320 |
IDLER Price: $33.55 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 34 |
65-9980 |
SPACER Price: $13.03 |
| 35 |
65-9700 |
BELT-DRIVE Price: $15.96 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 36 |
65-9290 |
PULLEY-DRIVEN Price: $251.33 |
| 37 |
3274-22 |
SCREW-HSH Price: $0.68 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
65-9310 |
DISCONTINUED Price: Call Us |
| 39 |
819182411 |
Washer 9/16 ID x 1-1/2 OD x 11 Ga. Price: $4.99 |
| 40 |
251-327 |
BEARING-BALL Price: $21.22 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 41 |
65-9270 |
DISCONTINUED Price: Call Us |
| 42 |
32120-18 |
E-RING Price: $0.97 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180640. Price: $59.99 |
| 44 |
92-3046 |
SPACER This part replaces 65-9300. Price: $36.62 |
| 45 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 46 |
3274-86 |
SCREW-HSH Price: $1.76 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 51 |
873540400 |
NUT.CROWNLOCK.1/4-28 Price: $4.99 |
| 54 |
871130420 |
Bolt Hex 1/4-28 UNF x 1-1/4 Gr. 8 Price: $4.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
