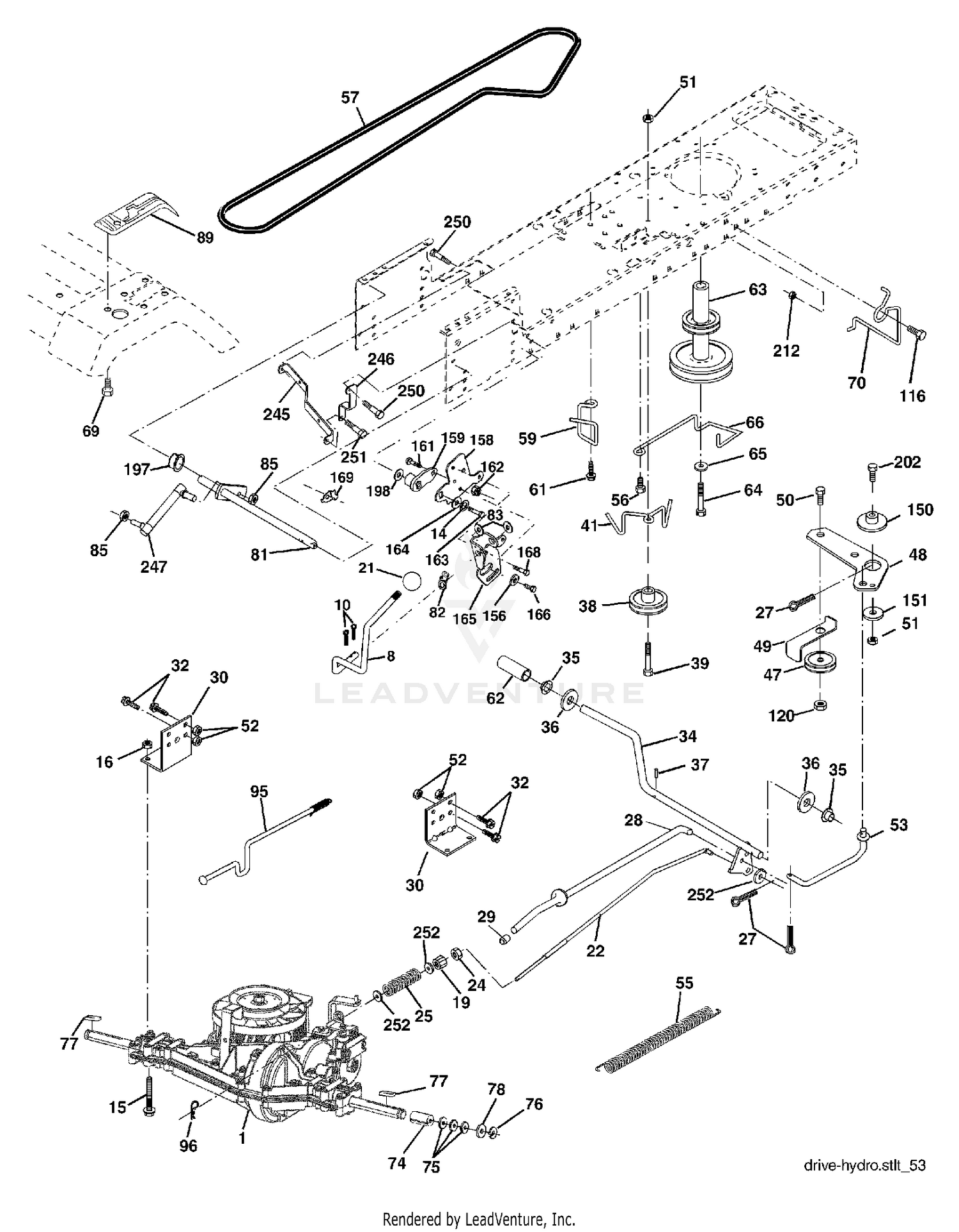

| Ref | Part Number | Description |
|---|
| 2 |
117-5115 |
HUB AND BEARING ASM Price: $163.75 |
| 3 |
117-8259 |
WASHER-SPINDLE Price: $2.71 |
| 4 |
117-8260 |
NUT Price: $19.27 |
| 5 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 8 |
532165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: $17.99 |
| 14 |
810040400 |
LOCKWASHER Price: $3.99 |
| 15 |
874490544 |
BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 21 |
532106933 |
KNOB T (1/2-HOLE) Price: $3.99 |
| 22 |
532178141 |
ROD.BRAKE Price: $17.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $3.99 |
| 29 |
532071673 |
PLUNGER CAP Price: $3.99 |
| 30 |
532130807 |
Bracket Transmission (AYP part number) This part replaces 532174973. Price: $3.99 |
| 32 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $19.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 36 |
819211616 |
WASHER LT Price: $3.99 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) Price: $3.99 |
| 38 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
| 39 |
874780648 |
BOLT.HEX.FIN.3/8-16 X 3.GR5 This part replaces 874760648. Price: $1.99 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $5.99 |
| 47 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $4.99 |
| 49 |
532123205 |
RETAIN BELT Price: $3.99 |
| 50 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 57 |
532178138 |
V-BELT DRIVE Price: $39.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER Price: $14.99 |
| 61 |
817490614 |
Screw Hex Thdrol. 3/8-16 x 7/8 (AYP part number) This part replaces 817120614. Price: Call Us |
| 62 |
532008883 |
PEDAL COVER Price: $3.99 |
| 63 |
532175410 |
ENGINE PULLEY Price: $54.99 |
| 64 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 66 |
532154778 |
KEEPER BELT ENGINE Price: $8.99 |
| 69 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 70 |
532134683 |
KEEPER BELT ENG Price: $5.99 |
| 74 |
532137057 |
SPACER AXLE Price: $3.99 |
| 75 |
532121749 |
WASHER Price: $1.99 |
| 77 |
532123583 |
SQUARE KEY Price: $2.99 |
| 78 |
532121748 |
WASHER Price: $1.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $2.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 85 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 532150360. Price: $2.99 |
| 89 |
532169373 |
Price: Call Us |
| 95 |
532178134 |
DISCONNECT.ASM.ROD.BYPASS Price: $29.99 |
| 96 |
532004497 |
RETAINER M Price: $5.99 |
| 116 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 120 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $3.99 |
| 151 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 156 |
532166002 |
WASHER.SRRTD.5/16 Price: $3.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $3.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $4.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $2.99 |
| 162 |
873680400 |
NUT.CROWNLOCK.1/4 Price: $2.99 |
| 163 |
874780416 |
BOLT Price: $3.99 |
| 164 |
819091010 |
Price: Call Us |
| 165 |
532438250 |
BRACKET.PIVOT.LEVER This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $3.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $3.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $3.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $4.99 |
| 202 |
872110614 |
BOLT Price: $3.99 |
| 212 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.99 |
| 245 |
532178122 |
STRAP, TORQUE Price: $17.99 |
| 246 |
532178121 |
STRAP, TORQUE Price: $12.99 |
| 250 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $2.99 |
| 251 |
817060516 |
SCREW 5/16-18X1 Price: $3.99 |
