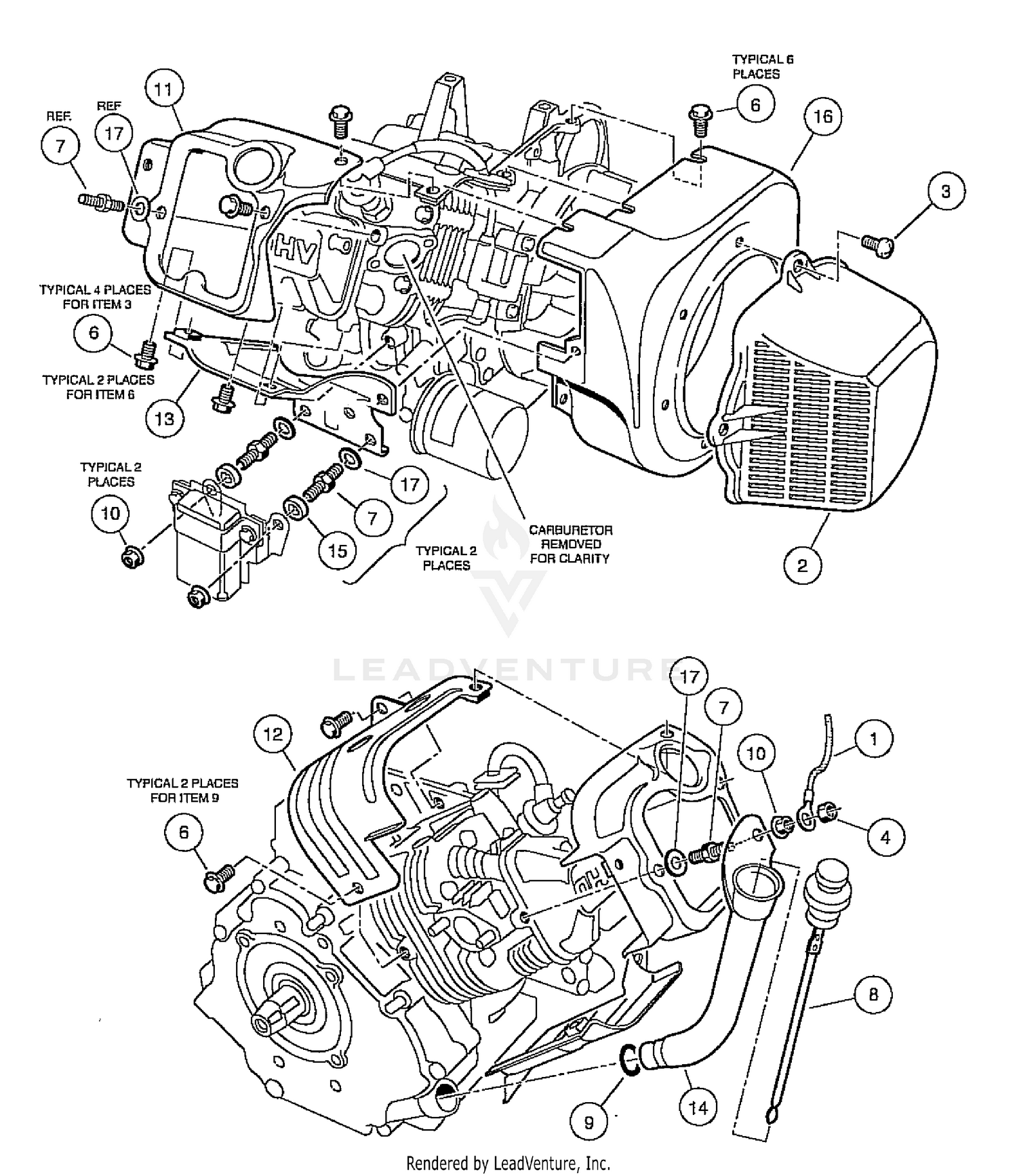

| Ref | Part Number | Description |
|---|
| 1 |
321-3 |
SCREW-HH Price: $0.28 |
| 1 |
603000247 |
WIRE ASM Price: $14.99 |
| 2 |
2412-106 |
CLAMP-R Price: $2.04 |
| 2 |
603000265 |
SHROUD, FAN Price: $64.99 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
603000274 |
SCREW, M6-1.00 X 10MM PAN HD Price: $1.99 |
| 4 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
603000558 |
LOCKNUT, M6-1.00 NYLON INSERT Price: $1.99 |
| 6 |
58-6680 |
TEST PORTS DECAL Price: $15.20 |
| 6 |
603000309 |
BOLT, FLANGED Price: $4.99 |
| 6 |
93-9401 |
DISCONTINUED Price: Call Us |
| 7 |
603000328 |
BOLT Price: $6.99 |
| 7 |
92-9273-03 |
CONSOLE-CENTER This part replaces 92-9273. Price: $4,636.98 |
| 8 |
353-947 |
CAP-DUST, RUBBER Price: $7.73 |
| 8 |
603000333 |
DIPSTICK Price: $59.99 |
| 9 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 9 |
603000337 |
O-RING Price: $2.99 |
| 10 |
237-42 |
O-RING Price: $2.78 |
| 10 |
603000341 |
NUT Price: $9.99 |
| 11 |
58-6580 |
DIAGNOSTIC FITTING Price: $53.31 |
| 11 |
603000414 |
SHROUD ENGINE Price: $49.99 |
| 12 |
33113-016 |
SCREW-HH This part replaces 48-7620. Price: $0.34 |
| 12 |
603000415 |
SHROUD - ENGINE Price: $32.99 |
| 13 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 13 |
603000416 |
SHROUD ENGINE Price: $29.99 |
| 14 |
603000417 |
OIL FILLER TUBE Price: $84.99 |
| 15 |
603000420 |
SPACER 6.50 X 12 X 5.5 Price: $4.99 |
| 15 |
68-6150 |
BREATHER Price: $27.22 |
| 16 |
92-4751 |
DISCONTINUED Price: Call Us |
| 17 |
237-65 |
O-RING Price: $2.50 |
| 20 |
59-7290 |
DISCONTINUED Price: Call Us |
| 20 |
93-9406 |
DECAL-GLASS, SIGHT Price: $28.02 |
| 21 |
58-5940 |
PLUG-GAGE, SIGHT Price: $184.36 |
| 22 |
48-6900 |
SCREW Price: $1.52 |
| 23 |
92-5682 |
STRIP-SEALING Price: $20.71 |
| 25 |
58-0980-01 |
MUDGUARD-LH This part replaces 58-0980. Price: $432.91 |
| 26 |
62-6290 |
DECAL - LIFT LEVER Price: $4.96 |
| 26 |
93-9407 |
DECAL-LEVER, LIFT Price: $17.21 |
| 27 |
237-21 |
O-RING Price: $0.70 |
| 28 |
3220-11 |
NUT-JAM Price: $0.81 |
| 32 |
58-6540 |
OPERATION WARNING DECAL Price: $19.91 |
| 32 |
93-9408 |
DECAL-OPERATION WARNING Price: $73.30 |
| 33 |
68-7840 |
STRIP-SEALING Price: $19.08 |
| 34 |
111-5088-03 |
JOINT-BALL, STEERING CYLINDER This part replaces 92-4725. Price: $198.95 |
| 35 |
92-5694 |
HOSE-HYDRAULIC Price: $92.15 |
| 36 |
237-79 |
O-RING Price: $5.46 |
| 37 |
58-1750-03 |
PANEL-ACCESS This part replaces 58-1750. Price: $270.79 |
| 38 |
92-4746-01 |
MUDGUARD-RH This part replaces 92-4746. Price: $452.39 |
| 39 |
237-22 |
O-RING Price: $2.43 |
| 40 |
60-2020 |
HEAT SHIELD Price: $31.34 |
| 42 |
92-4799 |
FITTING-TEE, HYD Price: $159.71 |
| 43 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 44 |
48-7890 |
NUT-HEX Price: $0.25 |
| 45 |
321-24 |
SCREW-HH Price: $2.31 |
| 46 |
237-80 |
O-RING Price: $6.10 |
| 47 |
58-9160 |
PLUG-DRAIN Price: $23.70 |
| 48 |
68-7810 |
PANEL-LINING Price: $140.77 |
| 49 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 50 |
48-7120 |
ELEMENT-SUCTION Price: $153.05 |
| 51 |
92-5699 |
DECAL-4WD, LH Price: $18.56 |
| 52 |
93-9425 |
DECAL-DANGER Price: $28.20 |
| 52 |
93-9426 |
DECAL-DANGER Price: $7.18 |
| 53 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 54 |
3256-3 |
WASHER-FLAT Price: $0.49 |
