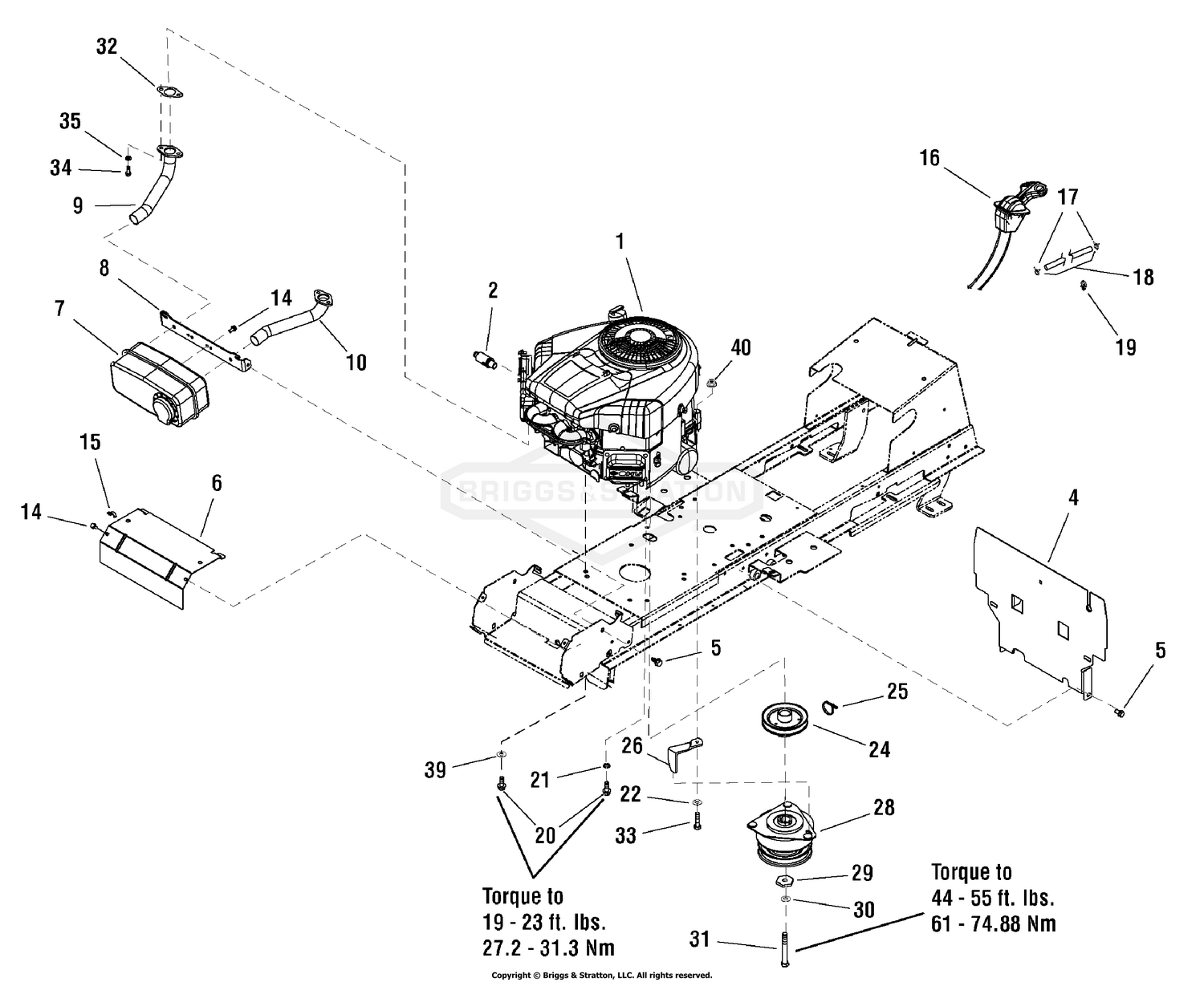

| Ref | Part Number | Description |
|---|
| 2 |
1750159YP |
VALVE, Shut Off Oil Drain This part replaces 1717473. Price: $14.06 |
| 4 |
1735962 |
HEAT SHIELD Price: Call Us |
| 5 |
703949 |
SCREW, 5/16-18.625 This part replaces 1930601. Price: $3.40 |
| 6 |
1727997ASM |
SHIELD, Heat This part replaces 1727997. Price: $31.17 |
| 7 |
1727994SM |
MUFFLER This part replaces 1727994. Price: $88.83 |
| 8 |
1727976BMYP |
SUPPORT, Muffler This part replaces 1727976. Price: $13.26 |
| 9 |
1727980SM |
PIPE, Exhaust L.H. This part replaces 1727980. Price: $34.58 |
| 10 |
1727979SM |
PIPE, Exhaust R.H. This part replaces 1727979. Price: $34.58 |
| 14 |
704130 |
SCREW, HEX, 1/4-20X.5 This part replaces 1925003. Price: $3.28 |
| 15 |
703176 |
CLIP, Wire This part replaces 2834683. Price: $2.66 |
| 16 |
1734505SM |
CONTROL, Throttle This part replaces 1734505. Price: $90.73 |
| 17 |
1735883 |
CLAMP, Hose UM5008 Price: Call Us |
| 18 |
1735913 |
HOSE, Fuel 1-9920-247 Price: Call Us |
| 19 |
1730268SM |
CLIP, Hose This part replaces 1730268. Price: $3.37 |
| 20 |
704000 |
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 This part replaces 2827187. Price: $4.49 |
| 21 |
703864 |
WASHER, EXT, 3/8 This part replaces 2820427. Price: $3.82 |
| 22 |
703878 |
WASHER, FLAT This part replaces 1924940. Price: $3.40 |
| 24 |
1732576SM |
PULLEY & HUB ASSEMBLY, Engine This part replaces 1732576. Price: $39.11 |
| 25 |
1735980 |
TIE Price: Call Us |
| 26 |
1737421AYP |
GUIDE, Belt This part replaces 1732875. Price: $11.34 |
| 28 |
1687296SM |
CLUTCH, Electric This part replaces 1732833. Price: $312.97 |
| 29 |
1708264SM |
WASHER, HEX, 0.453ID This part replaces 1708264. Price: $7.67 |
| 30 |
704007 |
LCKWSHR,7/16,SPLIT RE This part replaces 1918199. Price: $3.94 |
| 31 |
1960649SM |
CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5 This part replaces 1960649. Price: $6.68 |
| 32 |
690970 |
GASKET, Exhaust This part replaces 1731214. Price: $4.13 |
| 33 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 2828635. Price: $4.26 |
| 34 |
1936228SM |
CAPSCREW, 5/16-18 x 3/4, G8 This part replaces 1936228. Price: $3.73 |
| 35 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 1917356. Price: $3.51 |
| 39 |
1736999 |
WASHER, 8.4 Price: Call Us |
