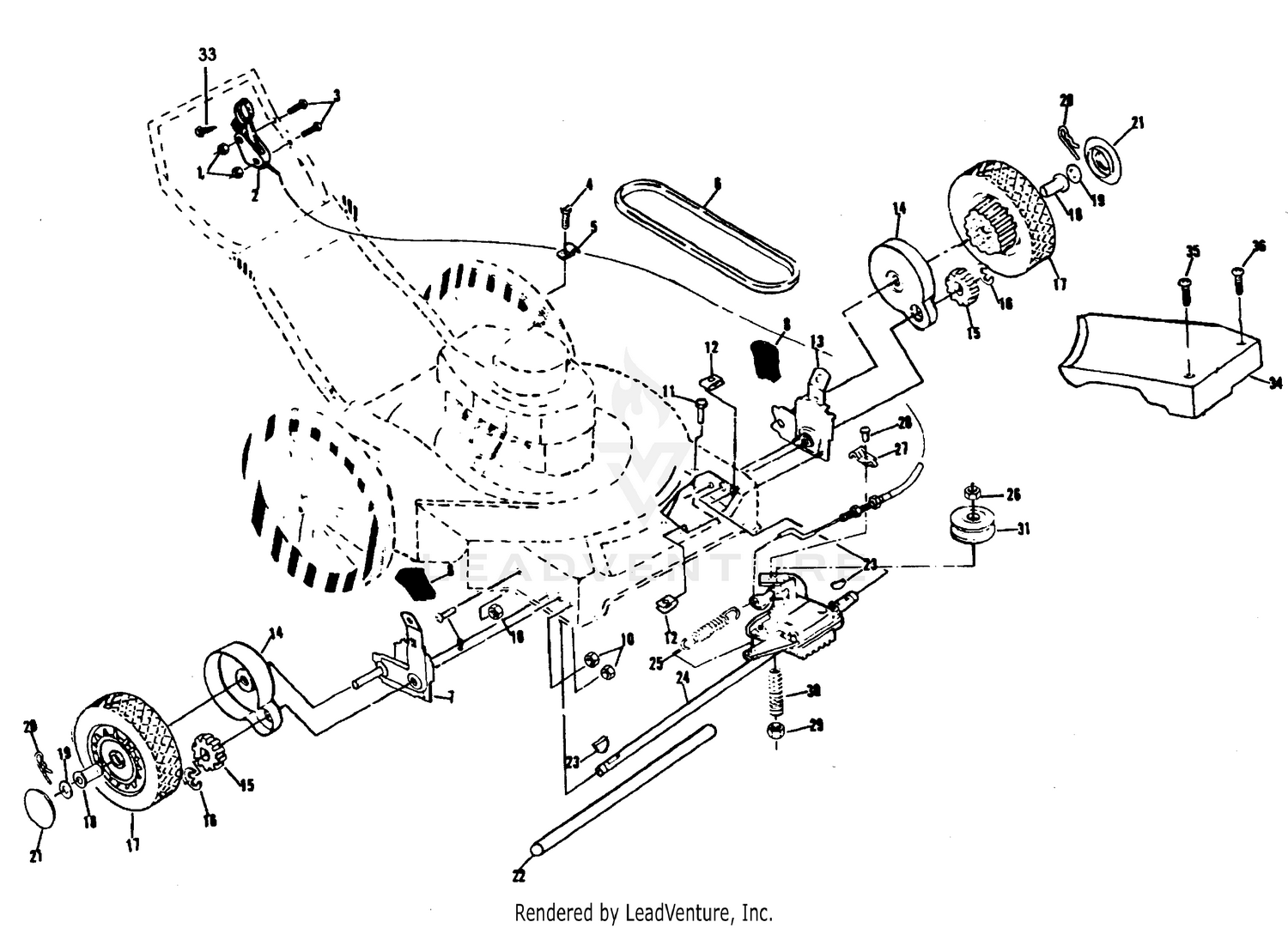

| Ref | Part Number | Description |
|---|
| 1 |
110-5516-03 |
PLATE-SKID Price: $116.71 |
| 1 |
532074189 |
Locknut 10-24 (AYP part number) Price: $2.42 |
| 2 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 2 |
532133049 |
Drive Control (AYP part number) Price: $3.33 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
532078186 |
Pan Head Machine Screw 10-24 x 2 (AYP part number) Price: $3.99 |
| 4 |
112-9581 |
SEAL-BULB Price: $16.07 |
| 4 |
817021008 |
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) This part replaces 532750097. Price: $1.99 |
| 5 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 5 |
532087930 |
Guide Clip (Housing) (AYP part number) Price: $5.99 |
| 6 |
107-3908 |
GUIDE-ROPE, UPPER Price: $2.72 |
| 6 |
532083691 |
V-Belt Price: $14.99 |
| 7 |
532851031 |
Wheel Adjuster Assembly (Right) (AYP part number) Price: $3.33 |
| 7 |
85-0290 |
SPACER-PIVOT, SEAT Price: $7.26 |
| 8 |
104-7201 |
NUT-HF Price: $0.69 |
| 8 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $2.99 |
| 9 |
114-4043 |
DECAL-INSTRUCTIONS, SERVICE Price: $62.73 |
| 9 |
874100412 |
Flat Head Machine Screw 1/4-20 x 3/4 (AYP part number) Price: $2.99 |
| 10 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 532063601. Price: $1.99 |
| 11 |
874760444 |
Hex Head Bolt 1/4-20 x 2-3/4 (AYP part number) Price: $2.99 |
| 12 |
532075449 |
Speed Nut (AYP part number) Price: $3.99 |
| 13 |
532851032 |
Wheel Adjuster Assembly (Left) (AYP part number) Price: $3.33 |
| 14 |
532076401 |
Dust Cover (AYP part number) Price: $3.18 |
| 15 |
532074507 |
Pinion (AYP part number) Price: $2.99 |
| 16 |
812000003 |
E-Ring Price: $3.99 |
| 17 |
532134613 |
Wheel & Tire Assembly 8.0 x 1-3/4 Price: $3.33 |
| 18 |
532086960 |
Wheel Bushing (AYP part number) Price: $3.99 |
| 19 |
532052160 |
Washer (AYP part number) Price: $3.99 |
| 20 |
532085179 |
Retainer Clip (AYP part number) Price: $3.99 |
| 21 |
532077400 |
Hubcap (AYP part number) Price: $3.99 |
| 22 |
532086012 |
Drive Shaft Cover (AYP part number) Price: $5.46 |
| 23 |
532065692 |
Woodruff Key #3 (AYP part number) Price: $2.99 |
| 24 |
532048282 |
Gear Case (AYP part number) Price: $3.33 |
| 25 |
532075192 |
Spring Price: $3.99 |
| 26 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $2.99 |
| 27 |
532083700 |
Cable Clamp (Adj. Bracket) (AYP part number) Price: $5.99 |
| 28 |
532750108 |
Pan Head Self Tapping Screw #10-24 (AYP part number) Price: $2.99 |
| 29 |
873850400 |
This part replaces 532068038. Price: Call Us |
| 30 |
532137090 |
Spring (AYP part number) This part replaces 532083632. Price: $3.99 |
| 31 |
532131482 |
Drive Pulley (AYP part number) Price: $3.99 |
| 33 |
532851552 |
Screw, Pan Head, Hi-Lo 10-16 x .63 (AYP part number) Price: $2.99 |
| 34 |
532133391 |
Drive Cover (AYP part number) Price: $3.33 |
| 35 |
874981028 |
Pan Head Machine Screw #10-24 x 1-3/4 (AYP part number) Price: Call Us |
| 36 |
532075725 |
Pan Head Machine Screw #10-24 x 2 3/4 (AYP part number) Price: $2.99 |
